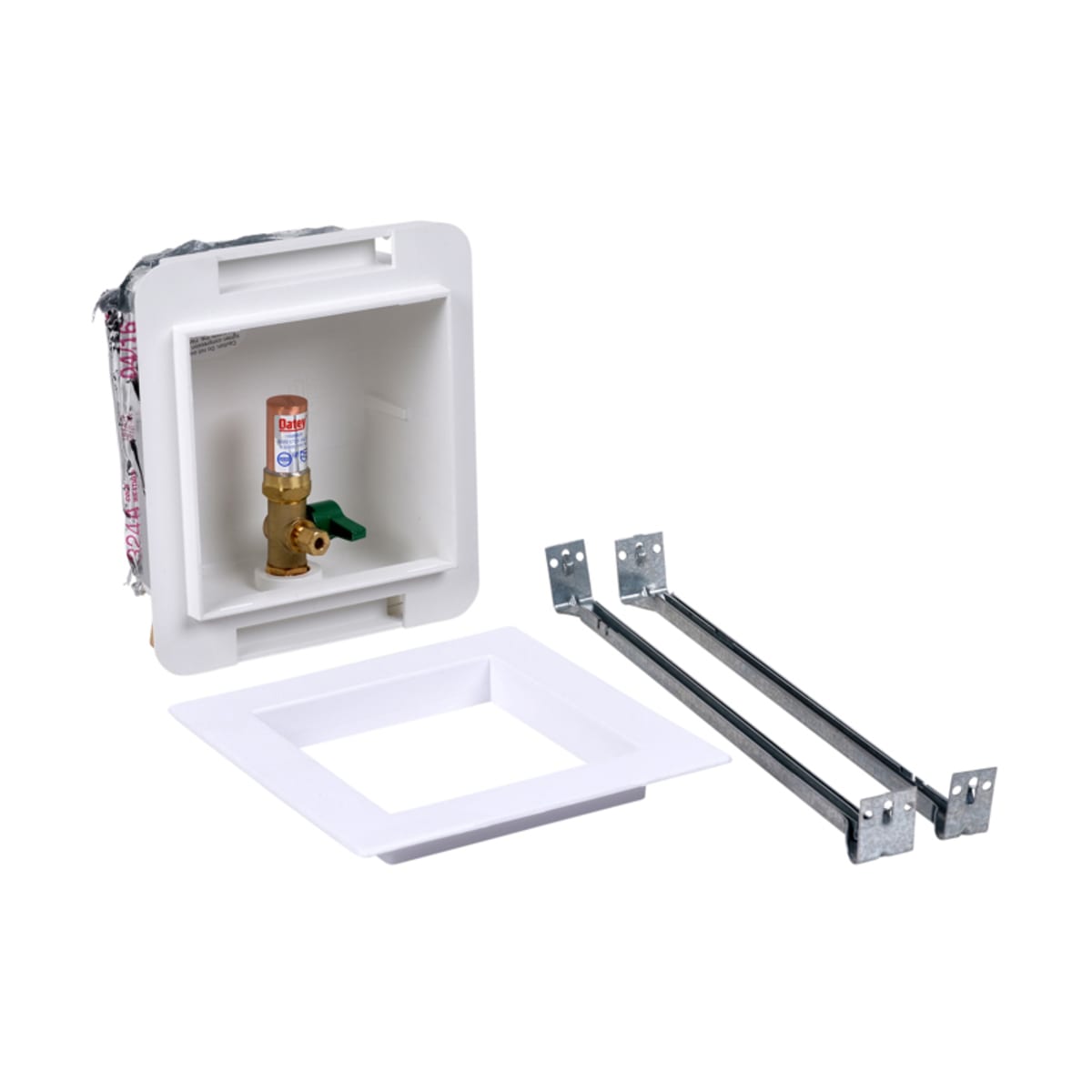

Oatey 39120 Quarter-Turn F1960 PEX Ice Maker Supply Box

Product Description

The Oatey Quarter-Turn F1960 PEX Ice Maker Supply Box, MPN 39120, is designed for efficient water supply to ice makers. This product includes a quarter-turn low-lead brass ball valve and connects seamlessly to a PEX supply line using an F2159 connection. The fire-rated ice maker outlet box dimensions are five and nine-tenths inches wide, five and four-fifths inches high, and three and three-quarters inches deep.

• Includes adjustable metal mounting brackets.
• Accommodates up to two layers of five-eighths inch gypsum.
• Warnock Hersey certified for one-hour and two-hour fire-rated walls.

Product Highlights

This ice maker supply box can accommodate one hammer arrestor, sold separately, helping to reduce noise and protect pipes.

Product Information

Standard Information

• Brand: Oatey
• MPN: 39120

Technical Specifications

• Box Dimensions: 5-9/10 inches W x 5-4/5 inches H x 3-3/4 inches D
• Faceplate Dimensions: 8-1/8 inches W x 8-1/16 inches H
• Material: Bulk Molding Compound (BMC)
• Connection Type: PEX
• Includes: ¼ turn low-lead brass ball valve
• Certification: Warnock Hersey
• Adjustable Mounting Brackets: Yes
• Fire Rating: One-hour and two-hour fire-rated walls
