Oatey 39119 Ice Maker Outlet Box 1/2 PEX 5-9/10 x 3-3/4 x 5-4/5

Product Description

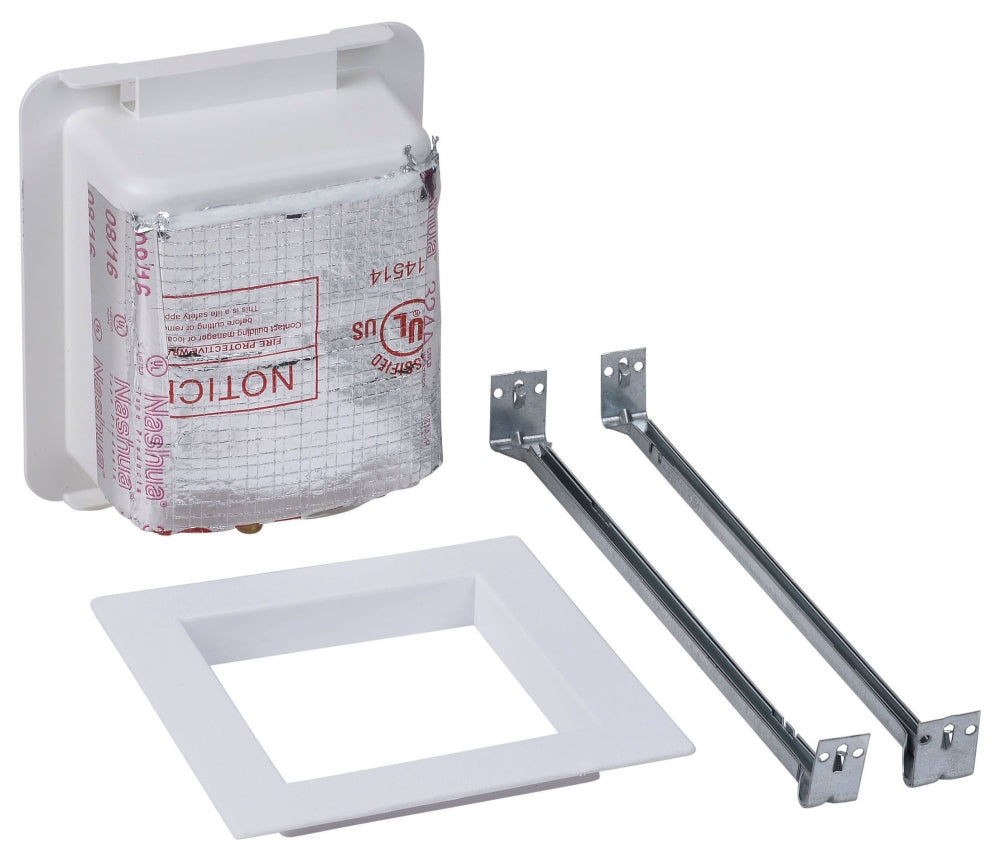

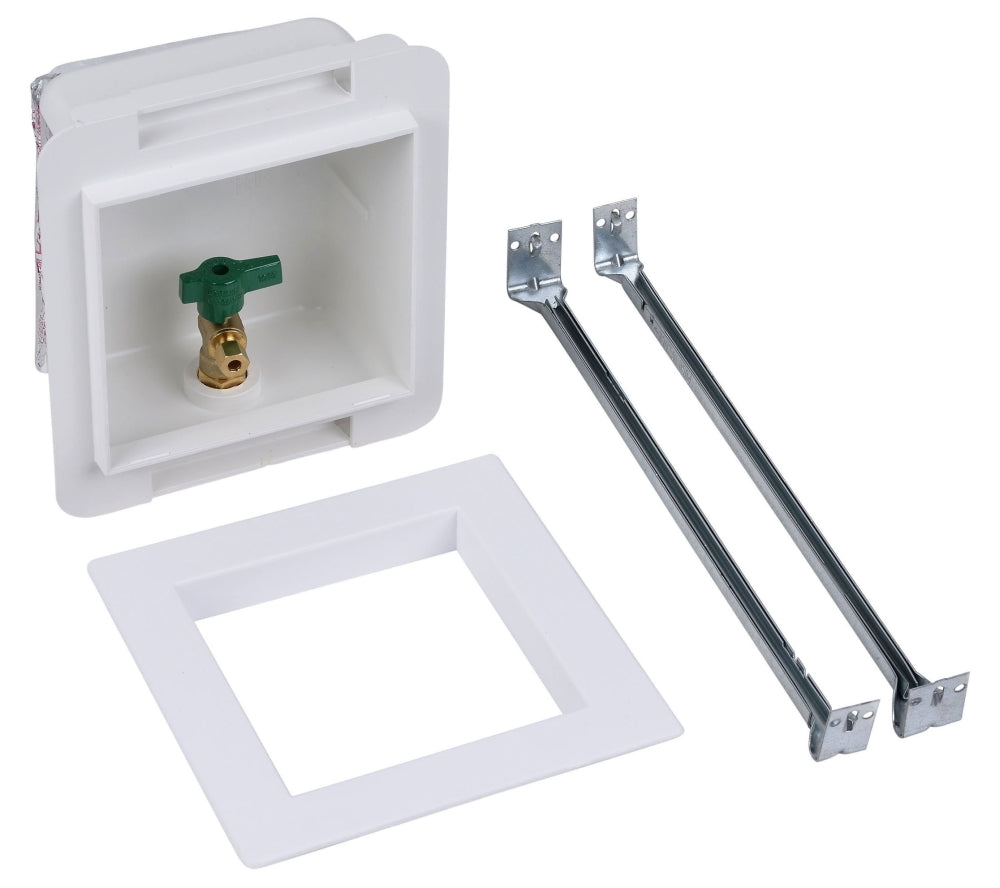

The Oatey 39119 Ice Maker Outlet Box is designed for use with a 1/2 inch PEX pipe connection. This box measures five and nine-tenths inches in width, three and three-fourths inches in depth, and five and four-fifths inches in height. The faceplate is eight and one-eighth inches wide and eight and one-sixteenth inches high. It is constructed from thermoset fire-rated plastic, making it suitable for fire-rated wall applications.

• Includes a 1/4 turn brass ball valve.
• Water hammer arrestor included.
• Adjustable metal mounting bracket for easy installation.

Product Highlights

This outlet box is compliant with CUPC, UPC, Warnock Hersey, ASSE 1010, and ASTM F1807 standards.

Product Information

Standard Information

• Product ID: 45551
• UPC: 038753391199

Technical Specifications

• Applicable Standard: CUPC, UPC, Warnock Hersey (Canada and US), ASSE 1010, ASTM F1807
• Box Size: 5-9/10 inches width x 3-3/4 inches depth x 5-4/5 inches height
• Face Plate Size: 8-1/8 inches width x 8-1/16 inches height
• Material: Thermoset Fire Rated Plastic
• Pipe Connection: 1/2 inch PEX
• Valve Details: 1/4 Turn Brass Ball Valve
• Valve Supplied: Yes
• Inclusions/Features: Water Hammer Arrestor, Galvanized Steel Adjustable Metal Mounting Bracket
