Oatey 38945 Washing Machine Outlet Box 1/4 Turn Pex

Product Description

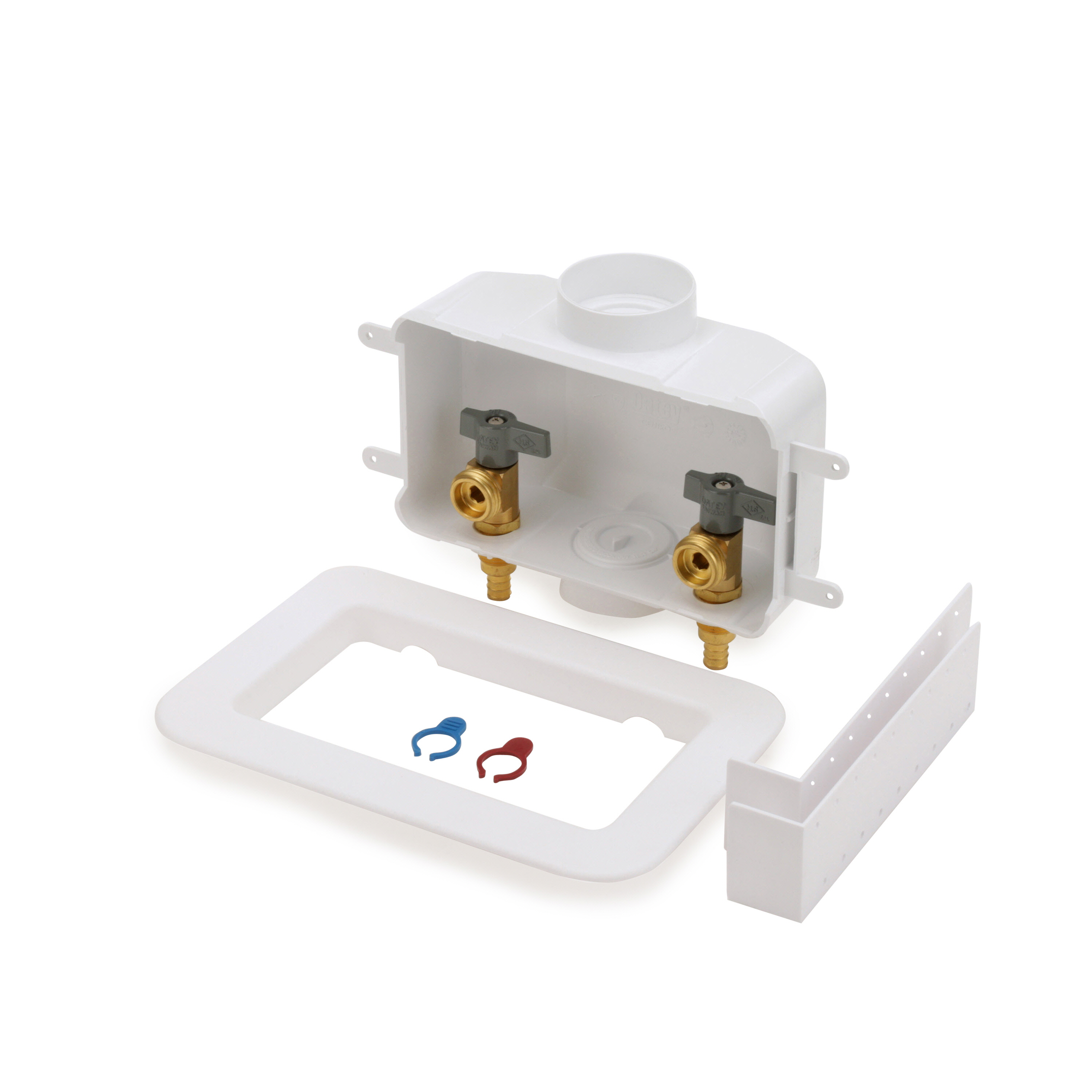

The OATEY 38945 is a Centro II washing machine outlet box designed for PEX supply lines using F1807 crimp connections and 1/4-turn shutoff valves. Built from durable PVC, it provides a recessed in-wall mounting point for hot and cold supply lines and a drain connection at the washing machine installation location. The compact profile fits in standard stud bays with minimal wall depth required. Licensed plumbers install this box during rough-in or remodel work in both residential and light commercial laundry applications. The 1/4-turn valve design allows fast shutoff without multiple rotations.

The 38945 is suited for new construction and remodel installations where PEX F1807 supply lines are run to a washing machine location. The box can be mounted with the valves oriented at the top or bottom, offering flexibility in tight or awkward framing conditions. It is appropriate for residential laundry rooms, multi-family units, and light commercial laundry setups where a clean, code-compliant washing machine connection point is required.

Key Features

• F1807 PEX crimp connections for hot and cold supply lines
• 1/4-turn shutoff valves for quick, reliable water isolation
• Reversible mounting — valves can be positioned at top or bottom
• Durable PVC construction resists corrosion and moisture
• Compact Centro II profile fits standard stud bays with minimal wall depth

Compatibility

Designed as an OEM-style replacement washing machine outlet box for residential and commercial PEX F1807 plumbing systems. This part supersedes previous versions of the 38945 PEX washing machine outlet box with 1/4-turn valves.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the main water supply and depressurize the lines before beginning work. Use proper F1807 crimp tooling and go/no-go gauges to verify crimp ring connections before closing the wall. Confirm local code requirements for box blocking, backer material, and drain outlet sizing before rough-in.

Technical Specifications

• Connection Type: F1807 PEX Crimp
• Valve Type: 1/4 Turn
• Material: PVC
• UPC: 038753381046

Standard Information

• Brand: OATEY
• Manufacturer Part Number: 38945
