Oatey 38880 Washing Machine Valve, 3/4 in, PEX 1960

Product Description

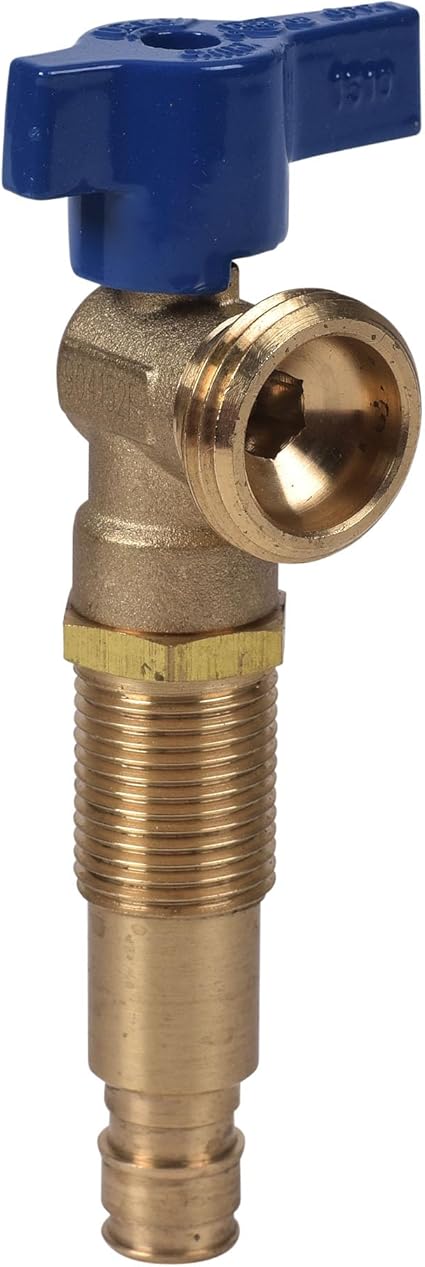

The OATEY 38880 washing machine valve features a quarter turn style with a 3/4 inch pipe size and PEX 1960 connection. Designed for use in commercial or residential applications requiring twist-connect supply valves. It has a maximum pressure of 100 psi and a maximum temperature of 200 degrees F.

• Quarter turn style valve.
• Features a 3/4 inch pipe size.
• Maximum pressure of 100 psi.

Product Highlights

This Oatey washing machine valve is suitable for commercial or residential applications. It allows for right or left hand drain installation with patented twist-connect valve mounting.

Product Information

Standard Information

• Brand: OATEY
• Manufacturer Part Number: 38880
• Country of Origin: China

Technical Specifications

• Item: Washing Machine Valve
• Style: Quarter Turn
• Pipe Size: 3/4 in
• Connection: PEX 1960
• Max. Temp.: 200 Degrees F
• Open Height: 4 in
• Handle Color: Blue
• Product Type: Washing Machine Valve
• Body Material: Brass
• Max. Pressure: 100 psi
• Handle Material: Alloy
• Material: Brass
• Brand: Oatey
• Exterior Finish: Brass
• Inlet Connection Size: 0.75 Inches
• Inlet Connection Type: Cross Linked Polyethylene
• Outlet Connection Type: PEX
• Maximum Operating Pressure: 100 Pound per Square Inch
• Number of Ports: 2
• Outlet Connection Size: 0.75 Inches
• Specification Met: NSF
• Manufacturer: oatey
• Part Number: 38880
• Item model number: 38880
• Size: Medium
• Item Package Quantity: 1
• Batteries Required?: No
• Actuator Type: Lever Operated
• End Style: PEX
• Nominal Size: 3/4 in
• Pressure Rating: 100 psi
• Temperature Rating: 200 deg F
• Type: Quarter Turn
