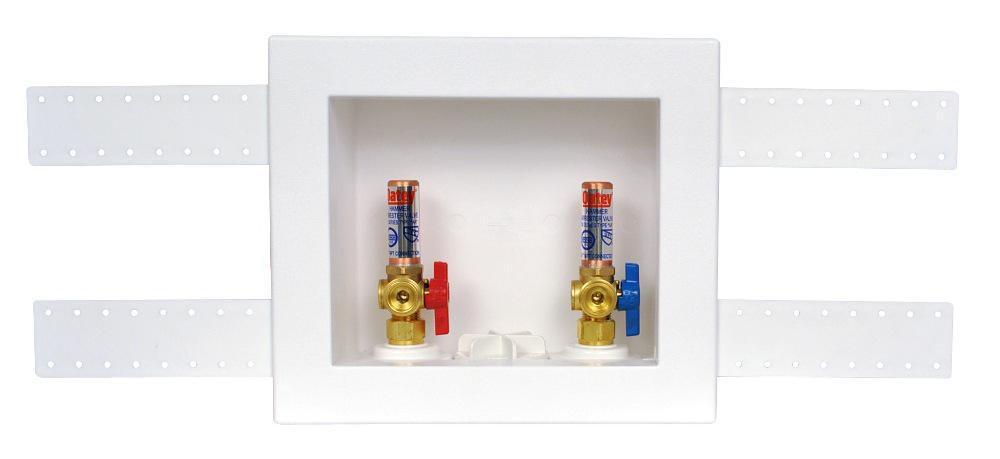

Oatey 38541 Quadtro 1/4 Turn CPVC Connection Washing Machine Supply Box

Product Description

The Oatey 38541 Quadtro 1/4 Turn CPVC Connection Washing Machine Supply Box is designed for plumbing applications requiring reliable water supply management. This unit is suitable for both residential and commercial installations where washing machine connections are needed. The box features a compact design that facilitates easy installation and plumbing connections.

• 2 inch drain opening accommodates PVC or ABS Schedule 40 DWV pipe.
• Includes support brackets for top or bottom valve mounting.
• Constructed from high impact polystyrene for durability.

Product Highlights

This washing machine supply box includes brass valves and allows for various drain pipe positioning.

Product Information

Standard Information

• Brand: Oatey
• MPN: 38541

Technical Specifications

• Box Dimensions: 8-3/4 inches wide x 7-1/2 inches high x 3-5/8 inches deep
• Faceplate Dimensions: 11-3/4 inches wide x 10-1/8 inches high
• Material: High impact polystyrene
• Valve Size: 3/4 inch
• Features: 1/4 turn knockout, available in no hammer or hammer options, snap-on faceplate frame
• Standards: ASME A112.18.1/CSA B125.1, NSF/ANSI 61/372, ASSE 1010, IAPMO, UPC
• Lead-Free: Yes
