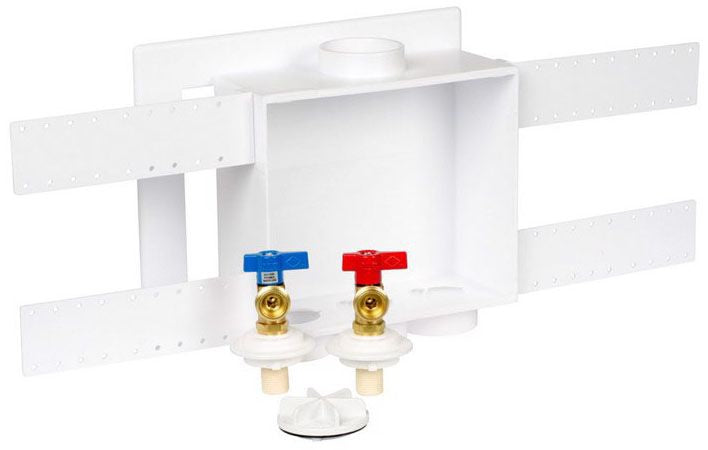

Oatey 38531 Quadtro CPVC Connection Washing Machine Supply Box

Product Description

The Oatey Quadtro Model 38531 is designed for use as a washing machine outlet box. It features a connection type of 2 inch CPVC and is suitable for both commercial and residential applications. The box dimensions are eight and three-fourths inches in width, three and five-eighths inches in depth, and seven and one-half inches in height. The faceplate size is eleven and three-fourths inches in width and ten and one-eighth inches in height.

• Includes a top or bottom valve mount for flexibility.
• Made from high impact polystyrene for durability.

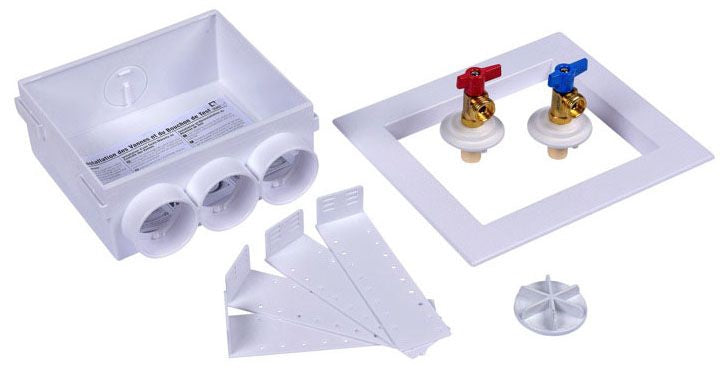

• Comes with four support brackets for secure installation.

Product Highlights

This outlet box is built to accommodate supply valves and waste drains that are recessed into the wall, making installation simple and efficient.

Product Information

Standard Information

• Brand: Oatey
• UPC: 3875338531

Technical Specifications

• Connection Type: CPVC
• Height: 7.5 inches
• Length: 8.75 inches
• Width: 3.625 inches
• Material: High Impact Polystyrene
• Valve Supplied: Yes
• Valve Details: 3/4 Inch Brass Ball Valve
• Applicable Standards: ASME A112.18.1, ASSE 1010, CSA B125.1, NSF/ANSI 61/372, IAPMO, UPC
