Oatey 38530 Quadtro Washing Machine Outlet Box Copper Sweat 1/4 Turn Ball Valve 2 Inch

Product Description

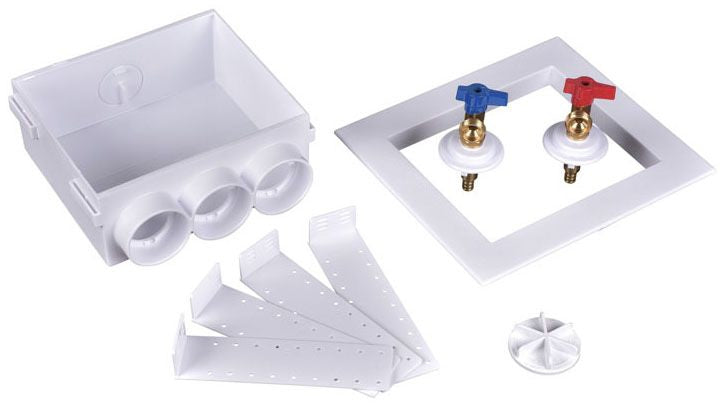

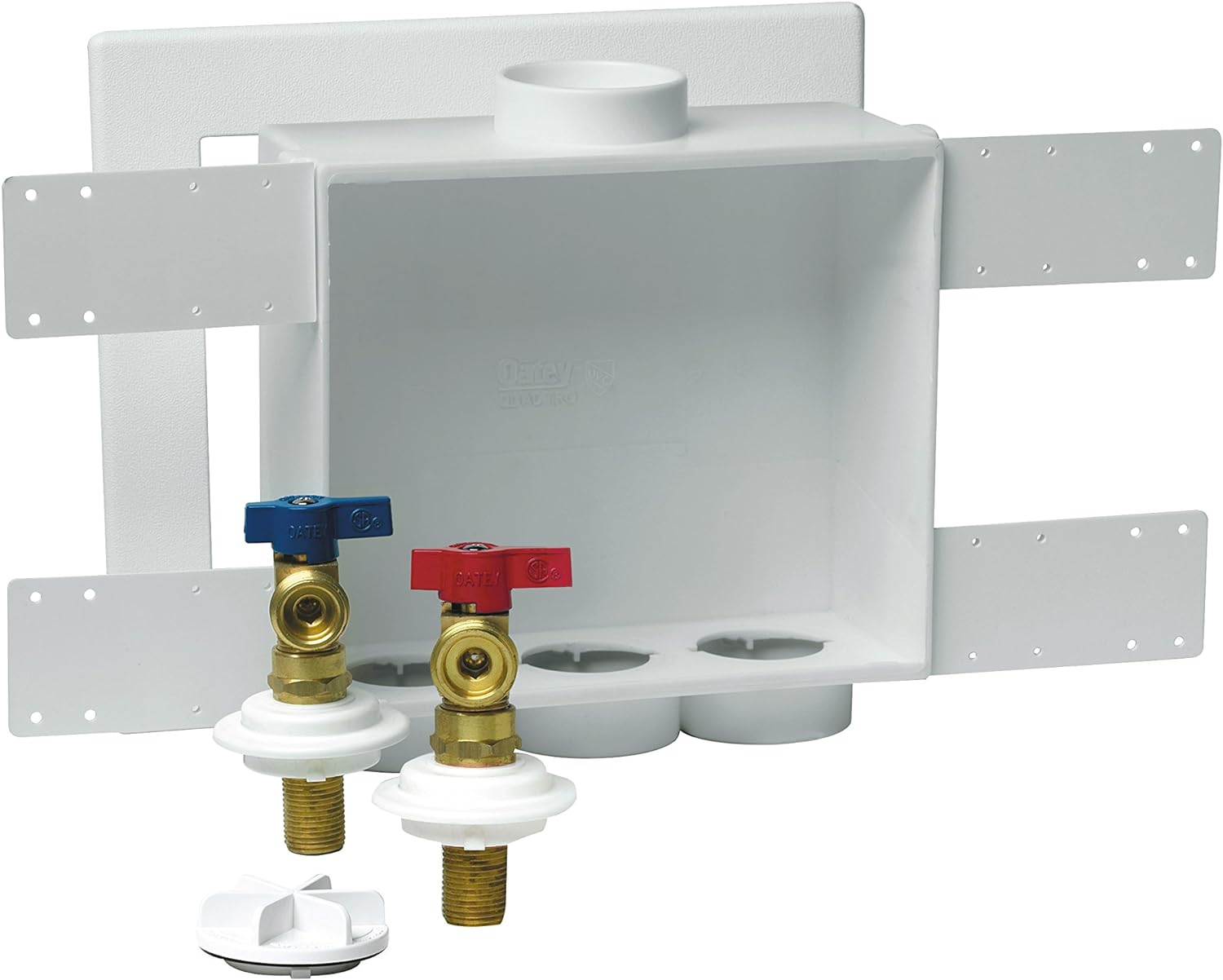

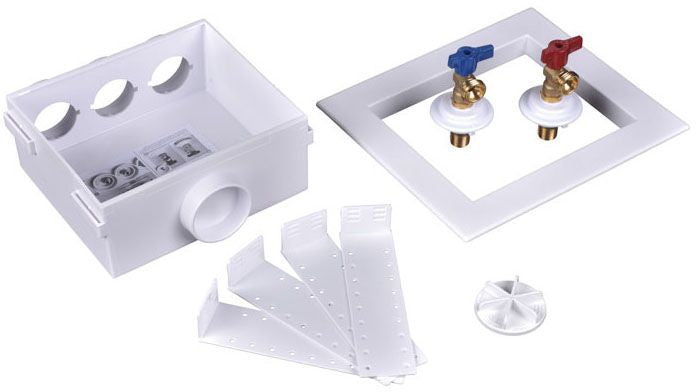

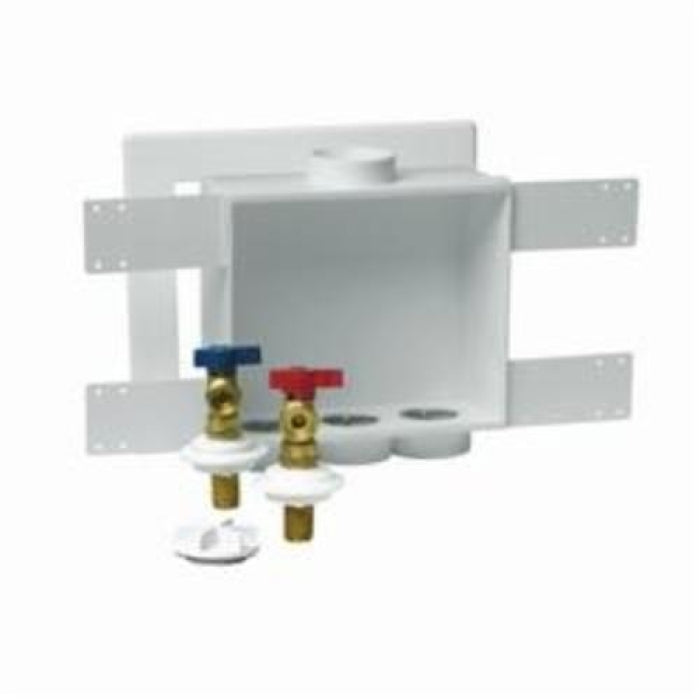

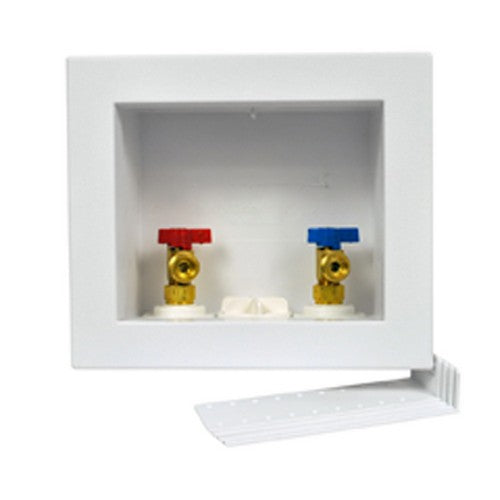

The Oatey 38530 Quadtro Washing Machine Outlet Box is a premium fixture designed for both commercial and residential use, capable of being mounted with supply valves and waste drains recessed into the wall. Its robust construction from high impact polystyrene ensures durability and reliability in household plumbing systems.

• 2 inch drain opening compatible with PVC or ABS Schedule 40 DWV pipe.
• User-friendly snap-on faceplate frame, accommodating up to 1 inch drywall.

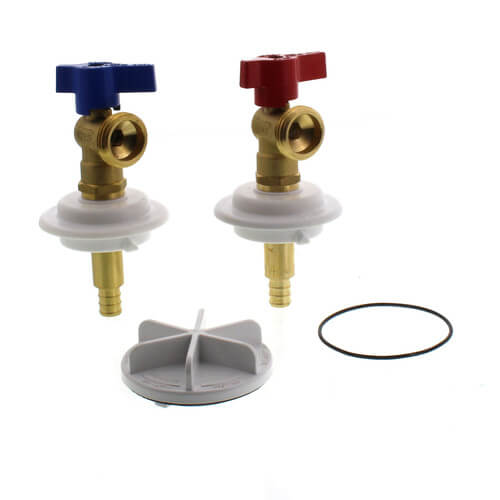

• Includes a 1/4 turn brass ball valve with a sweat connection for secure installation.

Product Highlights

This outlet box is not only functional but also engineered for ease of installation and compliance with major standards including ASME, CSA, and IAPMO, ensuring a high-quality installation.

Product Information

Standard Information

• Material: High Impact Polystyrene
• Color/Finish: White

Technical Specifications

• Dimensions: 8-3/4 inches width x 7-1/2 inches height x 3-5/8 inches depth
• Face Plate Size: 11-3/4 inches width x 10-1/8 inches height
• Connection Type: Sweat
• Standards: ASME A112.18.1, ASSE 1010, CSA B125.1, NSF/ANSI 61/372, IAPMO, UPC
