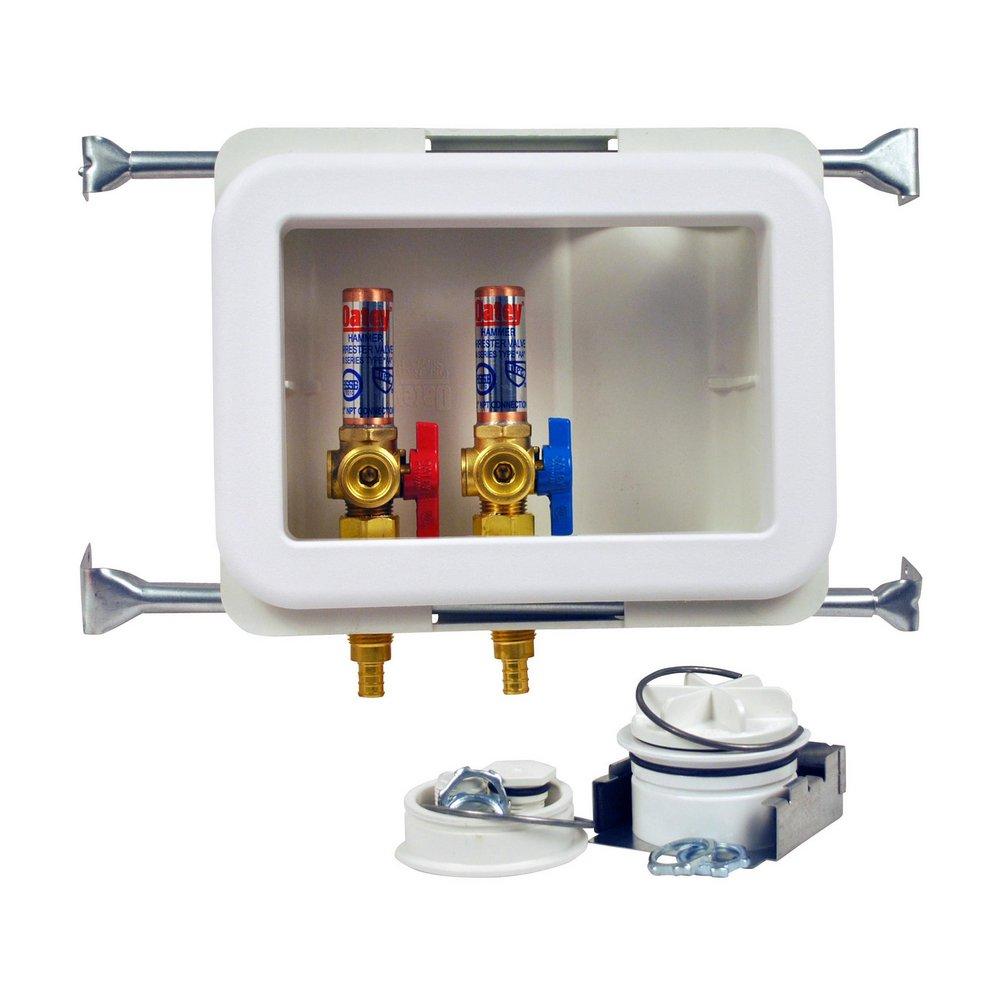

Oatey 38480 Fire Rated PEX Crimp Washing Machine Outlet Box w/ Water Hammer Arrestor, 1/4 Turn Brass Ball Valve (Standard Pack)

Product Description

The OATEY 38480 Fire-Rated Washing Machine Outlet Box can be used in applications that require supply valves and waste drains recessed into a fire-rated wall. Designed for commercial and multi-family applications, these boxes are Warnock Hersey certified for 1-hour and 2-hour fire-rated walls. Features adjustable metal mounting brackets and an easy-to-remove quarter-turn locking test cap. Water hammer arrestors help absorb shock and reduce noise.

• Fire Rated
• Water Hammer Arrestor
• PEX Crimp
• Washing Machine Outlet Box

Product Highlights

Fire-rated outlet box with water hammer arrestor, PEX crimp connections, and brass ball valves for washing machine supply and drainage.

Product Information

Standard Information

• Brand: OATEY
• Manufacturer Part Number: 38480
• Country of Origin: China

Technical Specifications

• Tailpiece: F1807 PEX (Brass)
• Hammer Arrestor: Yes
• Brand: Oatey
• Valve Size: 0.75 in.
• Valve Body Material: Brass
• Product Line: Fire Rated
• Category: Outlet Box
• Box Depth: 4 in
• Box Width: 10 in
• Box Height: 13.5 in
• Drain Location: Adjustable
• Inlet Connection: PEX 1807
• Valve Connection: 1/4 in Turn
• Material of Construction: Polystyrene/Low Lead Alloy
• Type: Washing Machine
• Specifications: F1807 Crimp PEX
• Suitable For Use With: SCH 40 PVC or ABS DWV Pipe
• Manufacturer: OATEY
• Manufacturer #: 38480
• Item: Outlet Box
• Compatible Brand: OATEY
• Model: 38480
• MPN: 38480
• Features: Outlet Box, Washing Machine, Inlet Connection Copper Sweat, Box Width 10 in., Box Height 13.50 in., Box Depth 4 in., Drain Location Adjustable, Valve Connection Copper Sweat, Material of Construction Polystyrene/Low Lead Alloy
• ASME: ASME A-112.18.1
• ASSE Standards: ASSE 1001
• Box Material: Plastic
• Collection: Fire-Rated
• Connection Size: 1/4
• Drain Opening: 2 in
• Fire Rated: Yes
• NSF: NSF 61
• NSF Certified: Yes
• Supply Box Connection Type: F1807 PEX
• Supply Box Type: Washing Machine
• UL Listed: No
• Water Hammer Arrestor Included: Yes
