Oatey 38472 Fire Rated, 1/4 Turn Washing Machine Outlet Box Standard Pack

Product Description

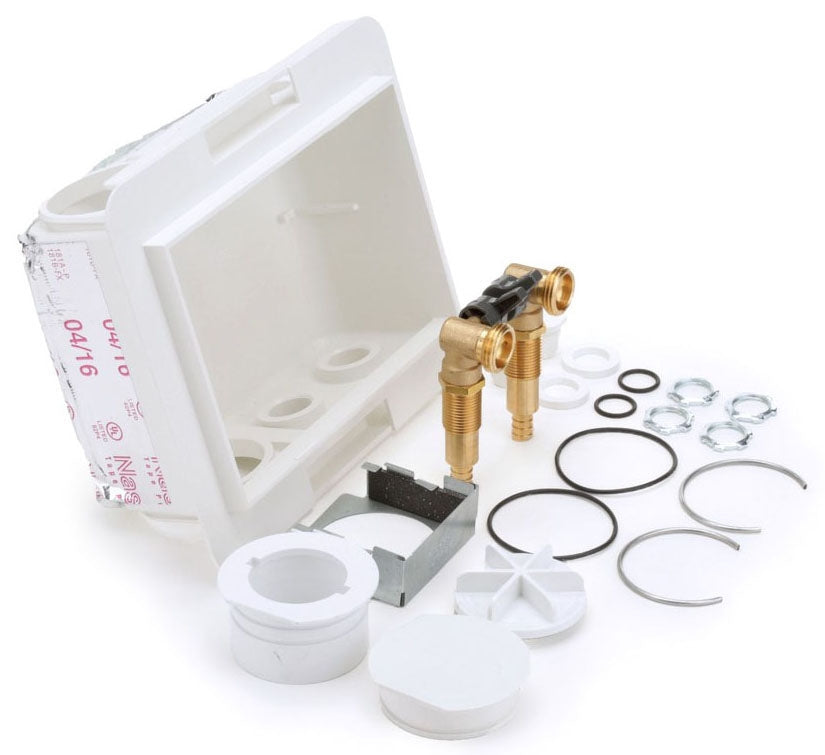

The Oatey 38472 is a washing machine outlet box designed for fire-rated installations. It features a 1/4 turn brass valve for easy access and operation. The box dimensions are eight and one-third inches wide, three and three-fourths inches deep, and five and one-half inches tall. The faceplate measures ten and one-fifth inches wide by seven and two-fifths inches tall. This product is made from thermoset fire-rated plastic.

• Compatible with 1/2 inch PEX connections.
• Includes adjustable galvanized steel mounting brackets.
• Warnock Hersey certified for 1-hour and 2-hour fire-rated walls.

Product Highlights

This outlet box provides a reliable solution for connecting washing machines in fire-rated walls. It meets various plumbing standards, ensuring safety and compliance.

Product Information

Standard Information

• Brand: Oatey
• MPN: 38472

Technical Specifications

• Box Size: eight and one-third inches width x three and three-fourths inches depth x five and one-half inches height
• Face Plate Size: ten and one-fifth inches width x seven and two-fifths inches height
• Material: thermoset fire rated plastic
• Valve Details: 1/4 turn brass ball valve
• Pipe Connection: 1/2 inch PEX
• Inclusions/Features: galvanized steel adjustable metal mounting bracket
• Applicable Standards: CUPC, UPC, Warnock Hersey (Canada and US), ASSE 1010, ASTM F1807
