Oatey 37905 moda toilet/ dishwasher supply box male copper w/hammer

Product Description

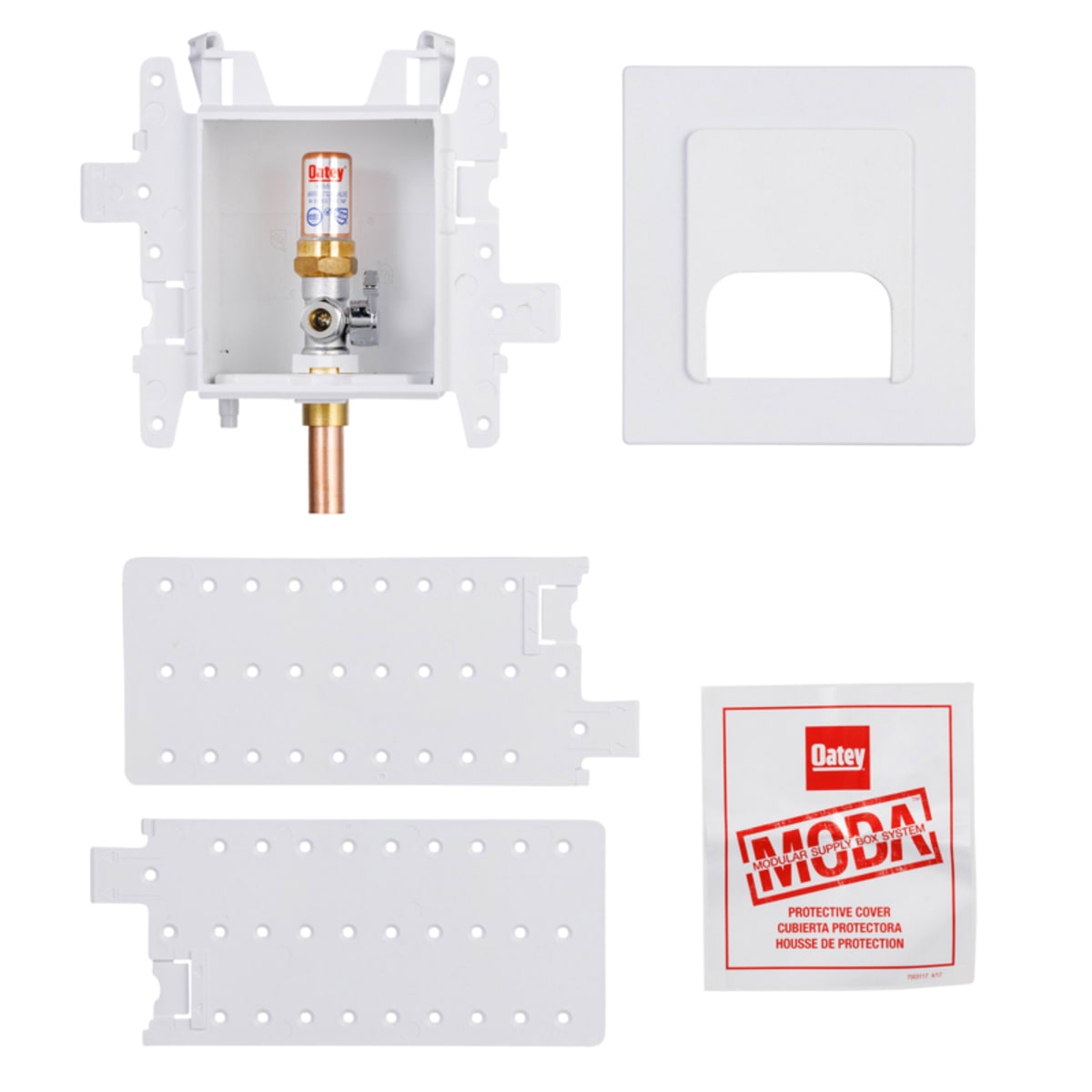

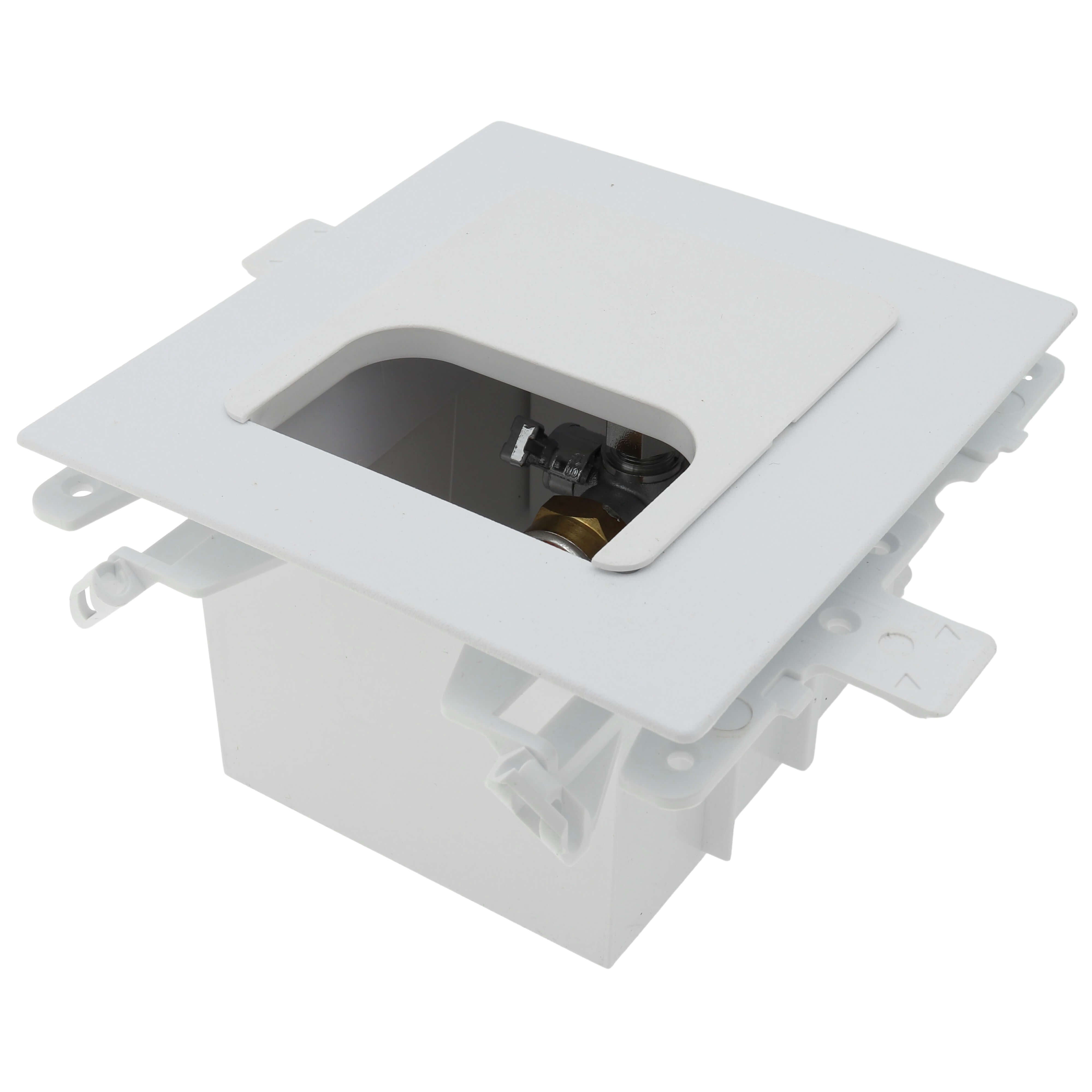

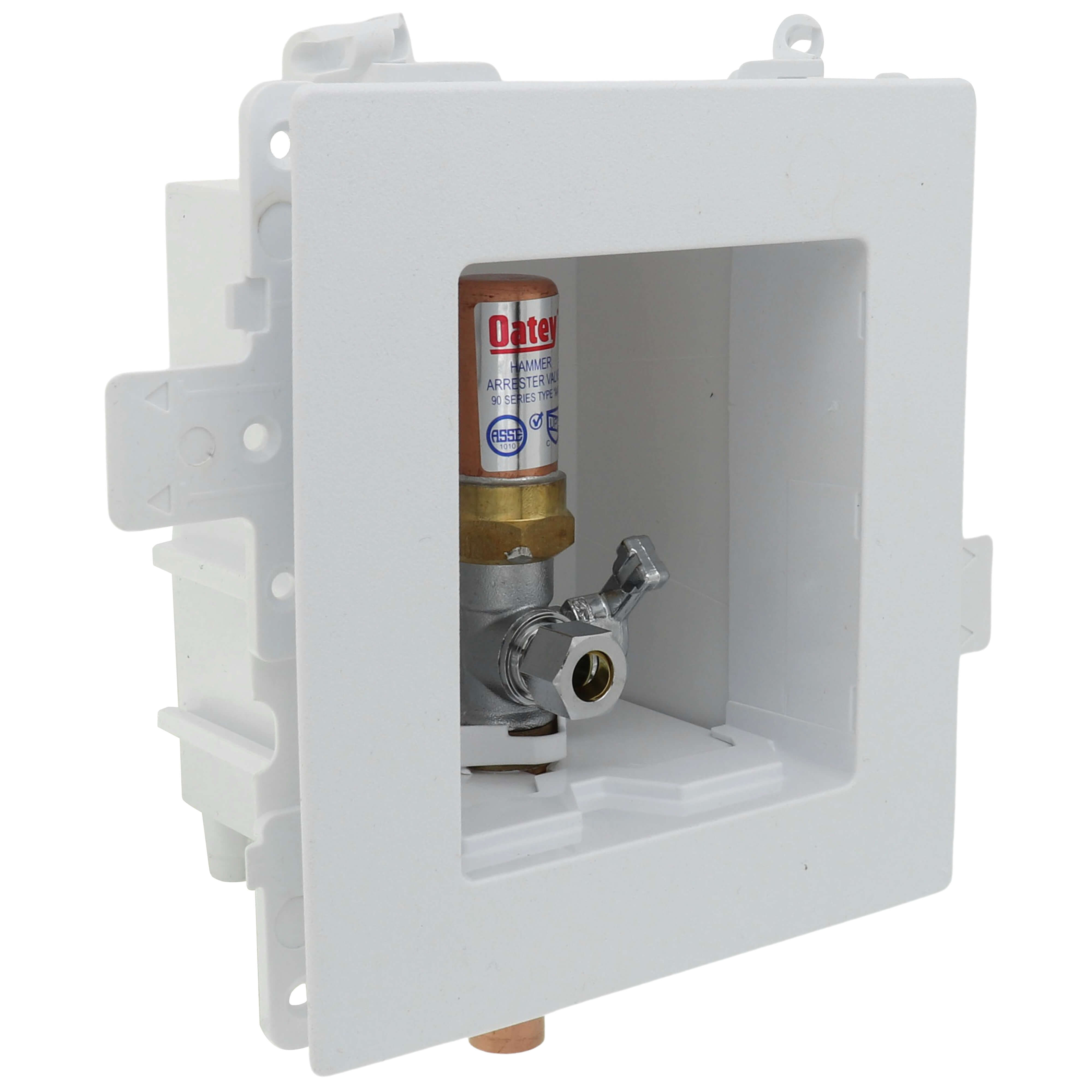

The Oatey 37905 Moda Toilet/ Dishwasher Supply Box is designed for residential or commercial applications needing a recessed supply valve. It features a 3/8" OD compression valve preinstalled in a PVC box with interlocking wing flanges for single or between stud installation. The assembly includes an emergency drain port for leak protection.

• Water Hammer Arrestor included
• Two-piece valve design permits field replacement
• Interlocking wing flanges for easy installation

Product Highlights

This Oatey MODA supply box offers versatility and simple installation for toilet and dishwasher applications. Its universal design and rugged reliability make it an ideal solution for plumbing contractors.

Product Information

Standard Information

• Brand: Oatey
• Manufacturer Part Number: 37905

Technical Specifications

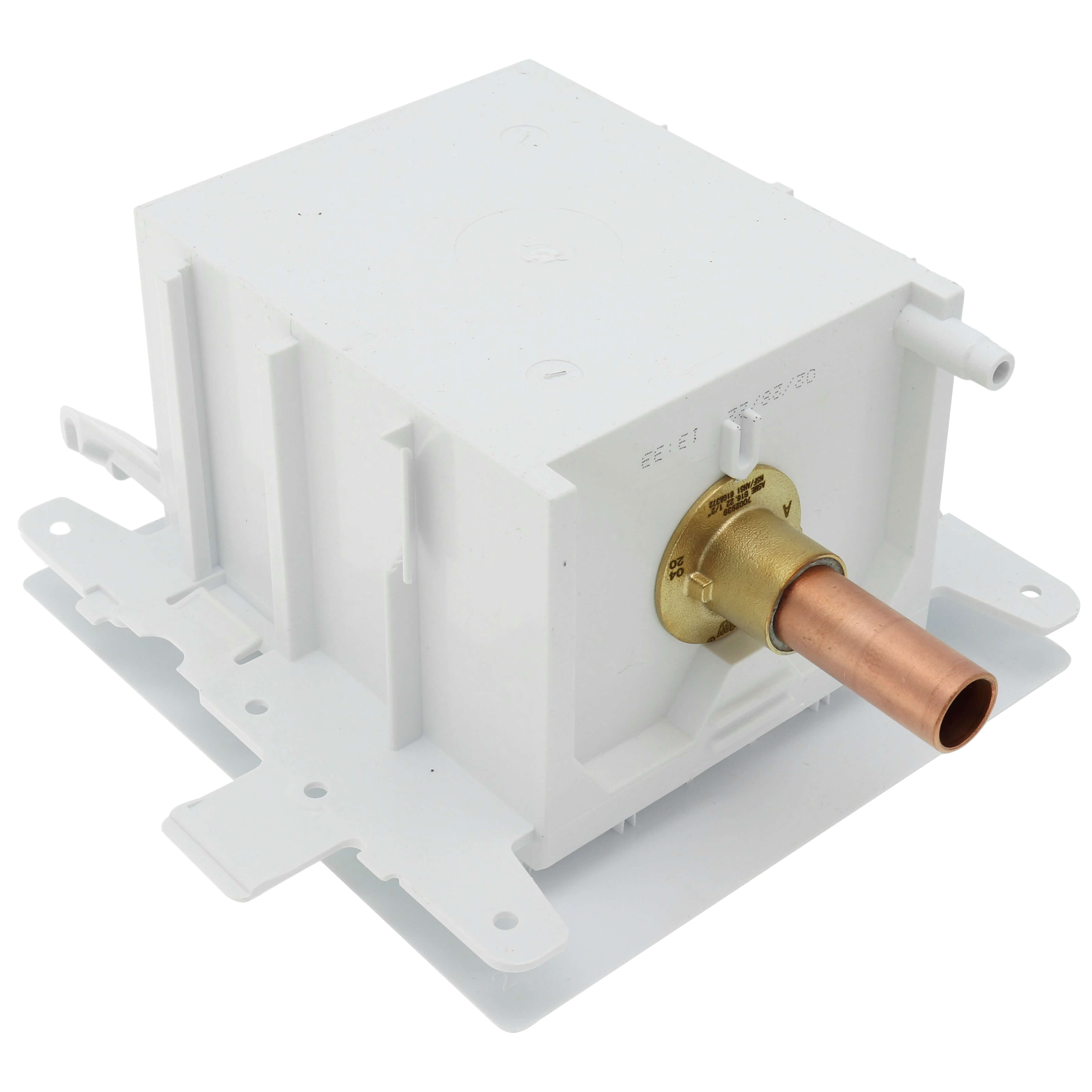

• Inlet Type: Male Copper
• Product Type: Toilet/Dishwasher Outlet Box
• Inlet Size: 3/8"
• Material: PVC
• Pressure Rating: 100 (Air)/250 (Water) psi
• Temperature Rating: 250 deg F
• ASME: ASME A-112.18.1
• ASSE Standards: ASSE 1010
• ASTM: ASTM D-2855, ASTM E-814
• Box Material: Plastic
• Collection: Moda™
• Connection Size: 3/8
• Fire Rated: No
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• Supply Box Connection Type: Copper
• Supply Box Type: Toilet
• UL Listed: No
• UPC: 038753379050
• Water Hammer Arrestor Included: Yes
