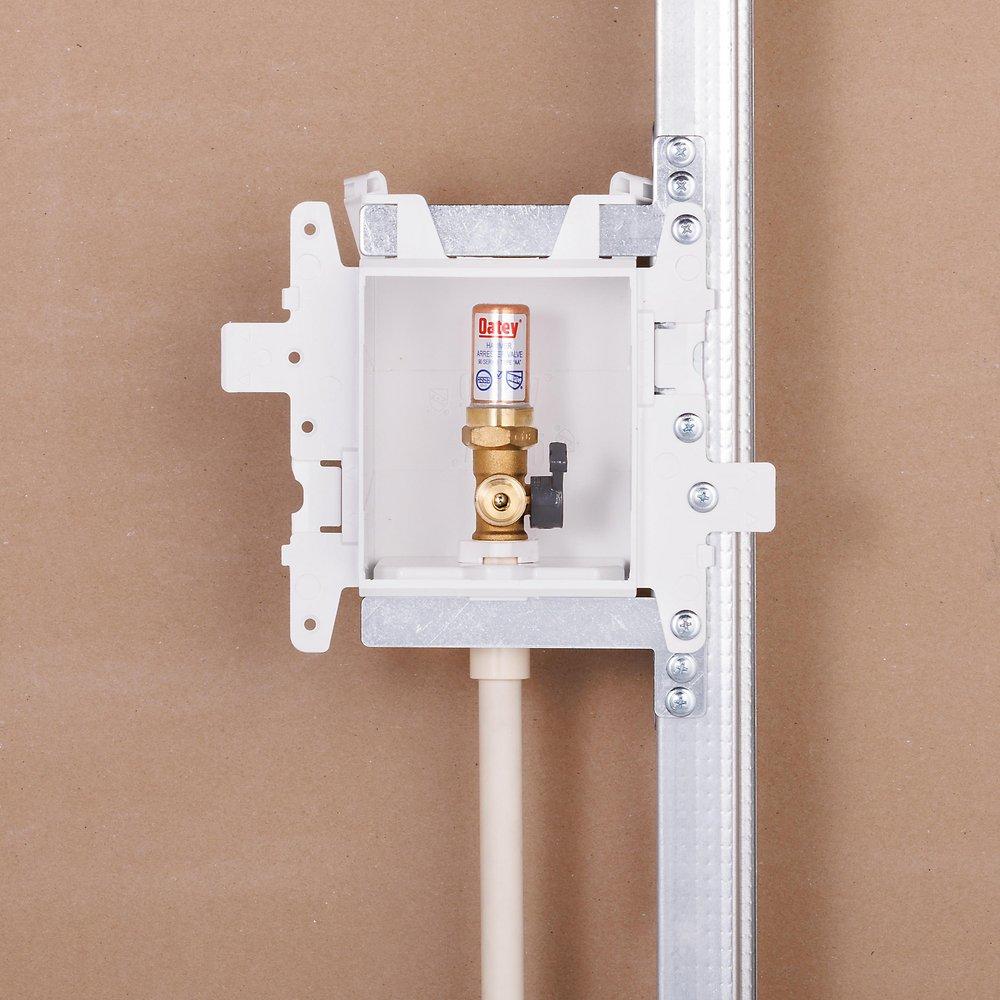

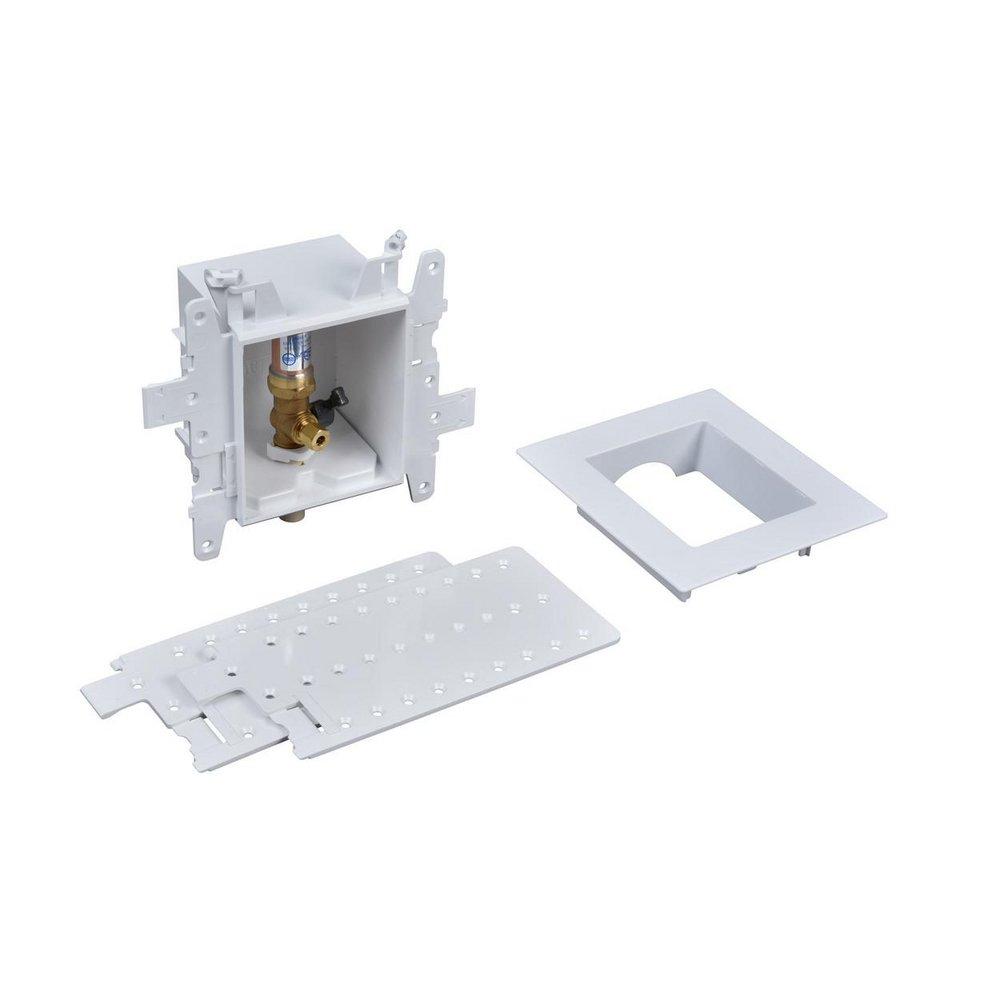

Oatey 37390 Moda Quarter-Turn CPVC Connection Fire Rated Ice Maker Supply Box with Hammer Arrestor

Product Description

The Oatey 37390 Moda Quarter-Turn CPVC Connection Fire Rated Ice Maker Supply Box with Hammer Arrestor is designed for efficient and safe installation of ice maker connections. This compact box is built to withstand demanding job site conditions.

• Includes a pre-installed 1/4 inch outer diameter compression valve.
• Easy installation with a flexible design for CPVC supply lines.
• Separate valve and drain boxes to prevent supply and drain crossovers.

Product Highlights

This product is suitable for residential and commercial applications. It features durable PVC construction, enabling reliable performance and compliance with fire-rated standards.

Product Information

Standard Information

• Brand: Oatey
• MPN: 37390

Technical Specifications

• Box Dimensions: 8 inches wide x 4.85 inches high x 3.38 inches deep
• Faceplate Dimensions: 6 inches wide x 6.45 inches high
• Material: PVC
• Color/Finish: White
• Valve Rating: 150 PSI air and 250 PSI water
• Installation Type: Solvent weld connection
• Applicable Standards: ASME A112.18.1, CSA B125.1, NSF/ANSI 61, UPC
