Product Description

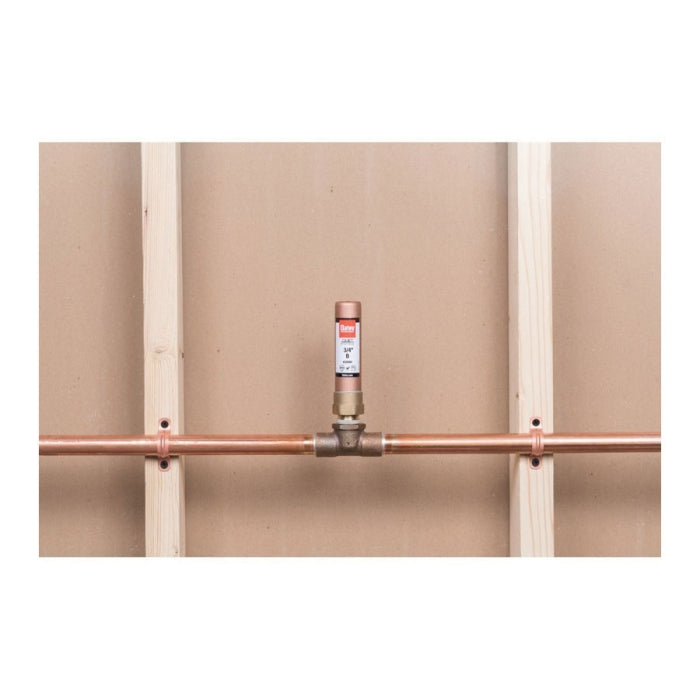

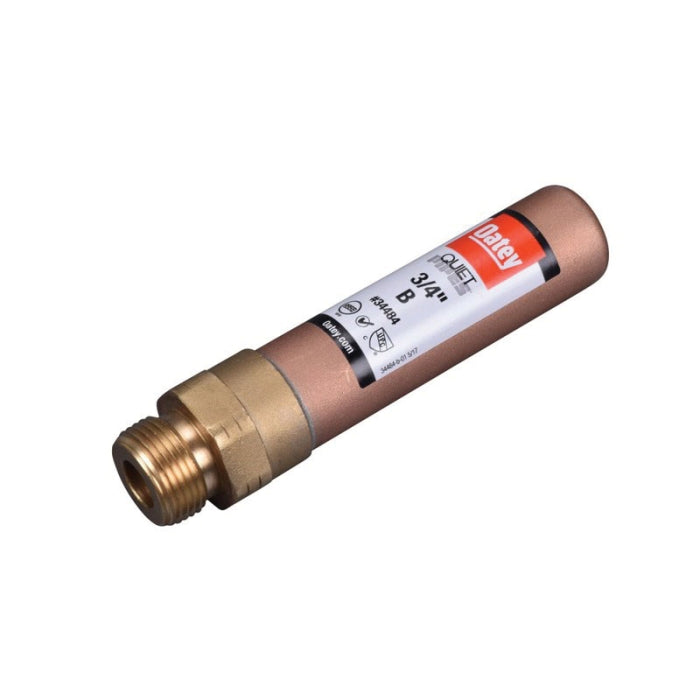

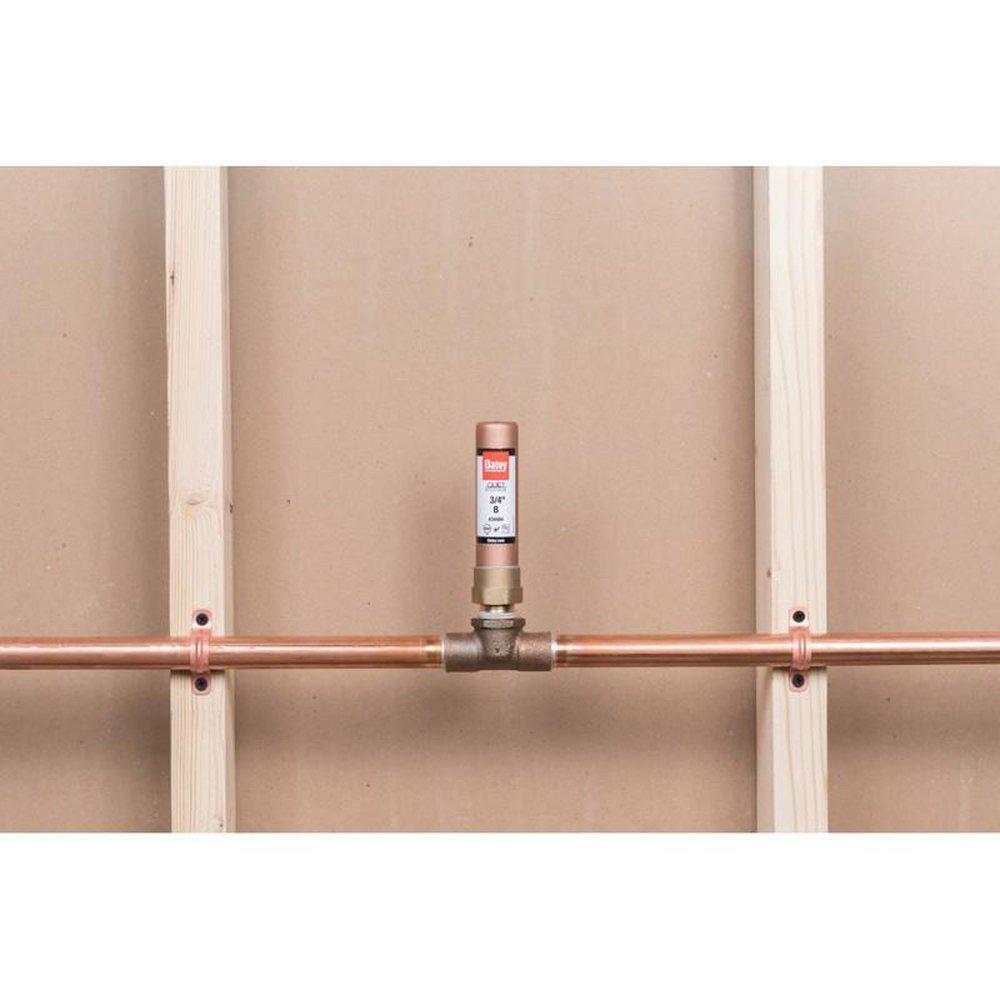

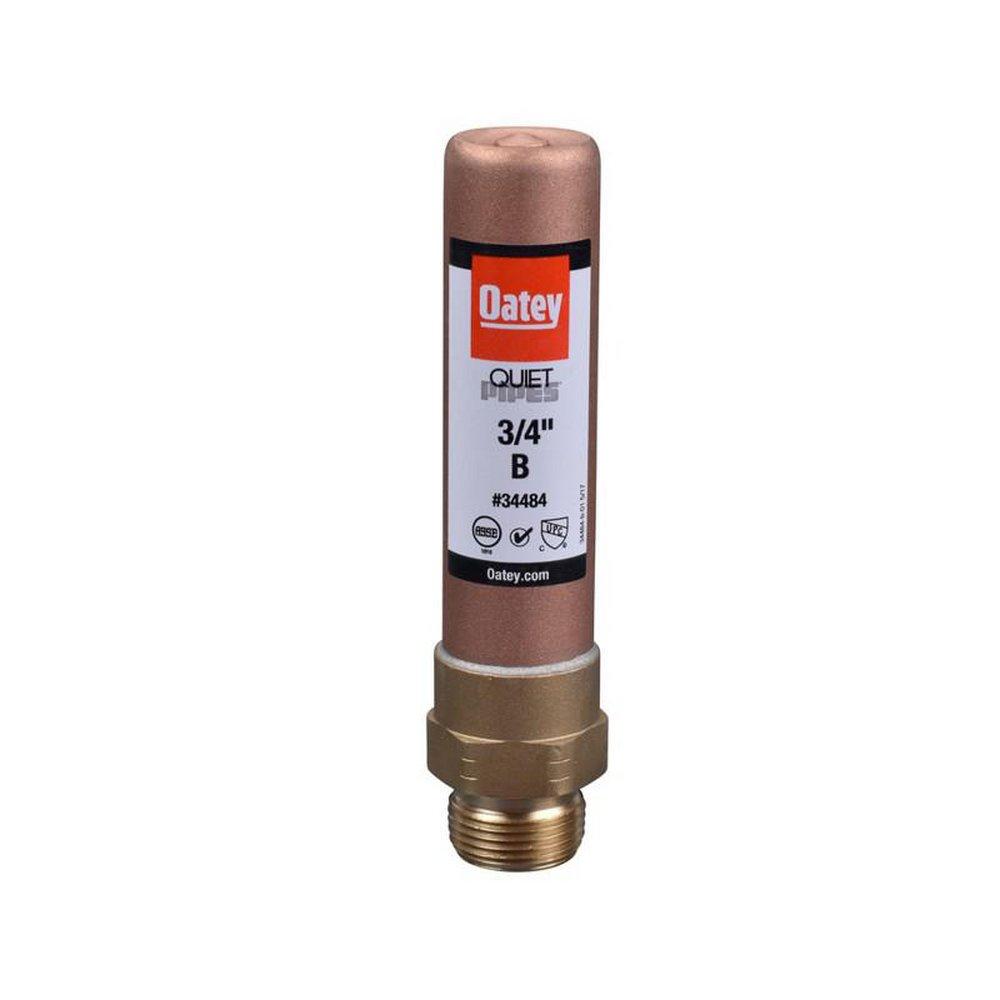

The Oatey Quiet Pipes Hammer Arrestor, model 34484, is designed to prevent water hammer in plumbing systems. This device uses a piston design to minimize water shock when valves shut suddenly. It connects to a three-quarter inch MIPT pipe and is suitable for both hot and cold water applications. The design ensures that installation is easy, without the need for access panels or drywall cutting.
- Piston design absorbs water shock
- Can be used in any direction
- Pressure rating up to four hundred psi
Product Highlights
This water hammer arrestor protects pipes and plumbing fixtures from damage caused by water hammer. It is ideal for residential and commercial use, fitting easily into existing plumbing systems.
Product Information
Standard Information
Technical Specifications
-
Body Material: Copper
-
Nominal Size: 3/4 in
-
End Style: MNPT
-
Pressure Rating: 0 to 400 psi
-
Temperature Rating: 33 to 180 degrees F
-
Dimensions: 1.125 in Diameter x 5.39 in Height
-
Softgoods Material: NBR
-
Domestic/Import: Import
