Product Description

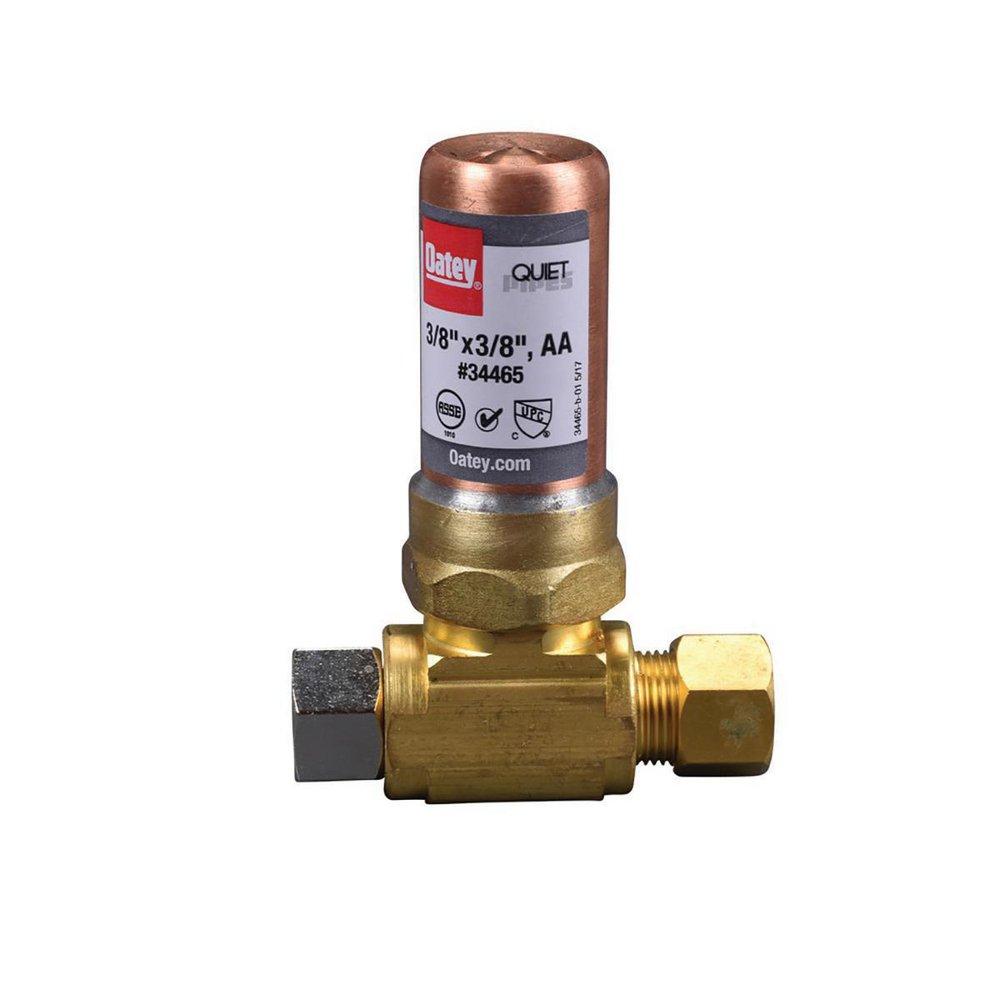

The Oatey 34465 is a water hammer arrestor designed to mitigate the effects of water hammer in plumbing systems. This model features a three-eighths inch copper OD compression fitting and female compression connection. It is suitable for installation in any supply application prone to water hammer from rapid-closing valves or faucets.
- Lead-free copper construction
- Operates effectively when installed at any angle
- Includes polypropylene piston with dual NBR O-rings
Product Highlights
Designed for reliable performance, the Oatey 34465 water hammer arrestor meets ANSI/ASSE1010-2004 requirements and does not require an access panel for installation.
Product Information
Standard Information
Technical Specifications
-
Size: three-eighths inch OD
-
Material: lead-free copper
-
Connection Type: compression x female
-
Temperature Range: thirty-three to one hundred eighty degrees Fahrenheit
-
Max Working Pressure: zero to sixty PSI
-
Arrestor Body Diameter: zero point eight seven five inches
-
Overall Height: two point seventy-five inches
