Description

Product Description

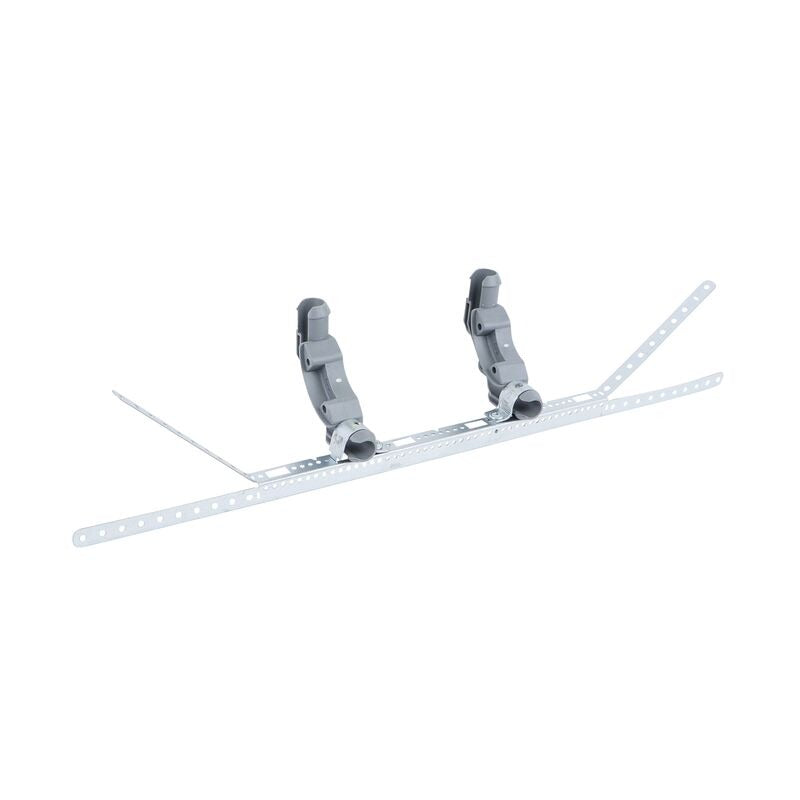

The Oatey 34323 light angled wall bracket kit provides an in-wall angled bracket with stub-out clamps to support vertical piping and horizontal stub-outs for 1/2 in. CPVC or copper pipe. The steel bracket spans 12 to 20 inches, features four mounting points and an adjustable hole pattern allowing stub-outs every 2 in. (± 1/2 in). Kit contents include the bracket, two 1/2 in. stub-out clamps with screws and grommets or PEX bends.

  • Supports vertical piping and horizontal stub-outs for 1/2 in. CPVC or copper pipe; spans 12 to 20 in.
  • Adjustable hole pattern enables stub-outs every 2 in. with ±1/2 in. tolerance; four mounting points for stability
  • Kit includes 1 light angled bracket, 2 stub-out clamps with screws, and either 2 grommets (CPVC/Copper) or 2 PEX bends; pre-galvanized steel; IAPMO certified

Product Highlights

Pre-galvanized steel bracket for 1/2 in. pipe; fits 12–20 in. stud spacing; adjustable stub-outs every 2 in.; includes clamps and grommets or PEX bends

Product Information

Standard Information

  • Brand: OATEY
  • Manufacturer Part Number: 34323
Technical Specifications
Brand
Oatey
Manufacturer Part Number
34323
Product Name
Light angled wall bracket kit
Product Type
Wall bracket / Strut pipe clamps
Material
Steel
Finish
Pre-galvanized
Compatible Pipe Size
1/2 in.
Compatible Pipe Types
CPVC or copper (PEX option available in PEX kits)
Stud Spacing / Length
12 to 20 in.
Adjustable Stub-Out Interval
Every 2 in. (± 1/2 in.)
Mounting Points
Four
Kit Contents
1 light angled wall bracket; 2 stub-out clamps with screws; 2 grommets (CPVC/Copper kits) or 2 PEX bends (PEX kits)
Hole Size
1/2 in.
Certifications / Standards
IAPMO certified to file PS 42
Dimensions - Width
22 in.
Dimensions - Depth
4 in.
Dimensions - Height
1-1/6 in.
Weight
0.45 lb
UPC
038753493930
Manufacturer / Brand Part Numbers (primary)
34323
