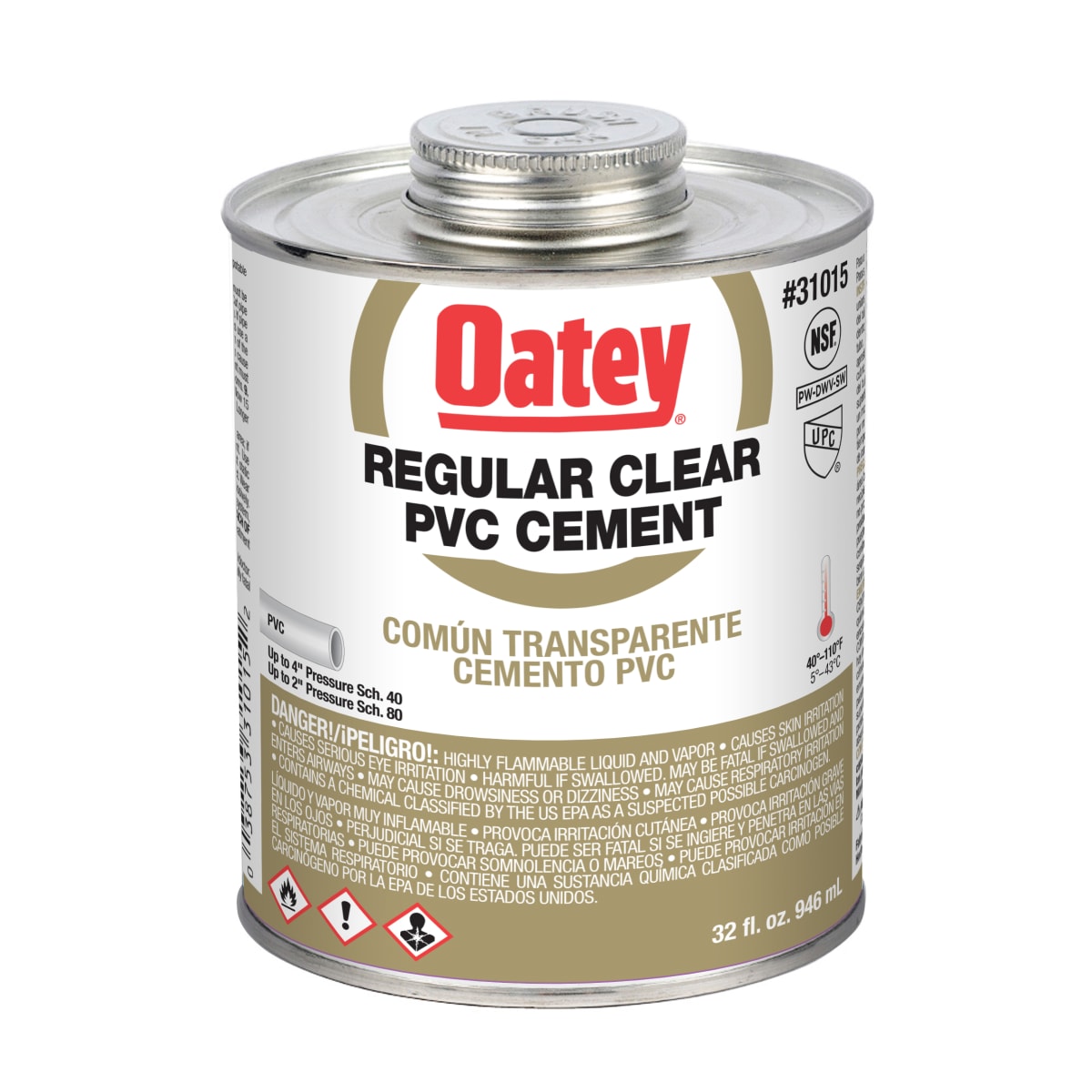

Oatey 31015 1 Quart Clear Low-Voc Regular Body PVC Cement

Product Description

The OATEY 31015 is a 1 quart clear low-VOC regular body PVC cement. It solvent welds PVC and includes a dauber for application. It is suitable for DWV, pressure pipe, potable water, and electrical applications. Can be used on all schedules and classes of PVC pipe and fittings.

• Fast setting clear cement solvent welds PVC, dauber included
• For DWV, pressure pipe, potable water and electrical applications
• Clear color provides a clean finish

Product Highlights

This clear PVC cement is ideal for creating secure, clean-looking connections in a variety of plumbing and electrical applications.

Product Information

Standard Information

• Brand: OATEY
• Manufacturer Part Number: 31015
• Country of Origin: United States

Technical Specifications

• Color: Clear
• Group: Pipe, Valves & Fittings
• Type: Regular
• Vendor: Oatey
• Category: Pipe & Fitting Accessories
• Product UPC: 038753310152
• Color Family: Clear
• Model Number: 31015
• Product Type: Cement
• Application Class: Commercial/Residential
• Manufacturer Name: OATEY
• Container Type: Can
• Container Size: 32 Ounce
• Pipe Size: 4 Inch Diameter Schedule 40, 2 Inch Diameter Schedule 80
• MSDS Number: 1100E
• Bonding Temperature: 40 to 110 Deg F
• Application: PVC
• Applicable Standard: ASTM D2564, NSF 61, SCAQMD 1168/316A, BAAQMD 40, UPC, IAPMO, ISO 9001
• Lead-Free: True
• Used On: PVC Pipe and Fitting, Potable Water, Pressure Rating Pipe, Conduit, DWV
• Physical State: Liquid
• Physical Form: Translucent
• Odor: Solvent
• Flash Point: -4 Deg F
• Vapor Pressure Rating: 145 Millimeter Hg at 20 Deg C
• Density: 7.47 lb/gal
• Viscosity: 80 - 500 cPs
• VOC: 510 Gram per Liter
• Set Up Time: 6 to 7 Minute (30 to 50 Deg F), 4 to 5 Minute (50 to 70 Deg F), 1 to 3 Minute (70 to 90 Deg F)
• Boiling Point: 151 deg F
• Composition: 25 - 40% Methyl Ethyl Ketone, 10 - 25% Cyclohexanone, Furan, Tetrahydro, 5 - 15% Acetone, Polyvinyl Chloride
• Curing Time: 5 - 6 min at 30 - 50 deg F
• Evaporation Rate: 5.5 - 8
• Flammability Limit: 1.8% Lower, 11.8% Upper
• Item Name: PVC Solvent Cement
• Odor/Scent: Solvent
• Relative Density: 7.47 Plus/Minus 0.2 lb/gal
• Shelf Life: 3 years
• Temperature Rating: 40 - 110 deg F
• Vapor Density: 2.5
• Vapor Pressure: 145 mm Hg at 20 deg C
• Standards/Certifications: ASTM D2564, NSF 61 certified, SCAQMD 1168/316A, UL Greenguard, IAPMO, UPC listed
• Applications: For potable water, pressure pipe, conduit and DWV
• For Use With: PVC Pipe
• Setting Time: 6 to 7 min
• Size: 32 oz.
• Material: PVC
• Item [Specifications]: Pipe Cement
• Type [Specifications]: Regular Body
• Series [Specifications]: Regular
• Size (Oz.) [Specifications]: 32 oz
• For Use With [Specifications]: PVC Pipe and Fittings
• Working Time: 2 min
• Container Size [Specifications]: 32 fl oz
• Full Cure Time: 6 min
• For Material Type [Specifications]: PVC
• Maximum Viscosity [Specifications]: 90 cps
• Minimum Viscosity [Specifications]: 0 cps
• Compatible Materials [Specifications]: PVC
• For Application Type [Specifications]: For Drain, Waste, and Vent Pipe, Potable Water
• For Maximum Pipe Diameter: 4 in
• Operating Temperature Range [Specifications]: 40 Degrees F to 110 Degrees F
• Maximum Operating Temperature: 110 Degrees F
• Minimum Operating Temperature: 40 Degrees F
• Country of Origin (subject to change) [Specifications]: United States
• Specific Uses For Product: Potable water, Pressure pipe, Conduit, DWV
• Item Form: Oz
• Special Feature: Dries Clear
• Water Resistance Level: Waterproof
• Item Package Quantity: 1
• Volume: 32 Fluid Ounces
• Material Type: PVC
• Applicable Materials: PVC
• Application Method: Brush, Roller
• Compositions: Methyl Ethyl Ketone, Cyclohexanone, Furan, Tetrahydro, Acetone, Polyvinyl Chloride
• Drying Time: 15 min
• Flammability Rating: 3
• Net Content: 32 oz
• Package Type: Can
• Specific Gravity: 0.9
• VOC Content: <510 g/L
• Rated Life Hours: 3 years
• VOC Content (g/L): 488 g/L
• Curing Time (Range): 2 hr
• Temperature Rating (deg): 40 to 110 deg F
• Manufacturer Part Number: 31015
• UNSPSC: 31201617
