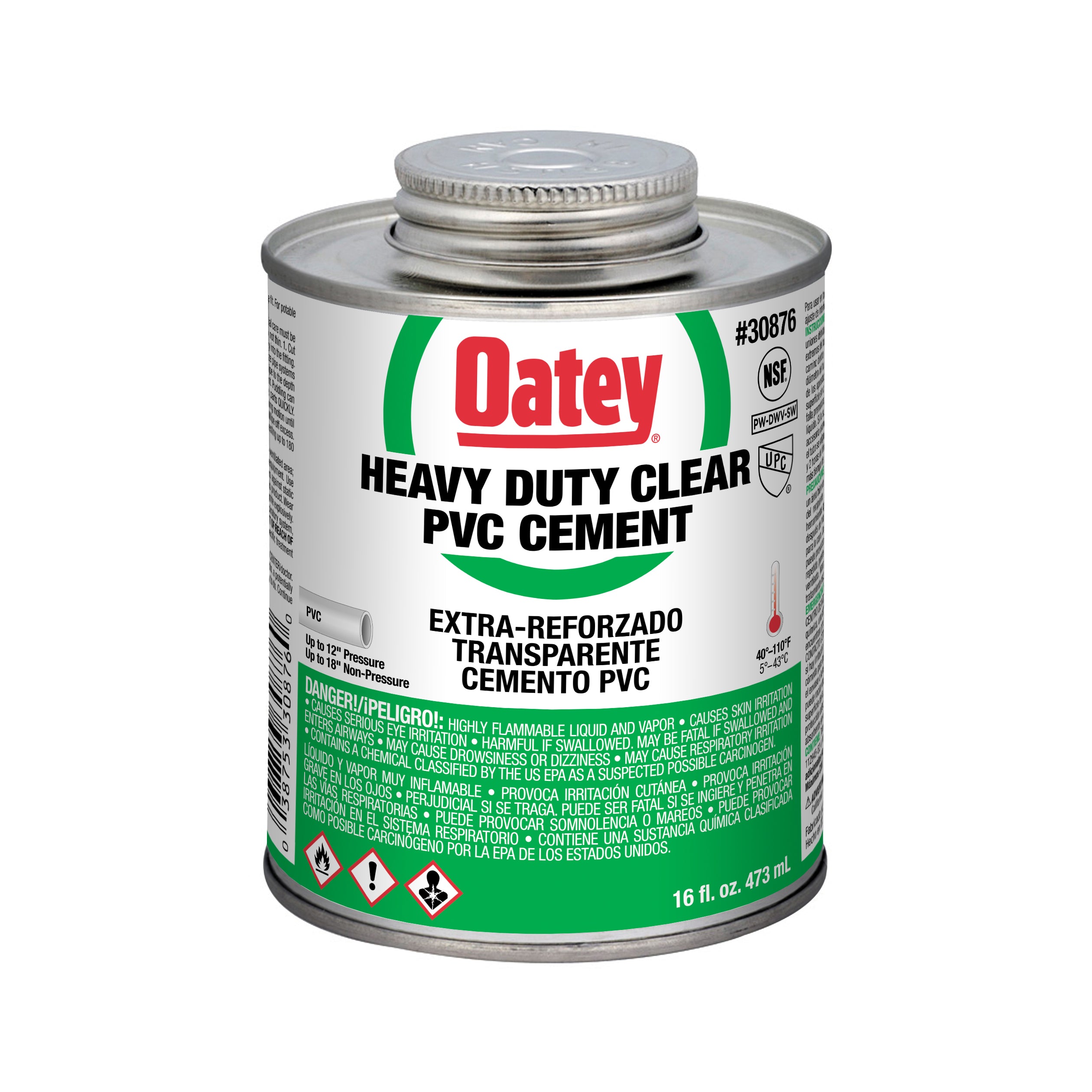

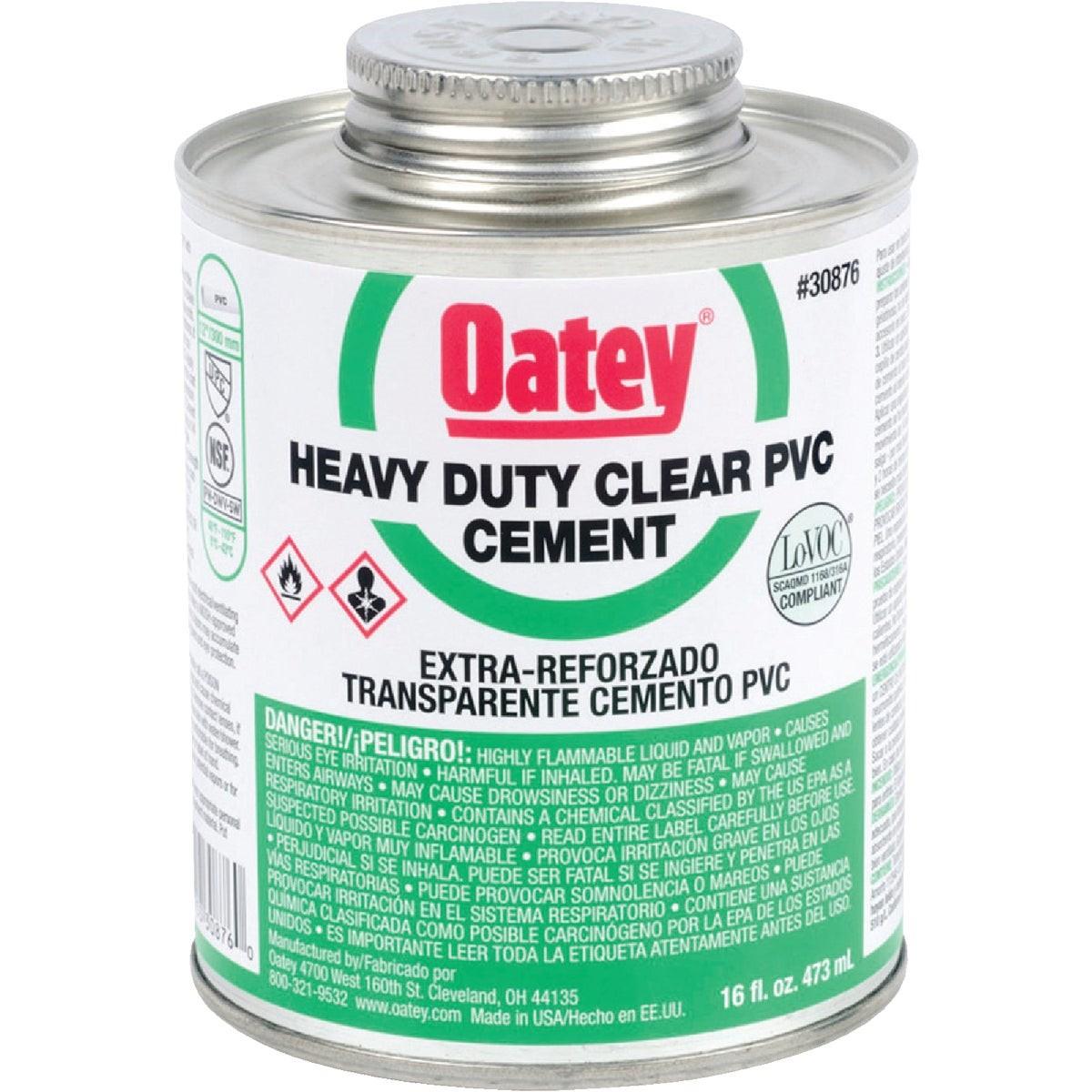

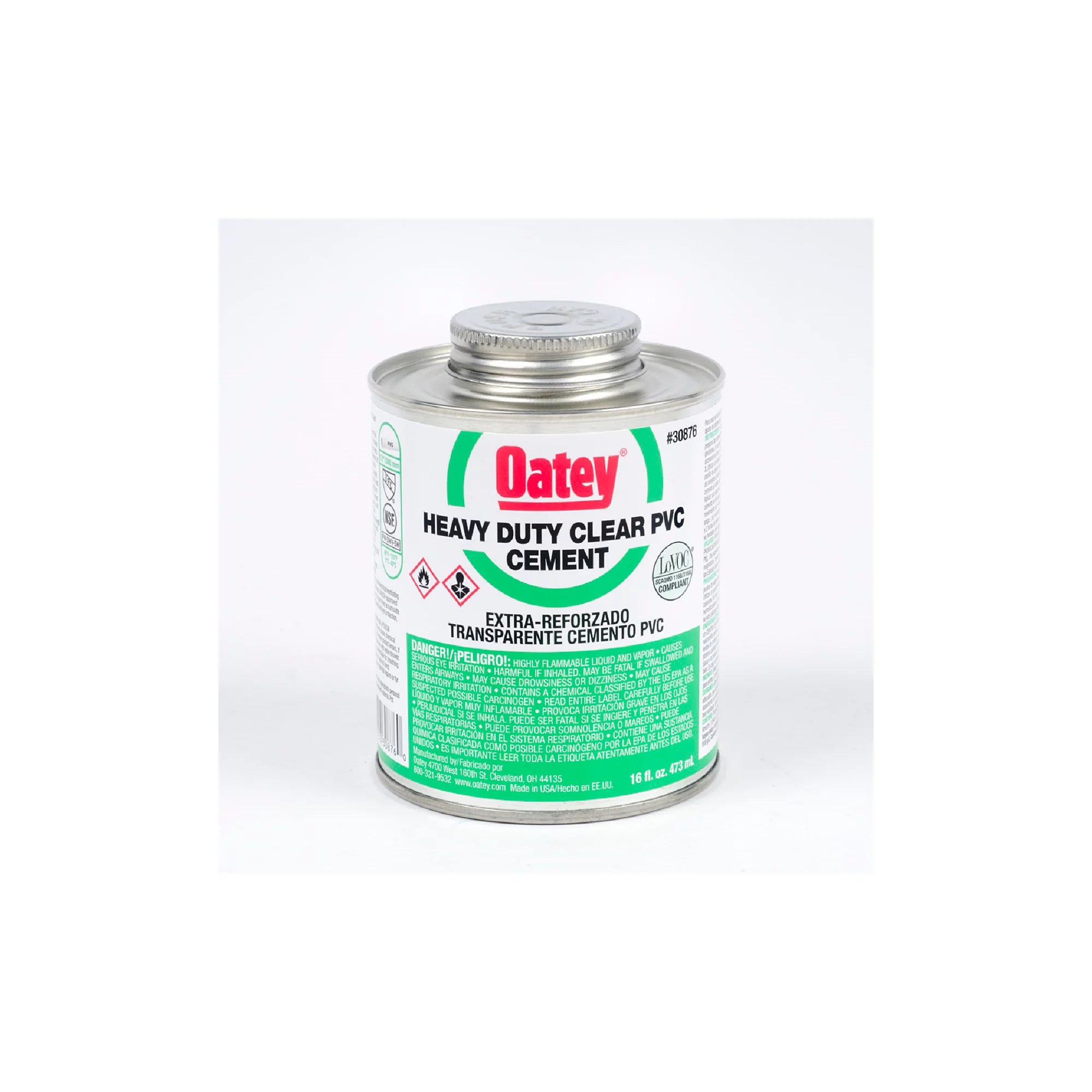

Product Description

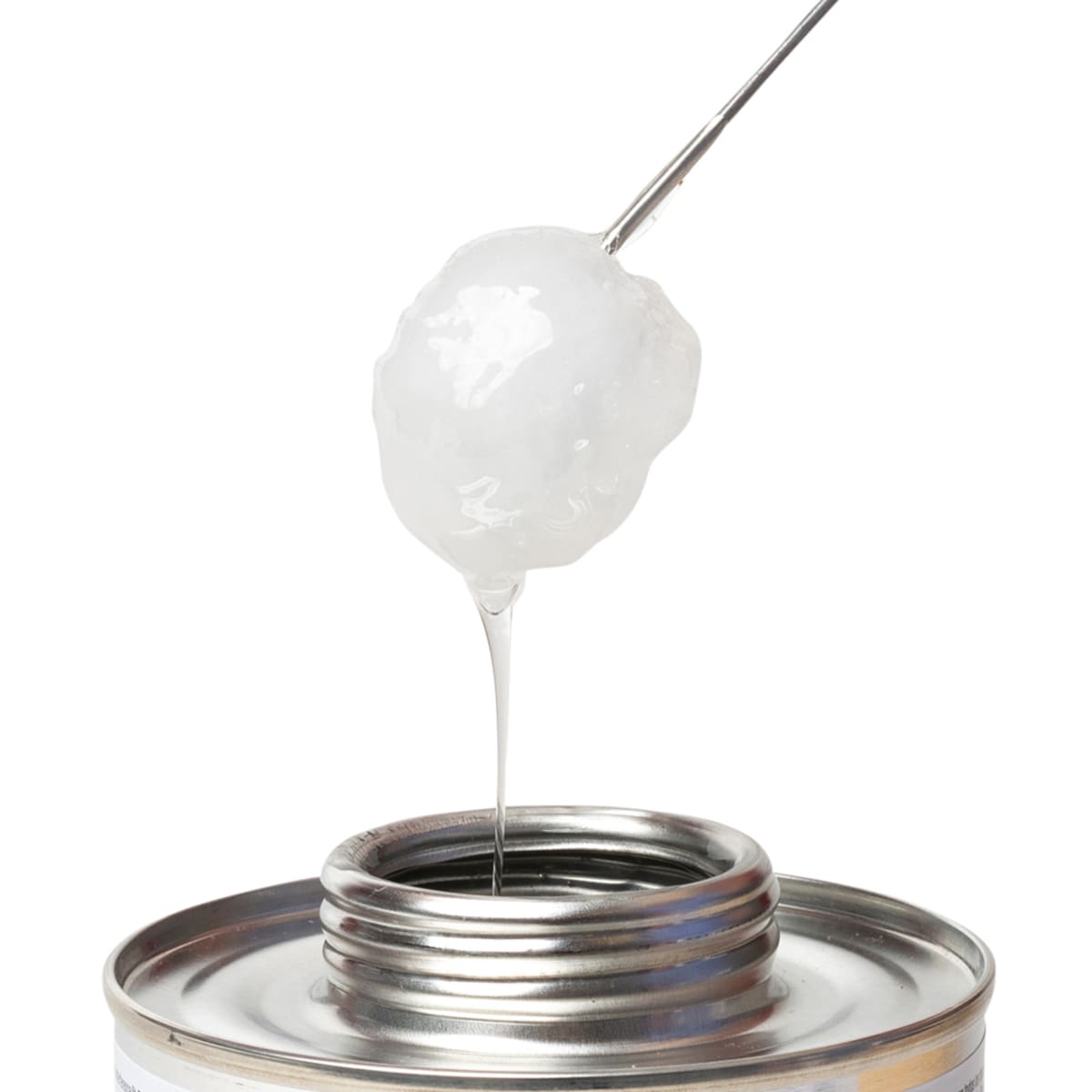

Oatey 30876 is a heavy-duty, heavy-bodied clear cement recommended for use on PVC pipe and fittings up to 12-inch diameter. It is suitable for Schedule 40 and Schedule 80 potable water pressure pipe, gas, conduit, drain waste, and vent pipe. It flows freely and provides a thick layer of cement, helping to fill gaps in larger diameter pipe and loose-fitting joints.
- Heavy-duty, heavy-bodied clear cement
- Recommended for use on PVC pipe and fittings up to 12-inch diameter
- For Schedule 40 and Schedule 80 potable water pressure pipe, gas, conduit, drain waste, and vent pipe
Product Highlights
This clear PVC cement is NSF listed and exceeds ASTM D-2564 standards. Apply at temperatures between 40 to 110 degrees Fahrenheit.
Product Information
Standard Information
-
Brand: OATEY
-
Manufacturer Part Number: 30876
-
Country of Origin: USA
Technical Specifications
-
MPN: 30876
-
UPCCode: 038753308760
-
Brand: Oatey
-
UOM: EA
-
ProductCategory: Plumbing
-
ProductSegment: PVC Pipe Chemicals
-
ProductLine: Pipe Cement
-
Country: US
-
Application Temperature: Up to 18" diameter for Sch. 40 and Sch. 80 40F to 110F
-
Style: Recommended for ALL grades and types of PVC pipe & fittings, potable water and DWV
-
Type: Heavy-Duty
-
Size: 16 oz
-
Color: Clear
-
Product: Cement
-
Collection: OATEY
-
Product UPC: 038753308760
-
Color Family: Clear
-
Model Number: 30876
-
Application Class: Commercial/Residential
-
Item [Specifications]: Pipe Cement
-
Series [Specifications]: Heavy Duty
-
Standards [Specifications]: ASTM D2564, BAAQMD Method 40, SCAQMD 1168/316A
-
Working Time [Specifications]: 2 min
-
Container Size [Specifications]: 16 fl oz
-
Container Type: Brush-Top Can
-
Full Cure Time [Specifications]: 5 min
-
For Material Type [Specifications]: PVC
-
Maximum Viscosity [Specifications]: 1,600 cps
-
Minimum Viscosity [Specifications]: 0 cps
-
Compatible Materials [Specifications]: PVC
-
For Application Type [Specifications]: For Drain, Waste, and Vent Pipe, Potable Water
-
For Maximum Pipe Diameter [Specifications]: 18 in
-
Operating Temperature Range [Specifications]: 40 Degrees F to 110 Degrees F
-
Green Environmental Attribute [Specifications]: Meets SCAQMD Requirements
-
Maximum Operating Temperature [Specifications]: 110 Degrees F
-
Minimum Operating Temperature [Specifications]: 40 Degrees F
-
Country of Origin (subject to change) [Specifications]: United States
-
Group: Pipe, Valves & Fittings
-
Type 1: PVC
-
Category: Chemicals
-
Manufacturer Name: OATEY
-
Shape: Other
-
Material: PVC
-
Item Form: Oz
-
Item Volume: 16 Fluid Ounces
-
Batteries Included?: No
-
Batteries Required?: No
-
Compatible Material: Polyvinyl Chloride
-
Water Resistance Level: Waterproof
-
Odor/Scent: Ether-Like
-
Composition: Tetrahydrofuran (40 to 60), Cyclohexanone (10 to 25), Acetone (10 to 25), PVC (Chloroethylene, Polymer) (12 to 20), Methyl ethyl ketone (5 to 15) Silica, Amorphous, Fumed, Crystalline to Free (1 to 4)
-
Form: Liquid
-
Boiling Point: 151 Deg F
-
Viscosity: 1200 - 2500 cPs
-
Functional Cure Time: 4 to 5 min (30 to 50 Deg F), 2 to 3 min (50 to 70 Deg F), 1 to 2 min (70 to 90 Deg F)
-
Applicable Materials: PVC
-
Shear Strength: 250 psi (2 hr), 500 psi (16 hr), 900 psi (72 hr)
-
Temperature Rating: 4 to 43 Deg C
-
Shelf Life: 3 yr
-
Specific Gravity: 0.88 - 0.92
-
Flash Point: 14 - 23 DEG F
-
VOC: 510 G/L
-
Industry Standards: NSF Standard 61 For PW, DWV And Sewer Waste, UPC IAPMO Certified, Meets California South Coast Air Quality Management District SCAQMD 1168/316A Or BAAQMD Method 40, Meets ASTM D-2564
-
Item Model Number: 30876
-
Part Number: 30876
-
For Use With: Upto 12 in Dia Schedule 40/80 PVC Pipe and Fittings
-
Setting Time: 4 to 5 min
-
Curing Time: 2 hr
-
Temperature Range: 40 to 110 deg F
-
Application: For potable water, pressure pipe and DWV applications
-
Standards/Approvals: ASTM D2564|IAPMO Listed|NSF 61 for PW|DWV and Sewer Waste|California South Coast Air Quality Management District (SCAQMD) 1168/316A or BAAQMD Method 40 and Various Environmental Requirements
-
Suitable For Use With: Upto 12 in Dia Schedule 40/80 PVC Pipe and Fittings
-
Flash Point Temperature: 14�F to 23�F (-10�C to -5�C)
-
Height: 4.5
-
Length: 3.5
-
Width: 3.5
-
Country of Origin: USA
-
Evaporation Rate: 5.5 - 8
-
Relative Density: 7.86 Plus/Minus 0.2 lb/gal
-
Vapor Density: 2.5
-
Vapor Pressure: 145 mm Hg at 20 deg C
-
Standards/Certifications: ASTM D2564, NSF 61 certified, SCAQMD 1168/316A, UL Greenguard, IAPMO, UPC listed
-
MfgNum: 30876
-
Vendor Name: Oatey
-
Manufacturer: OATEY COMPANY
