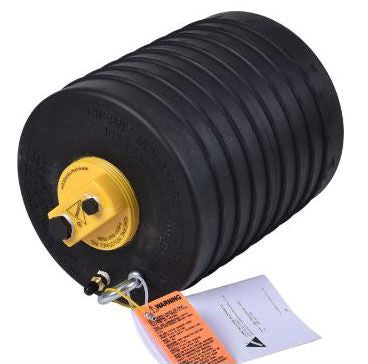

Oatey 262110 Muni-Ball Test Ball Plug 10 Inch

Product Description

The Oatey Muni-Ball 262110 is a test ball plug designed for sewer air testing in residential and commercial piping systems. This plug features a diameter of ten inches and a bypass connection of three inches with female threads. It is an essential tool for ensuring proper sealing and testing of plumbing systems.

• Constructed from durable natural rubber
• Operates at a maximum inflation pressure of thirty-five PSI
• Allows for testing back pressure up to thirteen PSI

Product Highlights

This test ball plug is suitable for pipes ranging from nine to ten and a quarter inches and can be inflated using a threaded valve connection of one quarter inch.

Product Information

Standard Information

• Type: Single size
• Operation Type: Pneumatic

Technical Specifications

• Plug/Ball Diameter: 10 inches
• Eye Bolt Size: 3/8 inch
• Number of Eye Bolts: 1
• Allowable Pressure Head: 30 feet
• Deflated Size: 8.75 inches diameter x 11.75 inches length
• Material: Natural rubber
