Product Description

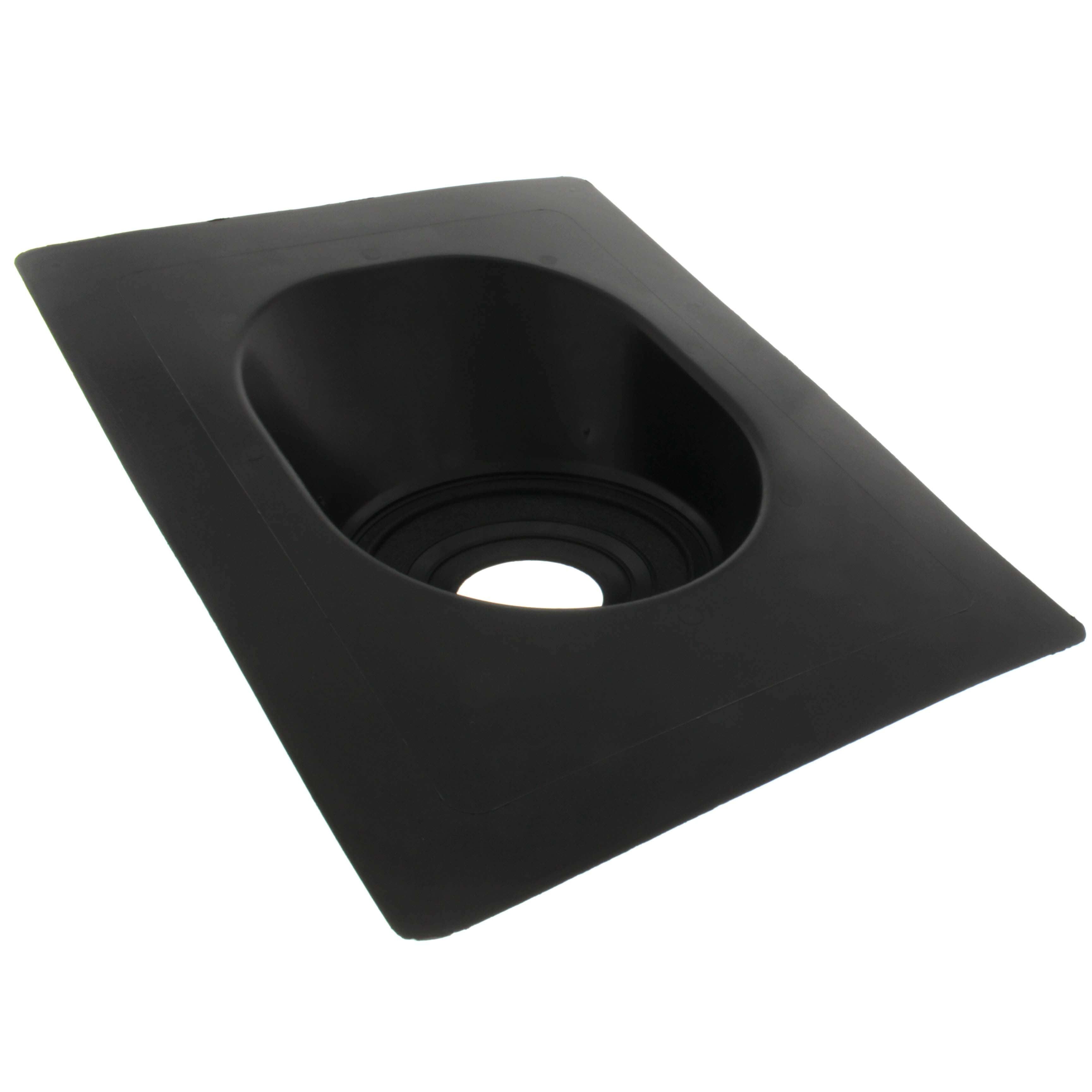

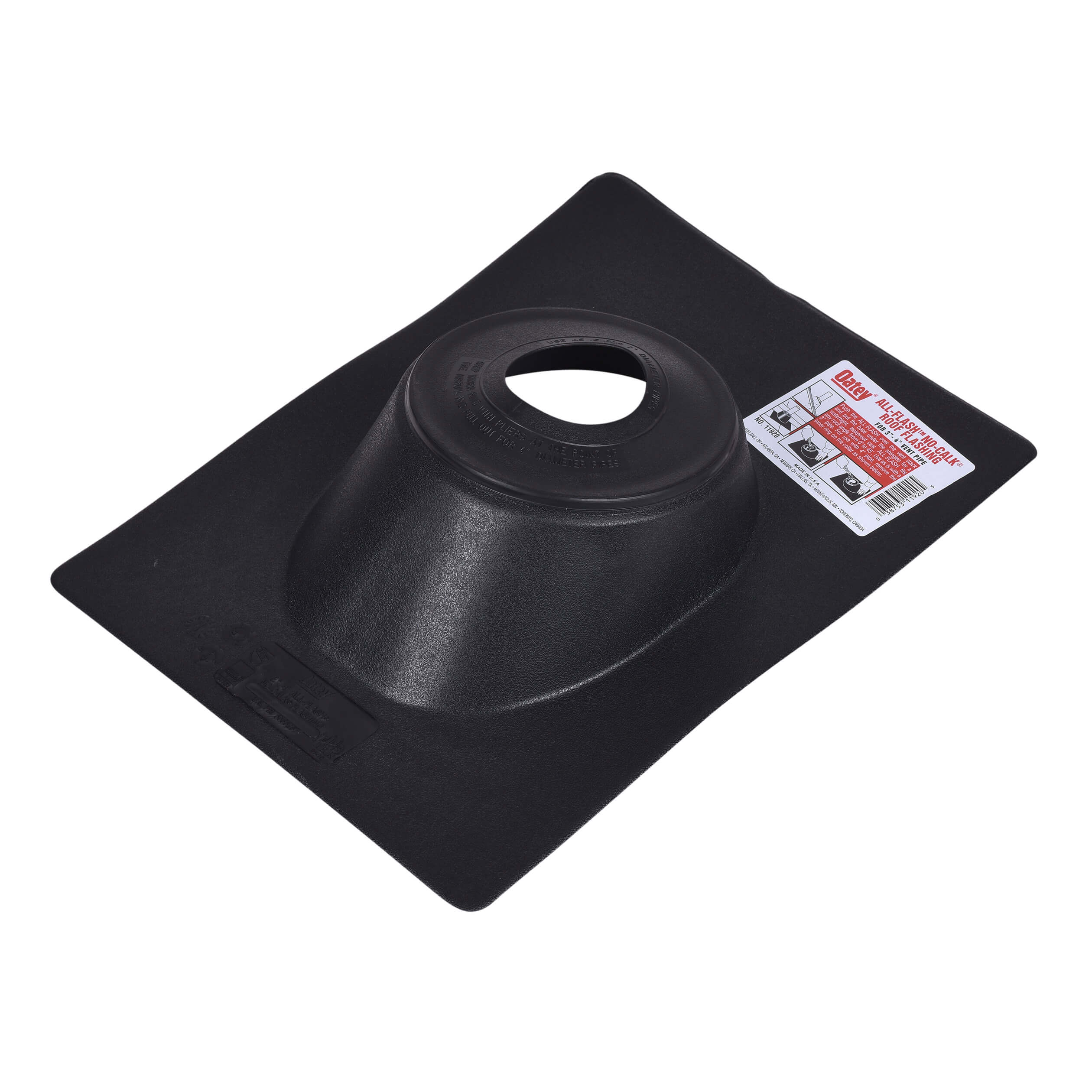

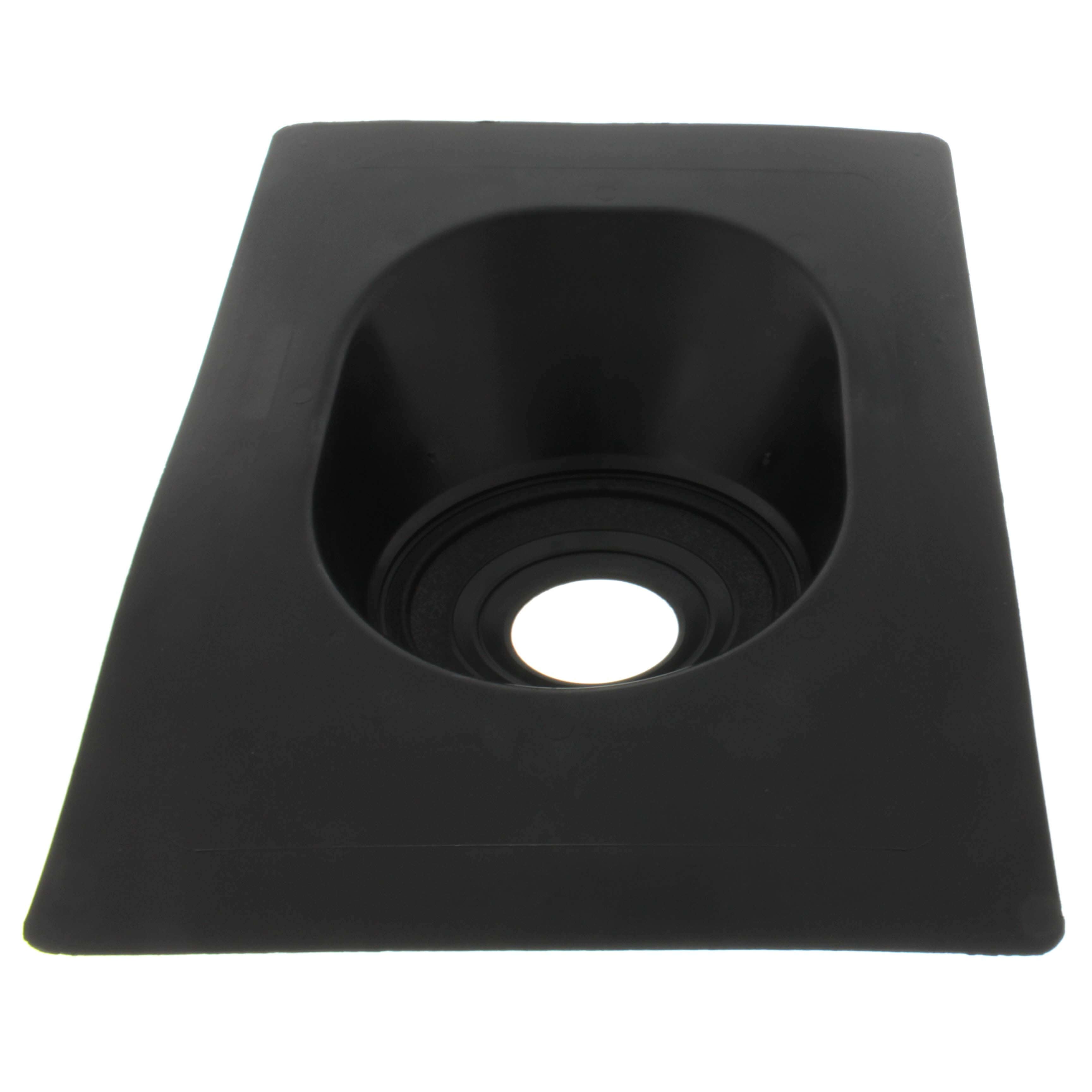

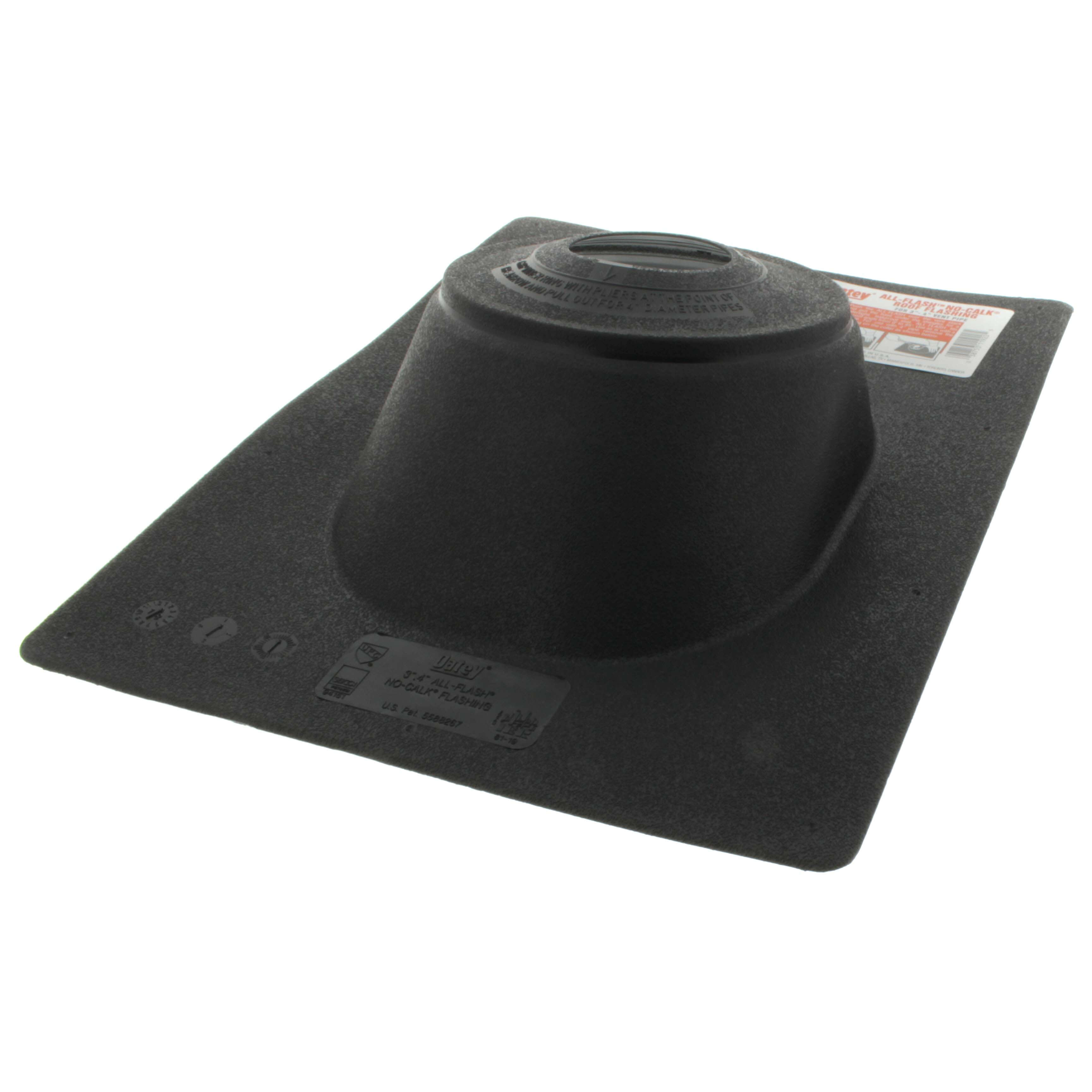

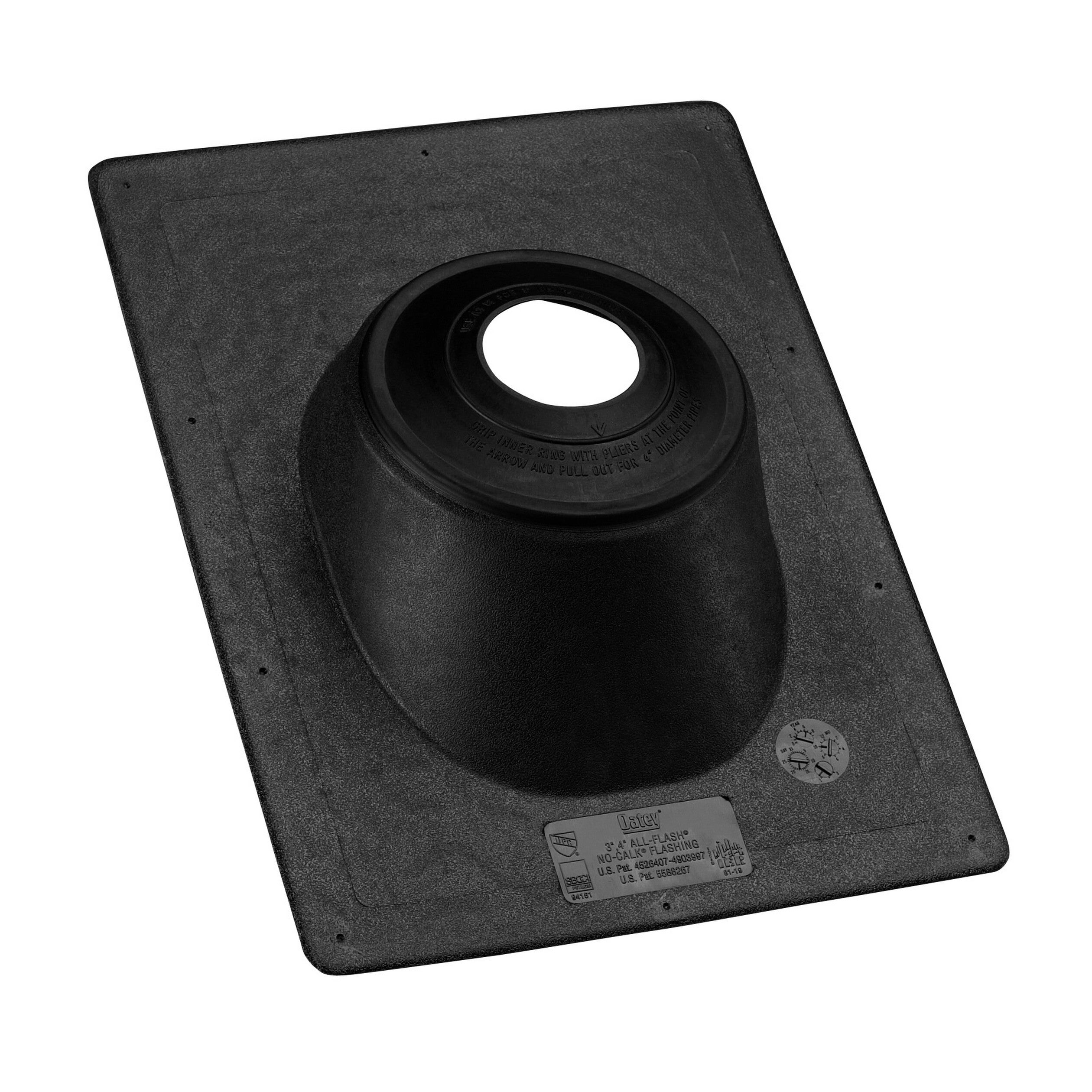

The OATEY 11920 Roof Flashing provides a watertight seal for roof penetrations around plumbing vent pipes. This thermoplastic flashing fits 3-Inch to 4-Inch pipes and is suitable for commercial and residential applications. It features a non-fading sealing collar and accommodates roof pitches from 0 to 45 degrees.
- Patented All-Flash design allows use on multiple pipe sizes
- Thermoplastic base
- Self-sealing collar slides over pipe and requires no caulking
Product Highlights
Durable thermoplastic construction ensures a reliable, long-lasting seal for roof vent pipes. Approved for Type B installations and rated to 180F continuous heat.
Product Information
Standard Information
-
Brand: OATEY
-
Manufacturer Part Number: 11920
-
Country of Origin: United States
Technical Specifications
-
Size: 3-Inch - 4-Inch
-
Color: Gray
-
Batteries Required?: No
-
Included Components: roof flashing
-
Manufacturer Part Number: 11920
-
Brand Name: OATEY
-
Applicable Standard: UPC, IAPMO, NES 653, ISO 9001
-
Pitch: 0 to 45 Degree
-
Overall Base Size: 16 Inch Length x 12 Inch Width
-
Material: Thermoplastic
-
Inclusions/Features: Non-Fading Sealing Collar
-
Temperature Rating: 180 Deg F
-
Application: Commercial, Residential
-
Item: Roof Vent Pipe Flashing
-
Features: No-Calk
-
Pipe Size: 3 in to 4 in
-
Standards: IAPMO (UPC), NES 653
-
Base Shape: Rectangular
-
Base Width: 12 in
-
Base Height: 16 in
-
Collar Type: Rubber
-
Top Opening: Open
-
Product Type: All-Flash No Calk
-
UV Protected: Yes
-
Base Diameter: Not Applicable
-
Base Material: Thermoplastic
-
For Roof Type: Pitched
-
Seal Material: Rubber
-
For Roof Angle: 45 Degrees
-
Base Dimensions: 16 in L x 12 in W
-
Material - Base: Plastic
-
Number of Pipes: 1
-
Pipe Size (In.): 3 to 4
-
Base/Cap Material: Thermoplastic / Rubber
-
Material Thickness: Not Applicable
-
Cap/Collar Material: Rubber
-
For Number of Pipes: 1
-
Base Characteristics: Thermoplastic
-
For Maximum Pipe Size: 4 in
-
For Minimum Pipe Size: 3 in
-
Base Size (Rectangular): 16 in L x 12 in W
-
Minimum Pipe Size Range: 0 to 5 in
-
Maximum Ambient Temperature: 180 Degrees F
-
Country of Origin (subject to change): United States
-
Model / MPN: 11920
-
Model: 11920
-
Type: Roof Flashing
