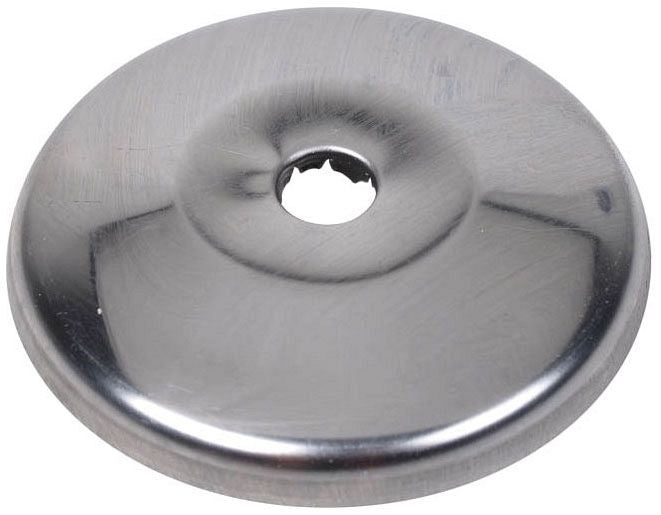

Oatey 1097 Shallow Escutcheon Chrome Plated 3/8 Inch Od

Product Description

The OATEY 1097 is a shallow escutcheon designed to provide a clean, finished appearance where a pipe or tube exits a wall or floor surface. The 1097 fits a 3/8 inch outer diameter tube and is sized for 1/4 inch nominal pipe, making it a common trim component in plumbing rough-in and finish work. The chrome-plated finish resists corrosion and blends with standard fixture hardware. Plumbers and finish installers use this escutcheon to cover the wall or floor opening around supply lines, creating a professional appearance on completed installations.

This shallow escutcheon is used in residential and light commercial plumbing applications where a low-profile cover plate is needed at pipe penetrations. Typical installations include supply line connections at sink valves, toilet stops, and similar fixture hook-ups where the escutcheon slides over the tubing and sits flush against the finished wall or floor surface. The shallow profile suits applications where clearance behind the escutcheon is limited.

Key Features

• Fits 3/8 inch OD tubing for 1/4 inch nominal pipe applications
• Shallow profile designed for low-clearance installations
• Chrome-plated finish for corrosion resistance and a clean aesthetic
• Covers wall or floor openings at pipe penetrations for a finished look

Compatibility

Designed as an OEM-style trim component for residential and light commercial plumbing installations requiring a shallow escutcheon at 3/8 inch OD pipe or tube penetrations.

Installation Notes

Installation is performed by a licensed plumber or qualified finish installer. Slide the escutcheon over the tubing before making final supply connections, as it cannot be installed after the fitting is secured. Shut off the water supply before performing any work at the connection point. No special tools are required; avoid overtightening any set screw or locking mechanism to prevent finish damage.

Technical Specifications

• Tube OD: 3/8 inches
• Nominal Pipe Size: 1/4 inch
• Profile: Shallow
• Finish: Chrome Plated

Standard Information

• Brand: OATEY
• Manufacturer Part Number: 1097
