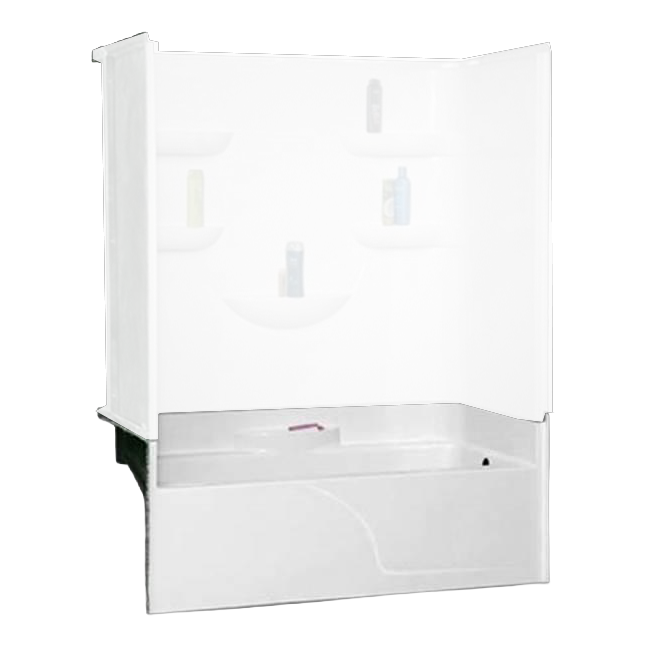

Oasis TS4P-6032R WHT ABF BOTTOM Vursa kd Series Remodel Base Tub/Shower 60 in x 32 in

Product Description

The Oasis TS4P-6032R WHT ABF BOTTOM is a remodel base tub/shower bottom from the VURSA kd Series that measures 60 in length by 32 in width with a 51 in x 22 in x 13-1/4 in bathing well. The fiberglass unit has a gelcoat finish, a 0.50 in balsa wood core floor structure, and a textured floor pattern. It is floor-mounted and includes a right-side 2 in drain and a 2-1/2 in overflow.

• Dimensions: 60 in L x 32 in W; bathing well 51 in L x 22 in W x 13-1/4 in H; tub depth 13-1/4 in
• Construction: fiberglass with gelcoat finish and 0.50 in balsa wood core floor structure; textured floor pattern
• Drain and overflow: right-side 2 in drain with 3 in drain height; 2-1/2 in overflow hole at 15 in; water capacity 42 gal

Product Highlights

60 in x 32 in floor-mounted remodel base; fiberglass with gelcoat; right-side 2 in drain; 42 gallon capacity

Product Information

Standard Information

• Brand: OASIS
• Manufacturer Part Number: TS4P-6032R WHT ABF BOTTOM

Technical Specifications

• Brand: Oasis
• Manufacturer Part Number: TS4P-6032R WHT ABF BOTTOM
• Series: VURSA kd Series
• Material: Fiberglass
• Finish: Gelcoat
• Mounting Type: Floor
• Length: 60 in
• Width: 32 in
• Bathing Well Size: 51 in L x 22 in W x 13-1/4 in H
• Tub Depth: 13-1/4 in
• Sump Dimension: 51.0 in long x 22.0 in wide x 13.25 in deep
• Water Capacity: 42 gal
• Drain Size: 2 in
• Drain Height: 3 in
• Drain Location: Right
• Overflow Hole: 2-1/2 in
• Overflow Height: 15 in
• Floor Core: 0.50 in balsa wood core
• Textured Floor: Textured floor pattern
• Note: Base unit and walls must be ordered separately
