Oasis Sh4p-6030rs Wht Abf Bottom Shower Base 60x30 White

Product Description

The OASIS sh4p-6030rs wht abf bottom is the replacement base section for the VURSA kd Series four-piece shower system, sized at 60 inches by 30 inches with an integral right-hand seat and a left-hand drain. Built from fiberglass with a sanitary-grade white gelcoat finish, this base features a 6-inch ABF dam and a 3-3/8-inch drain connection. The floor-mount design fits within the ABF shower system rough-in envelope of 78-1/4 inches high by 60 inches wide by 31-1/4 inches deep. This section is installed by licensed plumbers or qualified shower installers during remodel applications.

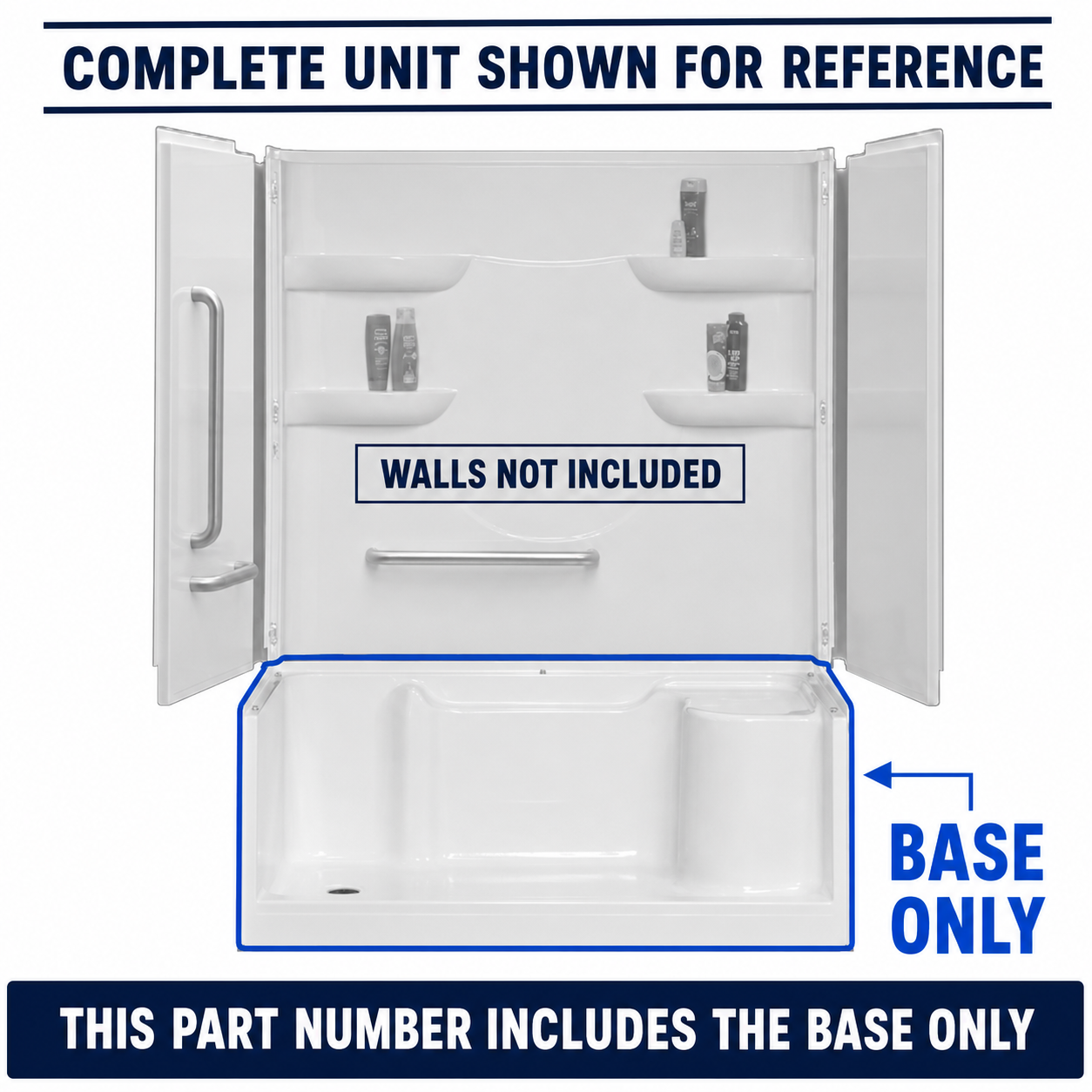

This base is intended for remodel shower installations where the existing VURSA kd Series four-piece unit requires a replacement bottom section. The unit accommodates a left-hand drain and includes a contoured right-hand seat integrated directly into the base. The opening size for the complete ABF shower system is 71 inches high by 56-3/4 inches wide. This listing covers the base section only. Wall panels, enclosure components, plumbing trim, and hardware are not included and must be sourced separately.

Key Features

• Fiberglass construction with white gelcoat finish for a durable, cleanable surface
• Integral contoured right-hand seat molded into the base
• 6-inch ABF dam for water containment
• Left-hand drain location with a 3-3/8-inch drain connection
• Floor-mount installation for remodel applications
• Part of the VURSA kd Series four-piece shower system

Compatibility

Designed as a replacement base section for the OASIS VURSA kd Series four-piece 60 x 30 shower configuration with a right-hand seat and left-hand drain. Rough-in dimensions for the complete ABF shower system are 78-1/4 inches high by 60 inches wide by 31-1/4 inches deep. All dimensions are subject to the manufacturer's stated tolerances.

Installation Notes

Installation of this shower base is typically performed by a licensed plumber or qualified tile and shower installer. Shut off the water supply and verify drain rough-in location and size before setting the base. Follow local plumbing code requirements for drain connections and waterproofing at the base perimeter. Wall sections and remaining components of the four-piece system must be installed per the manufacturer's assembly sequence.
