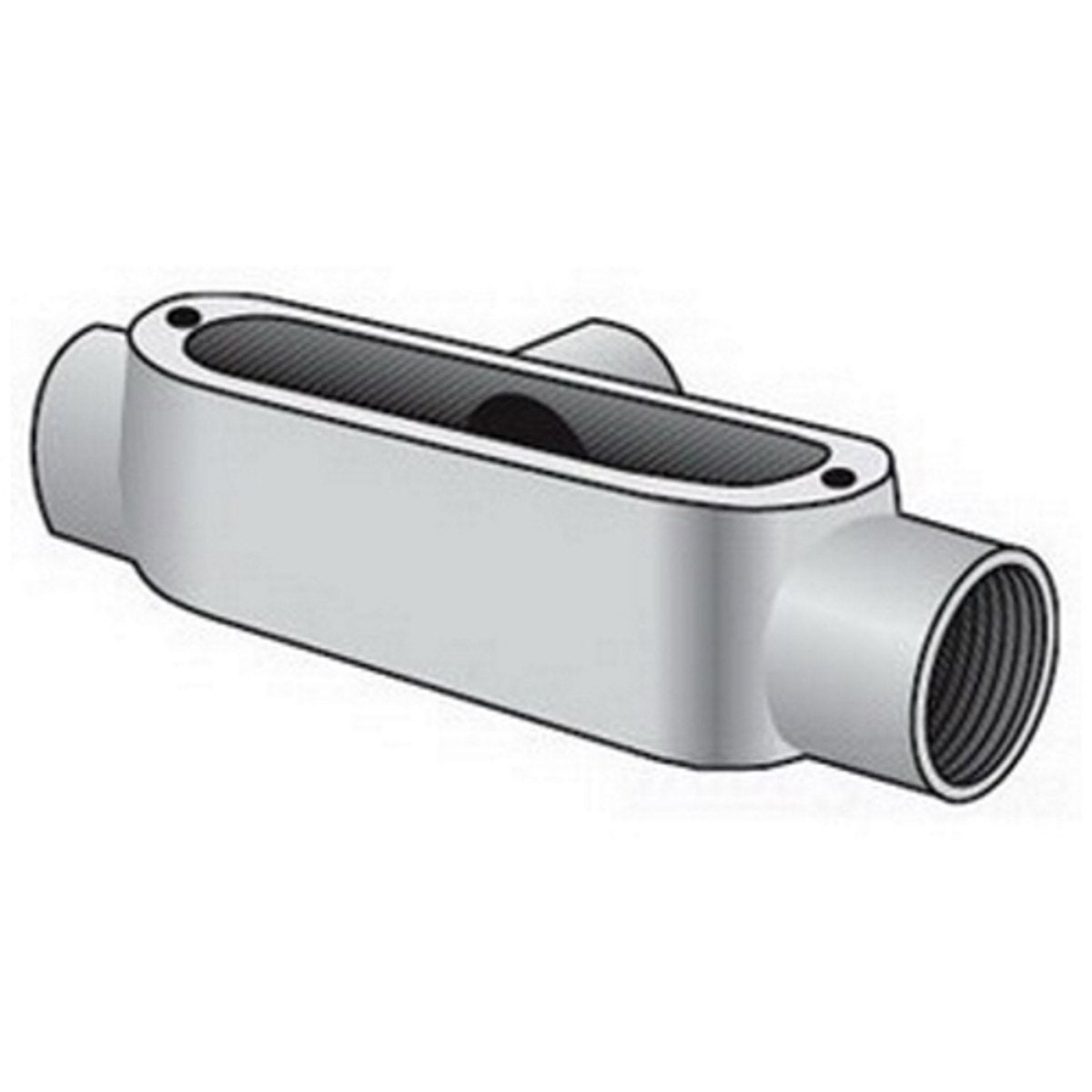

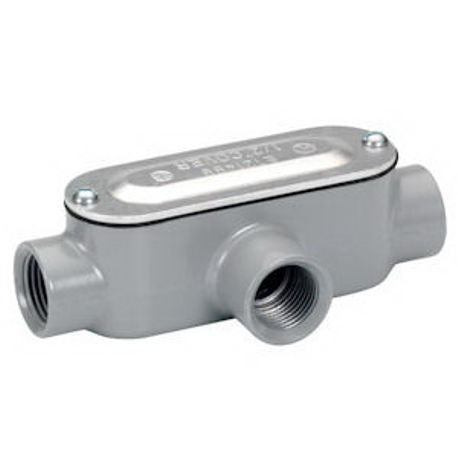

O-Z/Gedney T-150 Conduit Body 1-1/2 IN Hub 36 CU-IN

Product Description

The O-Z/Gedney T-150 is a conduit body designed for use with rigid conduit and IMC systems. This product features a one and a half inch hub and a volume of thirty-six cubic inches, making it suitable for various electrical conduit configurations.

• Material: Malleable Iron with Zinc Electroplated Finish
• Hub Size: 1-1/2 inches with Tapered FNPT Connection
• Dimensions: Length of nine and a quarter inches, height of two and three quarter inches

Product Highlights

This conduit body allows for connections in conduit systems, facilitating straight runs and branch runs, as well as enabling maintenance access to conductors.

Product Information

Standard Information

• Catalog Number: T-150
• Manufacturer: O-Z/Gedney

Technical Specifications

• Application: For Rigid Conduit and IMC
• Connection: Tapered FNPT
• Material: Malleable Iron
• Finish: Zinc Electroplated with Aluminum Enamel
• Hub Size: 1-1/2 inches
• Dimensions: 9-1/4 inches Length x 2-3/4 inches Height
• Number of Hubs: 3
• Volume: 36 cubic inches
• Standards: UL 514A, CSA C22.2
