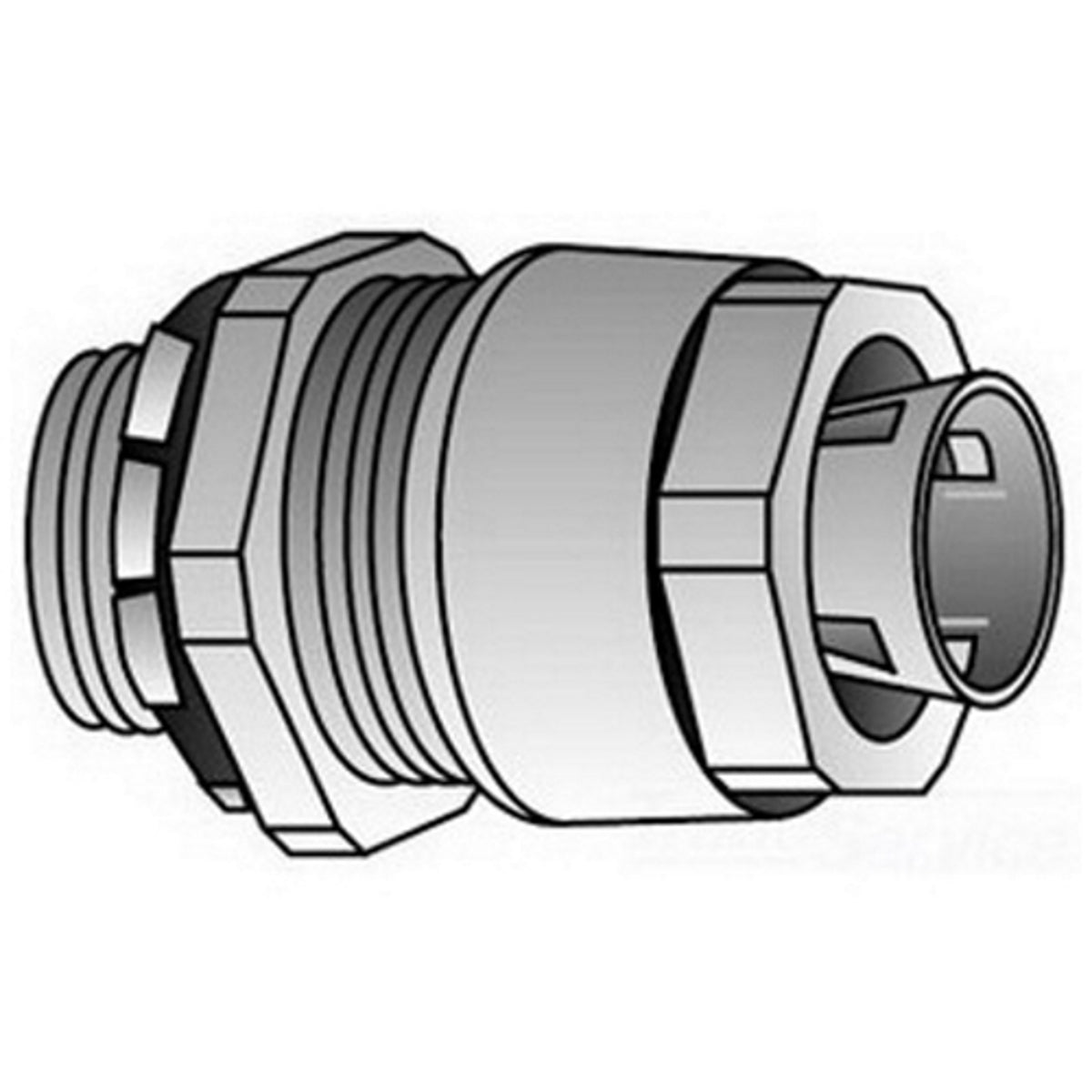

O-Z/Gedney SR75625 O-Z/Gedney SR-75-625 3/4 Inch Straight Strain Relief Connector

Product Description

The O-Z/Gedney SR75625 is a straight strain relief connector designed for securing and sealing cords or cables entering enclosures or raceways. This connector features a malleable iron body and gland nut, providing durability and reliability. It is suitable for use with conductors ranging from 0.5 to 0.625 inches, making it versatile for various applications.

• Type SR Grip-Tite design
• Temperature rating of ninety degrees Celsius
• Zinc-plated finish for corrosion resistance

Product Highlights

This connector is ideal for electrical applications requiring secure cable management. It includes a nylon gripper and neoprene grommet for enhanced sealing capabilities.

Product Information

Standard Information

• Brand: O-Z/Gedney
• Manufacturer: OZ-Gedney Co.

Technical Specifications

• Catalog Number: SR-75-625
• Size: 3/4 Inch
• Conductor Range: 0.5 - 0.625 Inch
• Material: Malleable Iron
• Finish: Zinc Plated
• Enclosure rating: NEMA 4
• TC Connection: Tapered MNPT
• Temperature Rating: 90 degrees C
