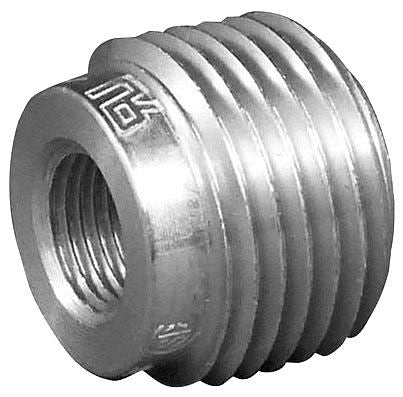

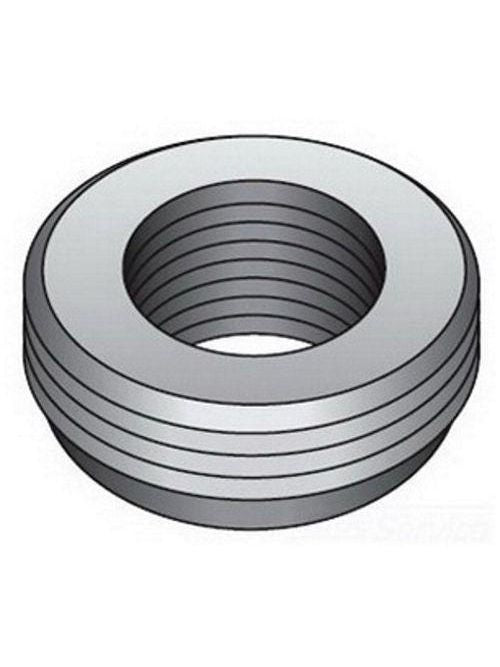

O-Z/Gedney RB-334 2 to 3/4 Inch Malleable Iron NPT Reducing Bushing

Product Description

O-Z/Gedney RB-334 is a reducing bushing made from malleable iron. It has sizes of two inches to three fourths inches and is designed for threaded rigid conduits and IMC applications. This reducing bushing features a tapered NPT thread and a zinc electroplated finish, giving it durability against corrosion.

• Compatible with threaded rigid conduit and IMC.
• Flush mounting design ensures a secure connection.
• Third-party certified for hazardous locations.

Product Highlights

This reducing bushing is ideal for reducing the trade size of tapped holes or hubs, providing flexibility in wiring solutions.

Product Information

Standard Information

• Brand: O-Z/Gedney
• Manufacturer: OZ-Gedney Co.

Technical Specifications

• MPN: RB-334
• Material: Malleable Iron
• Connection: Tapered NPT Thread
• Body Length: 7/8 inches
• Approval: UL 886, CSA C22.2
• Enclosure: Class I Div 1 2 Group B C D, Class I Zone 1 2 Group IIA IIB + H2, Class II Div 1 2 Group E F G, Class III
• Large End Trade Size: 2 inches
• Small End Trade Size: 3/4 inches
