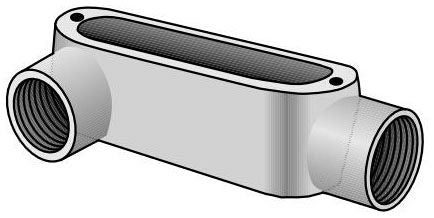

O-Z/Gedney LR-50 1/2 Inch LR Iron Conduit Body

Product Description

The O-Z/Gedney LR-50 is a type LR iron conduit body. It is designed for use with rigid conduit and intermediate metal conduit (IMC). This conduit body features a half-inch hub and is made from malleable iron. The length measures four and five-eighths inches, while the height is one and three-eighths inches. The product is zinc electroplated and finished with aluminum enamel for durability.

• Malleable iron construction for enhanced strength.
• UL and CSA certified for safety compliance.
• Compatible with other manufacturers' style 5 or 35 conduit bodies.

Product Highlights

The O-Z/Gedney LR-50 conduit body offers reliable access for pulling and splicing wires in electrical applications. It allows for connecting straight conduit runs, branches, and bends.

Product Information

Standard Information

• Brand: O-Z/Gedney
• Manufacturer: Emerson Electric

Technical Specifications

• Hub Size: 1/2 inch
• Material: Malleable iron
• Finish: Zinc electroplated with aluminum enamel
• Height: 1-3/8 inches
• Length: 4-5/8 inches
• Volume: 4 cubic inches
• Approval: UL 514A, CSA C22.2
• Connection Type: Tapered FNPT
