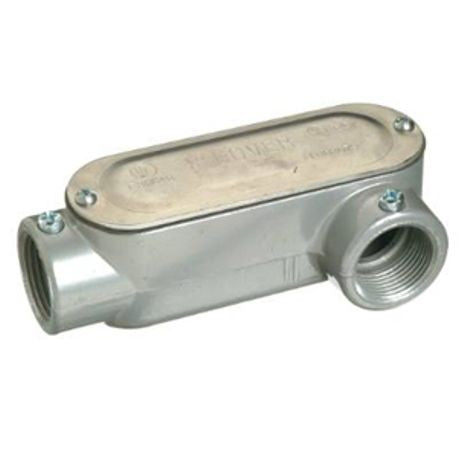

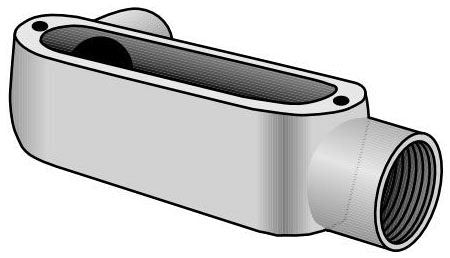

O-Z/Gedney LL-75 3/4 Inch LL Iron Conduit Body

Product Description

The O-Z/Gedney LL-75 is a three fourth inch LL iron conduit body designed for efficient electrical installations. It features a hub size of three fourths inches and is made from malleable iron with a zinc electroplated aluminum enamel finish.

• Raintight when used with gasketed covers
• Can accommodate three conductors up to six AWG
• Rated for use with rigid conduit and IMC

Product Highlights

The LL-75 allows for easy access for conductors, facilitating pulling, splicing, and maintenance. This conduit body connects straight and branch conduit runs and features a left side access opening.

Product Information

Standard Information

• Brand: O-Z/Gedney
• Manufacturer: Emerson Electric

Technical Specifications

• MPN: LL-75
• Type: LL Conduit Body
• Material: Malleable Iron
• Height: 1-5/8 inches
• Length: 5-3/8 inches
• Hub Size: 3/4 inch
• Volume: 7 cu-in
• Approval: UL 514A, CSA C22.2
• Connections: Tapered FNPT
