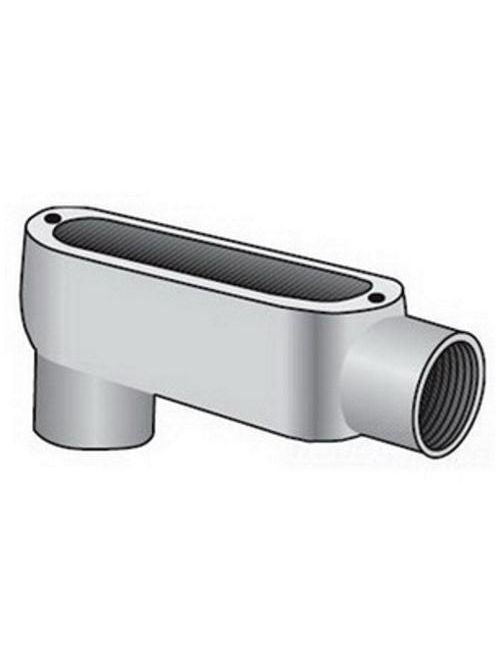

O-Z/Gedney LB-75 O-Z/Gedney LB-75 3/4 Inch LB Iron Conduit Body

Product Description

The O-Z/Gedney LB-75 is a three-quarter inch LB iron conduit body designed for high durability. This conduit body features malleable iron construction with a zinc electro-plated aluminum enamel finish. It is ideal for providing access to conductors for pulling, splicing, and maintenance tasks.

• Compatible with other manufacturers' style 5 and 35 conduit bodies.
• Raintight when used with gasketed covers.
• Designed for installation with rigid conduit and intermediate metal conduit (IMC).

Product Highlights

This conduit body is suitable for use in concrete and allows connections for straight conduit runs, branch conduit runs, and bends at ninety degrees. The internal volume and wire capacity are marked clearly on the casting.

Product Information

Standard Information

• Brand: O-Z/Gedney
• Manufacturer: OZ-Gedney Co.

Technical Specifications

• Type: Type LB Conduit Body
• Material: Malleable Iron
• Length: 5-3/8 inches
• Hub Size: 0.75 inches
• Applications: For Rigid Conduit and IMC
• Hub Location: 90 Degrees
• Approval: UL 514A, CSA C22.2
• Number Of Hubs: 2
