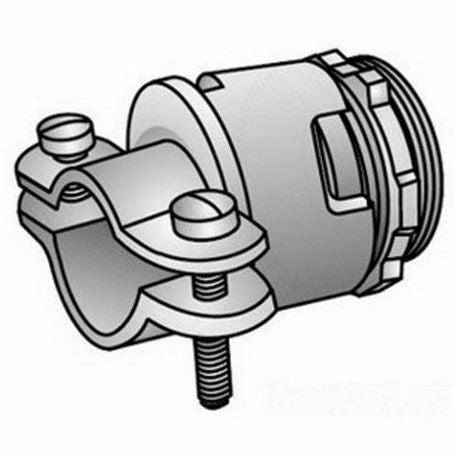

O-Z/Gedney KC-75 3/4 Inch 2 Screw Connector

Product Description

The O-Z/Gedney KC-75 is a 3/4 inch 2 screw connector designed for various electrical applications. This connector features a male NPS hub connection with a screw clamp. It supports conductor ranges from seven-eighths inch to thirteen-thirty-second inch. Constructed from malleable iron, it has a zinc electroplated finish for durability.

• Type KC center stopped design
• Dimensions: one and eleven-sixteenths inches length by two and one-eighth inches width
• Approved for use with armored cable and flexible metal conduit

Product Highlights

This connector is suitable for grounding and securing armored cable, flexible metal conduit, and interlocked metal clad cables to boxes and enclosures. It also secures non-metallic and service entrance cables.

Product Information

Standard Information

• Brand: O-Z/Gedney
• Manufacturer: OZ-Gedney Co.

Technical Specifications

• Type: Type KC Center Stopped 2-Screw Clamp Connector
• Size: 3/4 inch
• Material: Malleable Iron
• Finish: Zinc
• Trade Size: 3/4 Inch
• Conductor Range: 7/8 - 13/32 inch
• Application: For Armored Cable, Flexible Metal Conduit, Interlocked Metal Clad Cables, Non-Metallic and Service Entrance Cable
• Connection Type: Male NPS Hub X Screw Clamp
