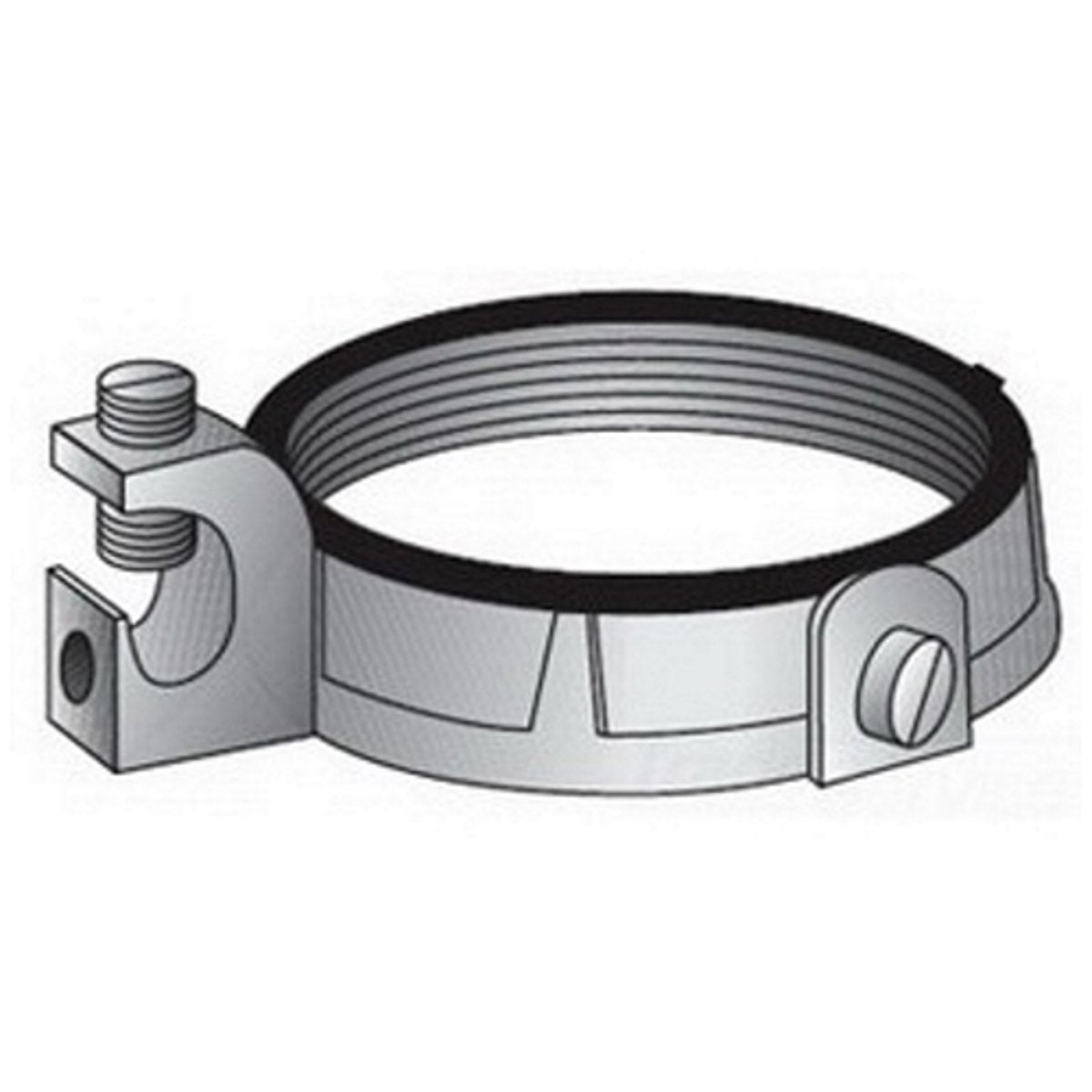

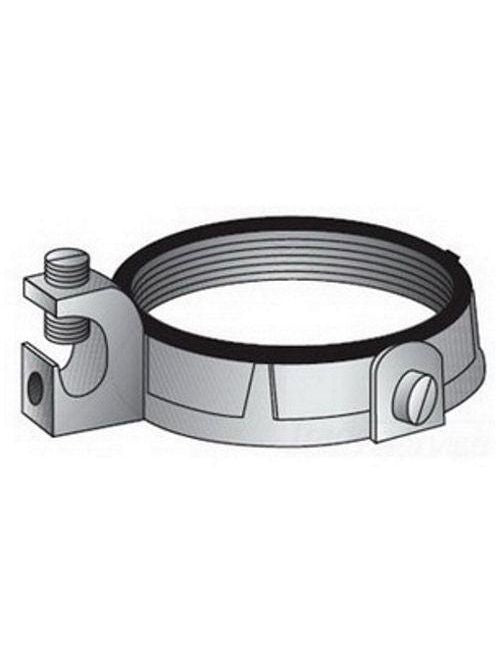

O-Z/Gedney IBC-300L-20AC Type IBC-L-AC Grounding Bushing, 14 to 2/0 AWG AC Cable, 3 In Trade, Aluminum/Malleable Iron/Steel, Zinc/Tin Plated

Product Description

The O-Z/Gedney IBC-300L-20AC is a three-inch insulated grounding bushing designed for use with rigid conduit and intermediate metal conduit (IMC). This bushing features a malleable iron body and an aluminum lug, providing durability and reliability in grounding applications.

• Threaded connection for secure installation
• UL listed for use with copper or aluminum grounding conductors
• Temperature rated up to one hundred fifty degrees Celsius

Product Highlights

This grounding bushing is ideal for protecting wires and cables at conduit entry and exit points. It ensures effective grounding and minimizes risk of electrical faults.

Product Information

Standard Information

• Catalog Number: IBC-300L-20AC
• Manufacturer: O-Z/Gedney

Technical Specifications

• Type: Type IBC-L-AC Insulated Grounding Bushing With Lug
• Finish: Zinc Plated Body, Tin Plated Lug
• Material: Malleable Iron Body, Aluminum Lug, Steel Clamping Screw And Set Screws
• Trade Size: 3 Inch
• Connection: Threaded
• Temperature Rating: 150 Degrees Celsius
• Applications: For Rigid Conduit And IMC
• UPC: 783126303315
• GTIN: 00783126303315
