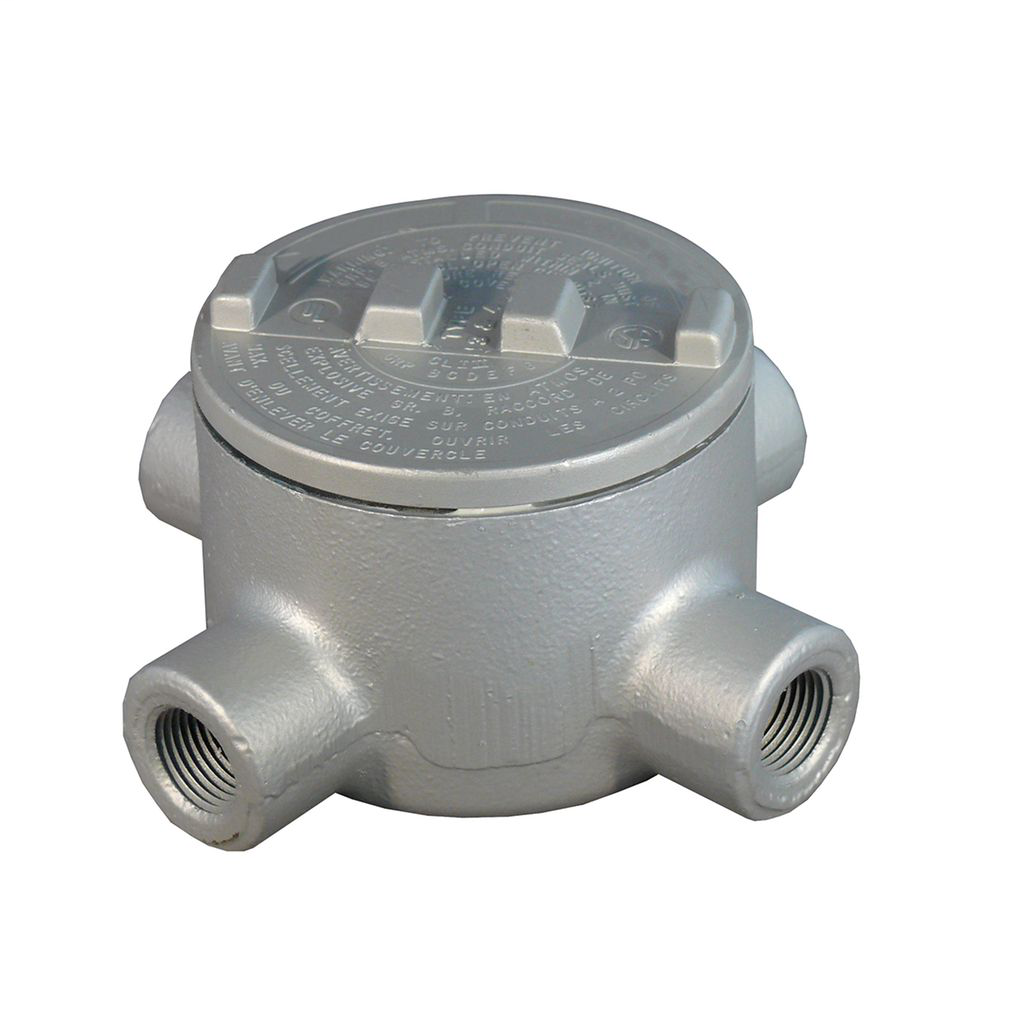

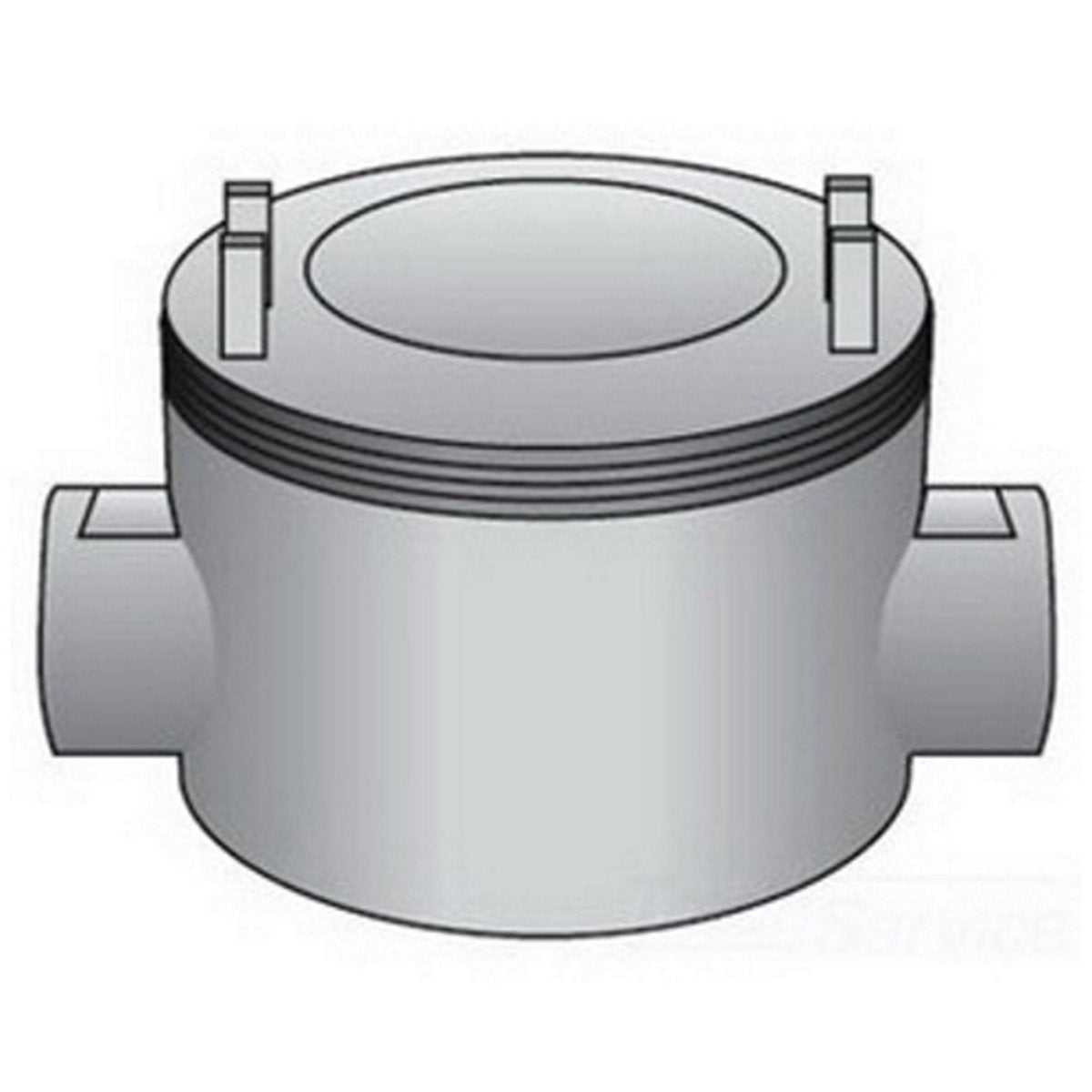

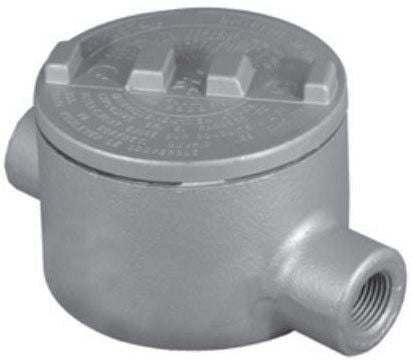

O-Z/Gedney GUAC-75 3/4 Inch Aluminum Cover Malleable Iron Body Conduit Outlet Box

Product Description

The O-Z/Gedney GUAC-75 is a 3/4 inch aluminum cover conduit outlet box designed for hazardous locations. This outlet box features a malleable iron body ensuring durability and safety in explosive environments. It includes an internal ground screw and O-ring to maintain NEMA 4 rating. The GUAC-75 provides easy access to conductors for pulling, splicing, and maintenance, accommodating straight conduit runs, branch conduit runs, and 90-degree bends.

• Conduit outlet box suitable for hazardous locations
• Internal ground screw and O-ring included
• Constructed from copper-free aluminum and malleable iron for durability

Product Highlights

This outlet box is specifically designed for Rigid Conduit and IMC applications, ensuring safety and reliability in electrical installations.

Product Information

Standard Information

• Brand: O-Z/Gedney
• Manufacturer: OZ-Gedney Co.

Technical Specifications

• Trade Size: 3/4 Inch
• Cable Entry: (2) 3/4 IN Hubs
• Cubic Capacity: 15 CU IN
• Material: Copper-free Aluminum, Iron
• Enclosure: Class I Division 1 and 2, Groups C, D
• Approval: UL 886, CSA C22.2
• Finish: Aluminum, Chromate, Epoxy Powder Coat
• Special Features: Explosionproof, dust-ignitionproof
