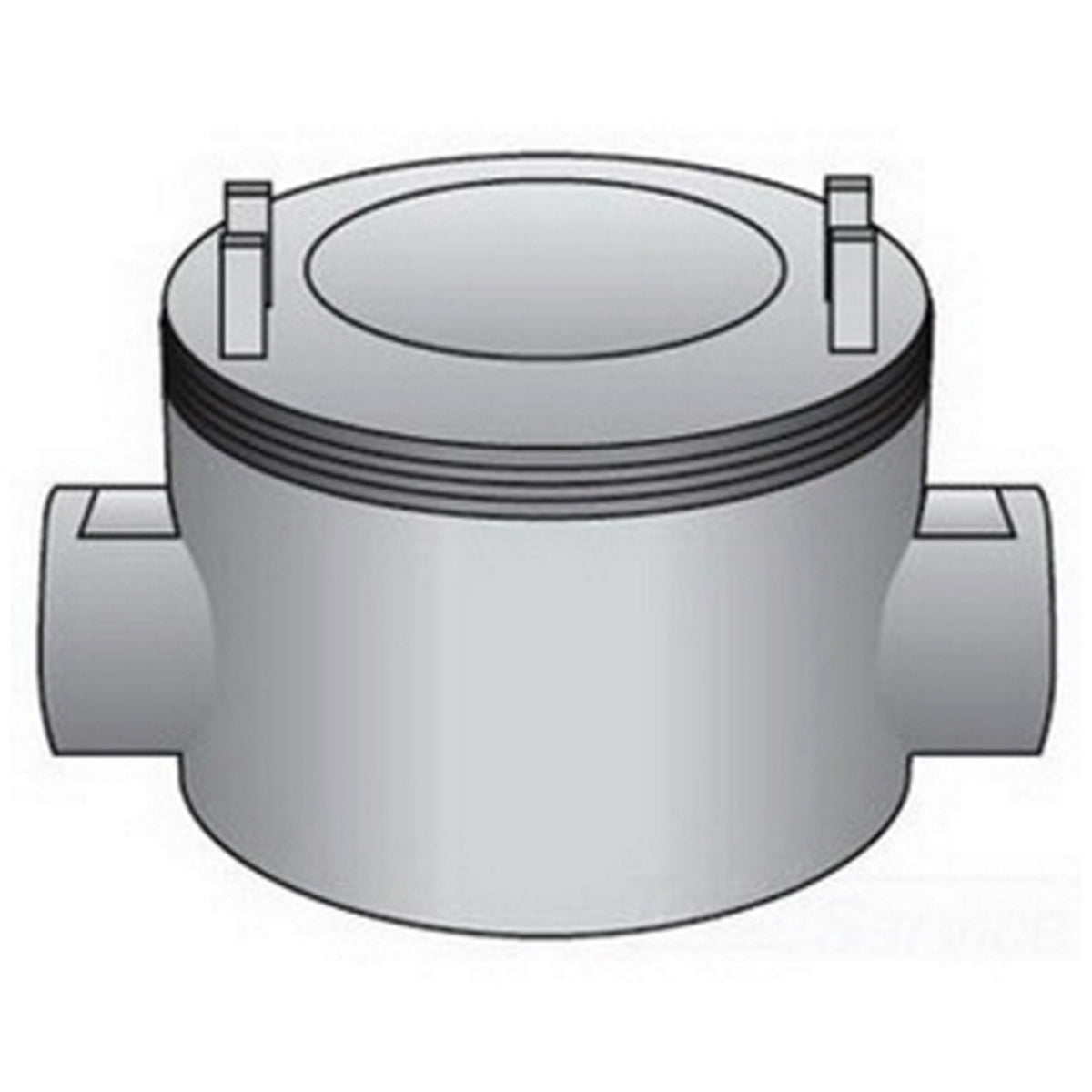

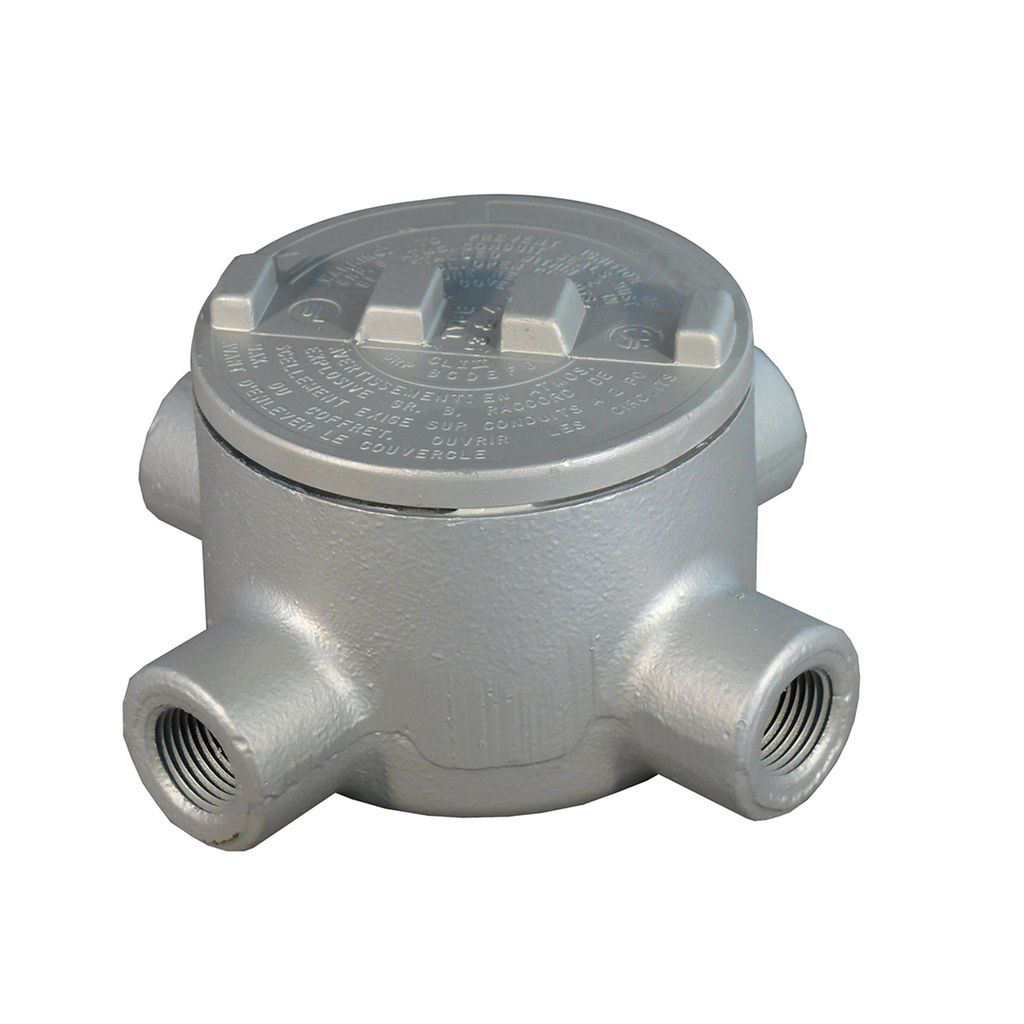

O-Z/Gedney GUAC-125 OZG GUAC-125 HAZ LOC COND OUTL BX 1-1/4 IN

Product Description

O-Z/Gedney GUAC-125 is a conduit outlet box designed for use in hazardous locations. The GUAC-125 features an internal ground screw and O-ring gasket. This box allows access to conductors for pulling, splicing, maintenance, and future changes.

• Explosionproof and dust-ignitionproof
• Accurately tapped for tight, rigid joints
• Includes covers for added protection

Product Highlights

This conduit outlet box is ideal for installations in hazardous environments. Use it for connections of straight conduit runs as well as branch runs and bends.

Product Information

Standard Information

• Brand: O-Z/Gedney
• Manufacturer: O-Z/Gedney Co.

Technical Specifications

• Catalog Number: GUAC-125
• Type: Type GUAC Conduit Outlet Box
• Material: Copperfree Aluminum, Iron
• Finish: Aluminum, Chromate, Epoxy Powder Coat
• Size: 1-1/4 IN
• Applications: For Rigid Conduit And IMC
• Cable Entry: (2) 1-1/4 IN Hubs
• Cubic Capacity: 30 CU IN
