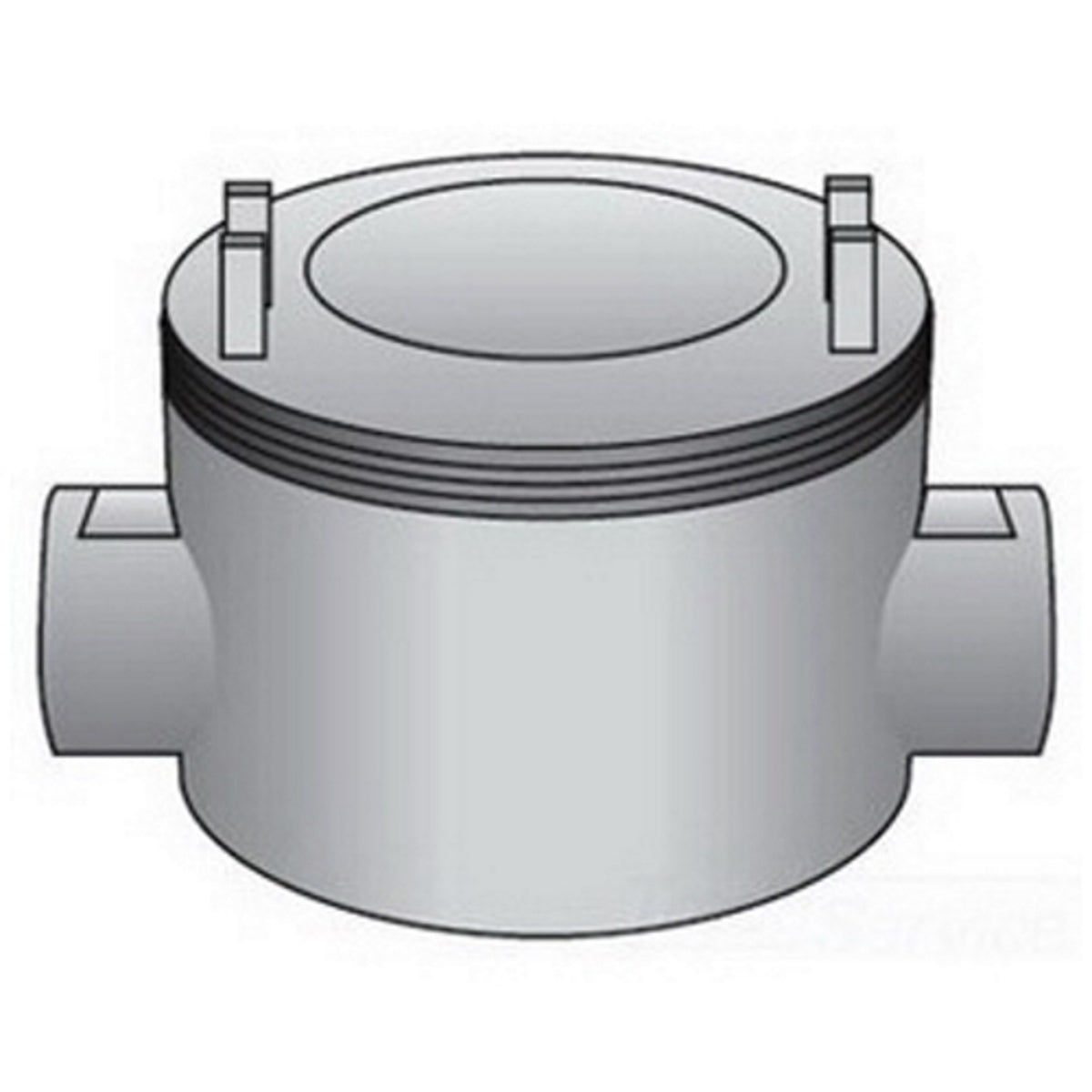

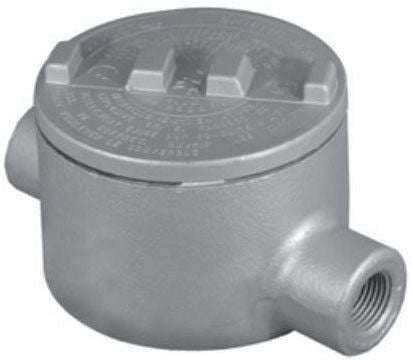

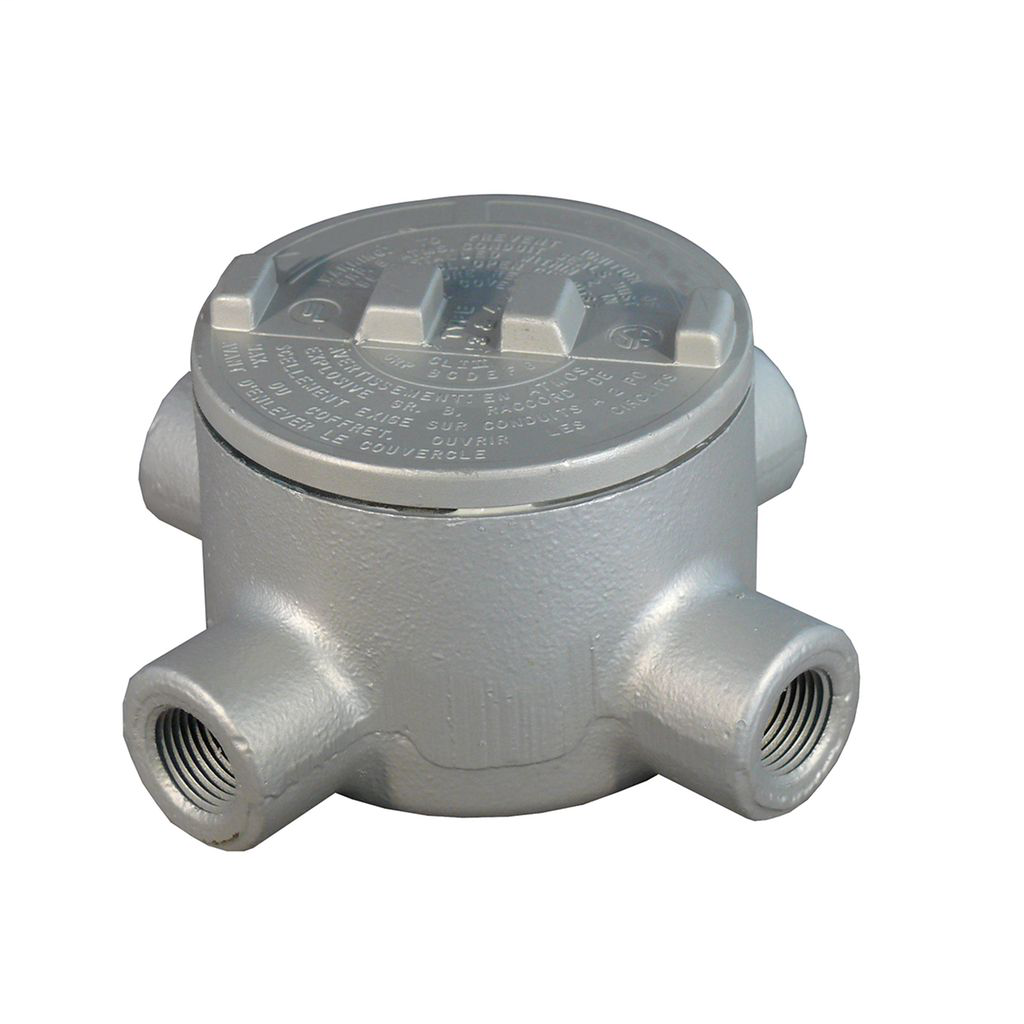

O-Z/Gedney GUAC-100 Hazardous Location Conduit Outlet Box

Product Description

The O-Z/Gedney GUAC-100 is a conduit outlet box designed for hazardous locations. It features an internal ground screw and O-ring, ensuring safe access for conductors during installation or maintenance. This box is suitable for straight conduit runs, branch conduit runs, and 90-degree bends.

• Explosionproof and dust-ignitionproof
• Furnished with covers and internal ground screw
• Malleable iron construction provides high strength and resistance to corrosion

Product Highlights

This product allows easy changes and upgrades of conduit systems in critical environments.

Product Information

Standard Information

• Brand: O-Z/Gedney
• Manufacturer: OZ-Gedney Co.

Technical Specifications

• Catalog Number: GUAC-100
• Trade Size: 1 Inch
• Material: Malleable Iron Body, Copper-Free Aluminum Cover
• Cable Entry: (2) 1 Inch Hubs
• Cubic Capacity: 17 CU Inch
• Certification: UL E-30513, Class I, Division 1 and 2, Group C, D
• Application: For Rigid Conduit And IMC
• Special Features: O-ring gasket for NEMA 4 rating
