Product Description

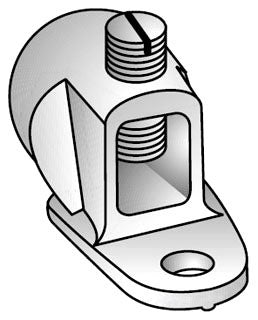

The O-Z/Gedney GH-100B is a Type GH swivel ground hub designed to secure grounding conductors. This grounding clamp is compatible with universal ground clamps and is suitable for various applications, including bare and armored conductors running in conduits.
- Conductor size range: 1 AWG to 250 KCMIL
- Durable cast bronze construction with brass screws
- UL certified, File Number E24264
Product Highlights
The GH-100B is a reliable solution for grounding needs, offering strong mechanical connections and versatility in installation.
Product Information
Standard Information
-
Brand: O-Z/Gedney
-
Manufacturer: OZ-Gedney Co.
Technical Specifications
-
Type: Type GH Swivel Ground Hub
-
Size: 1 IN
-
Length: 1-1/2 IN
-
Conductor Size: 1 AWG - 250 KCMIL
-
Construction Material: Cast Bronze
-
Screws: Brass
-
Height: 2-3/16 IN
-
Dimension B: 2-1/8 IN
-
Dimension D: 3/8 IN
