O-Z/Gedney G-800B Universal Ground Clamp

Product Description

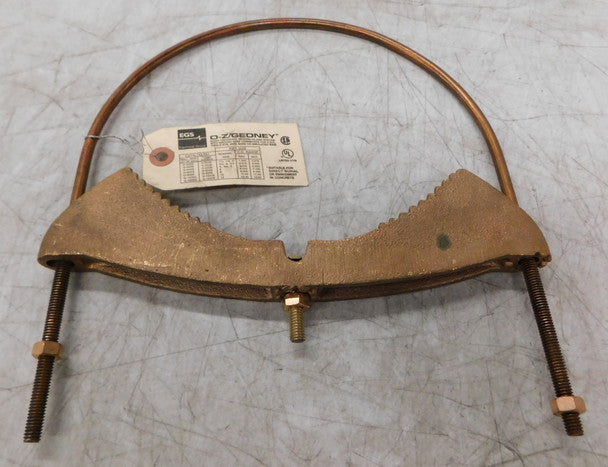

The O-Z/Gedney G-800B Universal Ground Clamp is designed to connect grounding conductors to cold water ground pipes. This clamp is constructed from cast bronze for durability and long-lasting performance. It features silicon bronze bolts and nuts. The length of this clamp is ten and five-eighths inches, with a height of eleven and thirteen-sixteenths inches. The thickness is seven-eighths of an inch, and it is suitable for ground pipe sizes with an outside diameter ranging from eight to nine point three inches.

• Type G Universal Ground Clamp
• UL certified for safety
• Includes a five-sixteenth inch U-bolt

Product Highlights

This product provides a reliable solution for grounding applications, ensuring safety and compliance.

Product Information

Standard Information

• Brand: O-Z/Gedney
• Manufacturer: OZ-Gedney Co.

Technical Specifications

• Product ID: 97622
• Length: 10-5/8 inches
• Size: 8 inches
• Height: 11-13/16 inches
• Thickness: 7/8 inch
• Ground Pipe Size OD: 8 - 9.3 inches
• U-Bolt Size: 5/16 inch
• Third Party Certification: UL File Number E-2426
