O-Z/Gedney EYA-50 Explosionproof Conduit Seal

Product Description

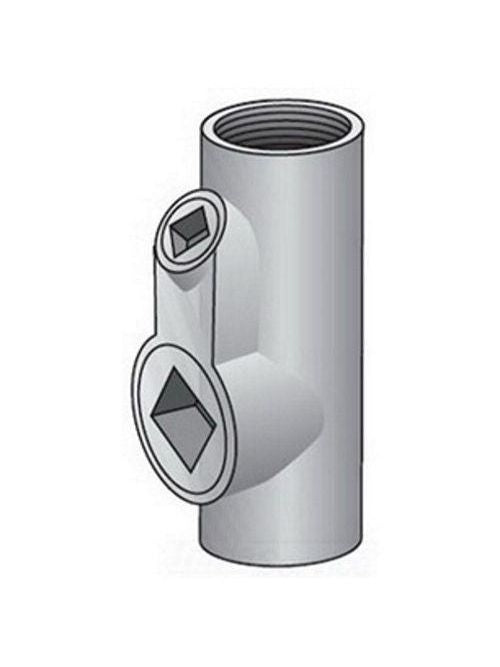

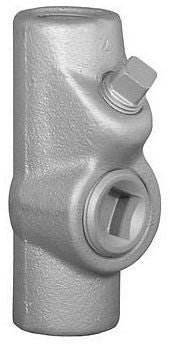

The O-Z/Gedney EYA-50 is an explosionproof conduit seal designed for use with IMC and rigid conduit. This fitting has a female-to-female connection and is suitable for horizontal or vertical applications. It is built to prevent the passage of gases and vapors and is compliant with standards for hazardous locations.

• Support for tapered FNPT connection
• Compatible with IMC and rigid conduit
• Explosionproof and dust-ignition proof

Product Highlights

This conduit seal ensures reliable performance in demanding electrical environments, providing a safe seal to minimize gas and vapor passage.

Product Information

Standard Information

• Manufacturer: O-Z/Gedney
• UPC: 78312613800

Technical Specifications

• Approval: UL 886, CSA C22.2
• Connection Type: Female, Female
• Enclosure: Class I Div 1 and 2 Group A B C D, Class I Zone 1 and 2 Group IIA IIB IIC, Class II Div 1 and 2 Group E F G, Class III
• Material: Epoxy Powder Coated Dichromate Zinc Electroplated Malleable Iron
• Mounting Position: Horizontal/Vertical
• Turning Radius: 1-1/16 Inch
