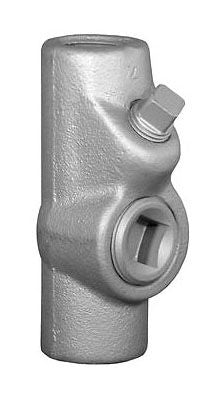

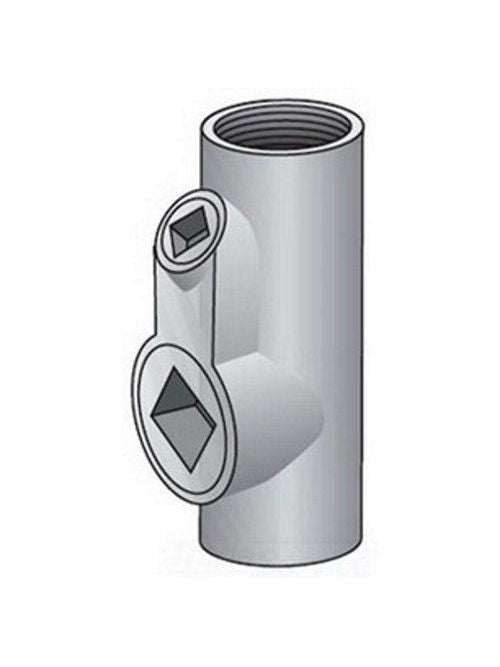

O-Z/Gedney EYA-100 1 Inch Horizontal/Vertical Sealing Fitting

Product Description

The O-Z/Gedney EYA-100 is a one-inch sealing fitting designed for horizontal and vertical conduit applications. This fitting is made of malleable iron and features a zinc electroplated finish. It is suitable for use with rigid conduit or intermediate metal conduit (IMC).

• Connection type: Tapered FNPT
• Overall dimensions: 1-3/8 inches body diameter x 4-5/16 inches overall length
• Turning radius: 1-3/4 inches

Product Highlights

This sealing fitting minimizes the passage of gases and vapors, and it prevents flames from transferring through conduits. It is essential for applications in hazardous locations where safety is paramount.

Product Information

Standard Information

• Brand: O-Z/Gedney
• Manufacturer: OZ-Gedney Co.

Technical Specifications

• Size: 1 Inch
• Material: Malleable Iron
• Finish: Zinc Electroplated
• Connection Type: Female to Female
• Approval: UL 886, CSA C22.2
• Suitable For Use With: IMC/Rigid Conduit
• Turning Radius: 1-3/4 Inches
• Dimensions: 1-3/8 inches diameter x 4-5/16 inches length
