O-Z/Gedney BJ-3540-24 3-1/2 to 4 Inch Size 24 Inch Length Movement Bonding Jumper

Product Description

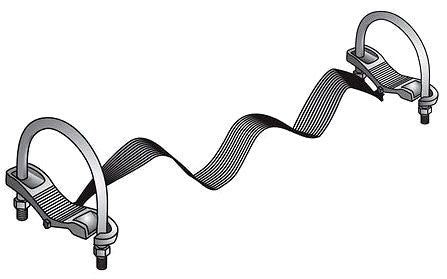

The O-Z/Gedney BJ-3540-24 is a movement bonding jumper suitable for trade sizes three and a half to four inches. This product features clamps made of malleable or ductile iron and is equipped with steel U-bolts and tinned copper braids. With a fully extended braid length of twenty-four inches, this bonding jumper provides reliable grounding and bonding for rigid, EMT, or IMC steel conduits.

• Trade Size: 3-1/2 to 4 inches
• Strap Length: 24 inches
• Material: Hot dip galvanized malleable iron, steel U-bolt, tinned copper braid

Product Highlights

This bonding jumper is ideal for bonding applications in electrical installations, ensuring proper grounding for conduits. It meets UL 467 and CSA C22.2 standards.

Product Information

Standard Information

• Brand: O-Z/Gedney
• Manufacturer: OZ-Gedney Co.

Technical Specifications

• Catalog Number: BJ-3540-24
• Applications: Bonding two rigid, EMT or IMC steel conduits
• Approval: UL 467, CSA C22.2
• Material: Hot dip galvanized malleable/ductile iron (Clamp), hot dip galvanized steel (U-Bolt), tinned copper (Braid)
• Shipping Weight: 2.96 lbs
• Trade Size REF: 4 inches
• Used On: AX8/TX/EX series expansion fitting
