O-Z/Gedney BJ-1520-24 1-1/2 to 2 Inch Bonding Jumper

Product Description

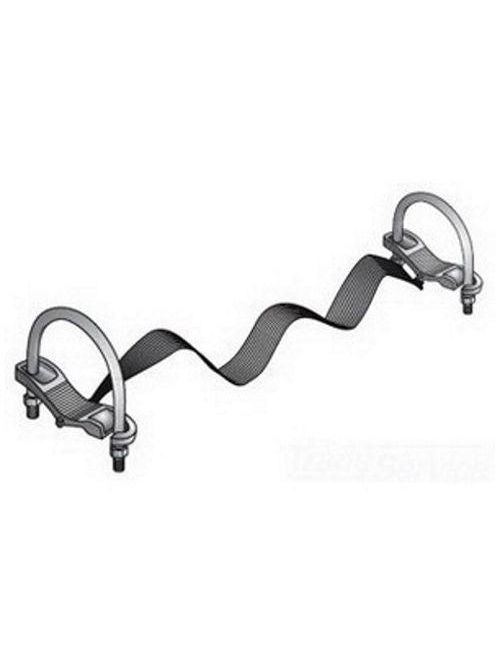

The O-Z/Gedney BJ-1520-24 is a bonding jumper designed for connecting two rigid, EMT or IMC steel conduits. It is suitable for sizes ranging from one and one-half inches to two inches. The clamps are made from malleable or ductile iron, while the U-bolts are constructed of steel. The braid is crafted from tinned copper and provides a length of twenty-four inches when fully extended. This product is hot dip galvanized, ensuring durability and resistance to corrosion.

• Size: 1-1/2 to 2 inches
• Material: Malleable or ductile iron clamps, steel U-bolts, tinned copper braid
• Hot dip galvanized finish for enhanced longevity

Product Highlights

This bonding jumper is important for grounding and provides reliable electrical performance in various installations.

Product Information

Standard Information

• Brand: O-Z/Gedney
• Manufacturer: OZ-Gedney Co.

Technical Specifications

• Type: Type BJ Bonding Jumper
• Size: 1-1/2 - 2 inches
• Product UPC: 78312604024
• Applications: For bonding two rigid, EMT or IMC steel conduits
• Third Party Certification: UL File Number
• Fully Extended Braid Length: 24 inches
• Clamps Material: Malleable or ductile iron
• U-Bolts Material: Steel
