O-Z/Gedney B-150 OZG B-150 1-1/2 Insul Bshg 1-1/2 IN

Product Description

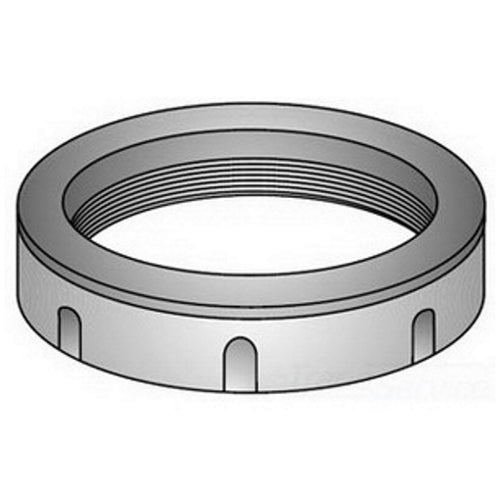

The O-Z/Gedney B-150 insulated bushing is designed for use with threaded rigid conduits and IMC. The bushing is made of malleable iron and has a zinc plated finish, providing durability and resistance to corrosion. It is suitable for temperatures up to one hundred fifty degrees Celsius. This product features an outside diameter of two and a quarter inches and a width of three-quarters of an inch.

• Size: 1-1/2 inches
• Material: Malleable Iron
• Connection Type: Threaded

Product Highlights

This type B insulated bushing protects conductors during installation and prevents wear. It provides a safe voltage gradient between live conductors and ground.

Product Information

Standard Information

• Brand: O-Z/Gedney
• Manufacturer: Emerson Electric

Technical Specifications

• Technical GTIN: 00783126029123
• Type: Type B Insulated Bushing
• Finish: Zinc Plated
• Temperature Rating: 150 degrees Celsius
• Application: For threaded rigid conduit and IMC
• UPC: 783126029123
• Weight: 0.1
• Dimensions: 2-1/4 inches OD x 3/4 inches W
