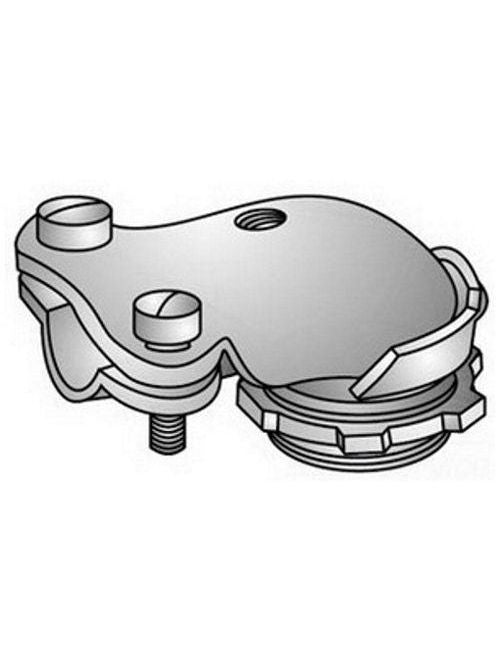

O-Z/Gedney ACV-938 3/8 Inch 90 Degree AC/FMC Connector

Product Description

The O-Z/Gedney ACV-938 is a 3/8 inch 90 degree AC/FMC connector designed for use with armored cable, flexible metal conduit, and non-metallic and service entrance cable. It features a male NPS connection and is made from malleable iron with a zinc electroplated finish. This connector is UL certified and suitable for hazardous locations.

• Size: 3/8 inch (1/2 inch knockout)
• Conductor Range: 23/64 to 21/32 inches
• Thread Length: 7/16 inches

Product Highlights

Ideal for grounding and securing cables to boxes and enclosures, the ACV-938 is equipped with two screws and furnished with locknuts.

Product Information

Standard Information

• Catalog Number: ACV-938
• Brand: O-Z/Gedney
• Manufacturer: OZ-Gedney Co.

Technical Specifications

• Type: Type ACV 90 DEG Center Stopped 2-Screw Clamp Connector
• Material: Malleable Iron
• Finish: Zinc Electroplated
• Application: For Armored Cable, Flexible Metal Conduit, Non-Metallic and Service Entrance Cable
• Connection: Male NPS Hub X Set Screw
• Standards: UL 514B, NEC 501-4(b), CSA 9795
• Dimensions: 1-5/16 inches long x 13/16 inches high
• Country of Origin: Mexico
