O-Z/Gedney ABLG-3122 OZG ABLG-3122 3 IN INSUL GNDG BSHG

Product Description

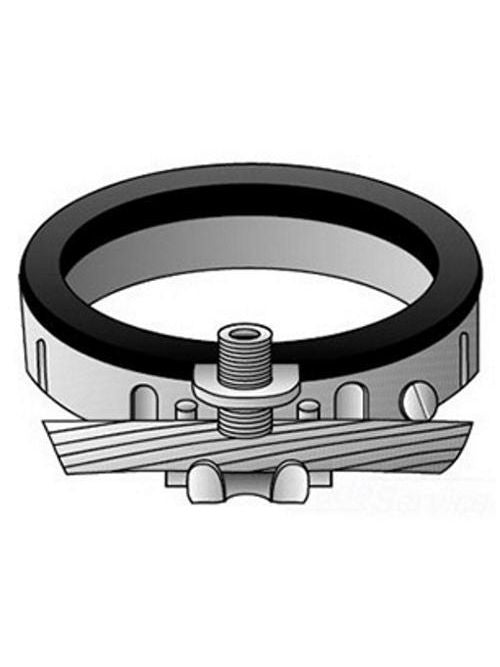

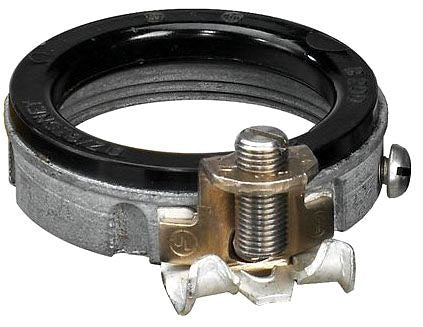

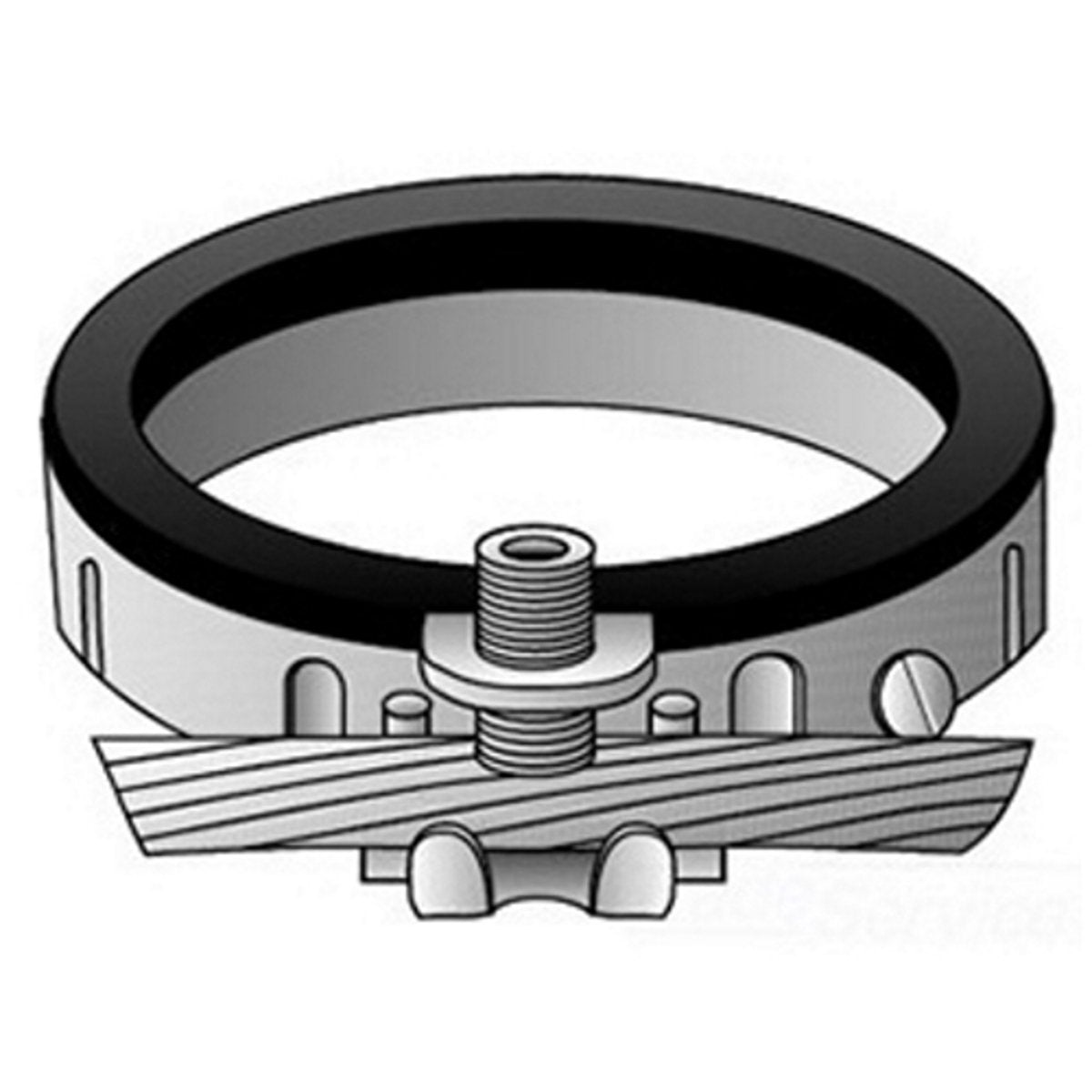

The O-Z/Gedney ABLG-3122 is a three-inch insulated grounding bushing. It features a copper-free aluminum body securely held together with stainless steel screws. The set-screw connection ensures reliability under high temperatures up to one hundred fifty degrees Celsius. It has an outside diameter of four inches and a width of one inch, allowing it to accommodate grounding wires ranging from eight to two aught AWG. This product is ideal for threaded rigid conduit and intermediate metal conduit (IMC).

• Insulated bushing protects conductors from abrasion.
• Voltage gradient management for electrical stress.
• Spring action design ensures strong grounding connection.

Product Highlights

Designed for effective grounding and protection of electrical conduits, this bushing allows for easy insertion of grounding conductors. Its specifications meet strict UL and CSA standards, affirming its reliability in various applications.

Product Information

Standard Information

• Brand: O-Z/Gedney
• Manufacturer: O-Z/Gedney Co.

Technical Specifications

• Catalog Number: ABLG-3122
• Size: 3 inches
• Connection: Set-Screw
• Material: Copper-Free Aluminum Body, Stainless Steel Screws
• Temperature Rating: 150 degrees Celsius
• Application: For Threaded Rigid Conduit And IMC
• UPC: 78312601141
• GTIN: 00783126011418
