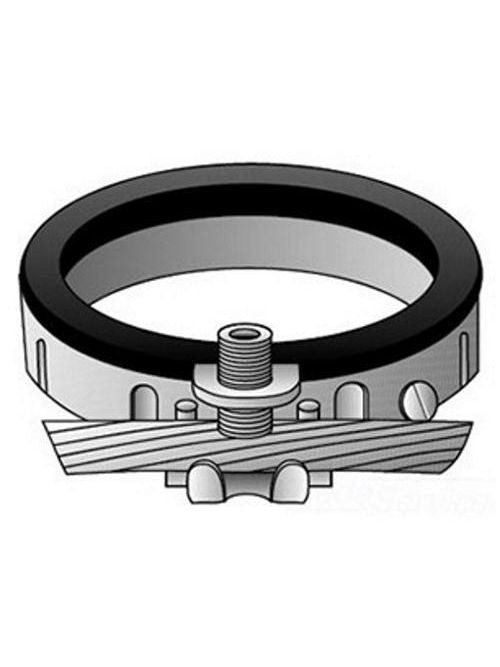

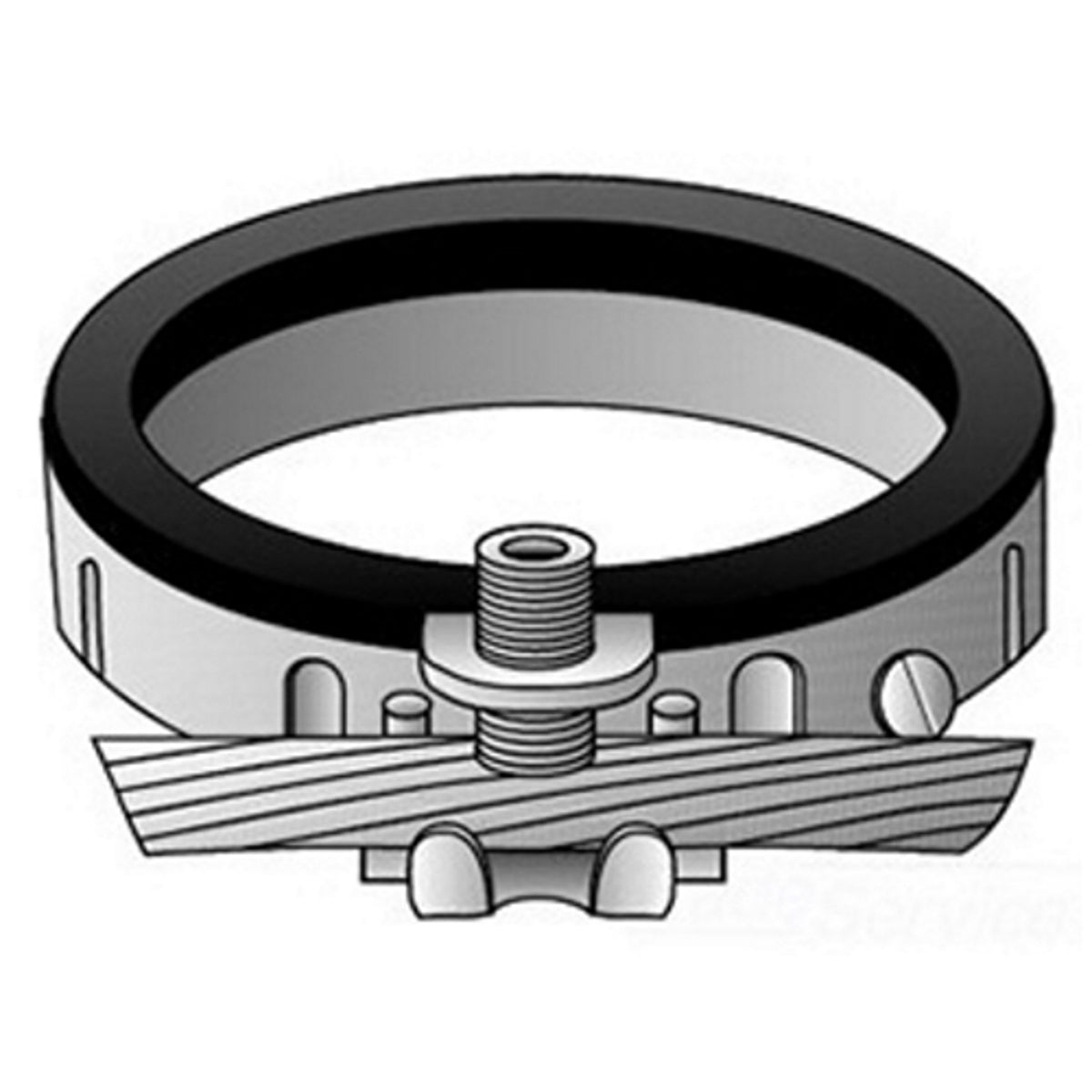

O-Z/Gedney ABLG-2022 Insulated Grounding Bushing 2 IN

Product Description

The O-Z/Gedney ABLG-2022 is a two-inch insulated grounding bushing. Its copper-free aluminum body ensures durability, while stainless steel screws facilitate reliable connections. This product is designed for use with threaded rigid conduit and intermediate metal conduit (IMC).

• Size: 2 inches
• Temperature Rating: 150 degrees Celsius
• Connection Type: Set-Screw

Product Highlights

This grounding bushing provides a solid grounding option for various installations. It protects insulated conductors from abrasion and maintains a strong electrical grounding connection.

Product Information

Standard Information

• Manufacturer: O-Z/Gedney
• Material: Copper-Free Aluminum Body

Technical Specifications

• Catalog Number: ABLG-2022
• Application: For threaded rigid conduit and IMC
• Connection: Set-Screw
• Outside Diameter: 2-3/4 inches
• Width: 7/8 inches
• Grounding Wire Capacity: 8 - 2/0 AWG
• Turning Radius: 2-1/4 inches
• Temperature Rating: 150 degrees Celsius
• Country of Origin: Mexico
