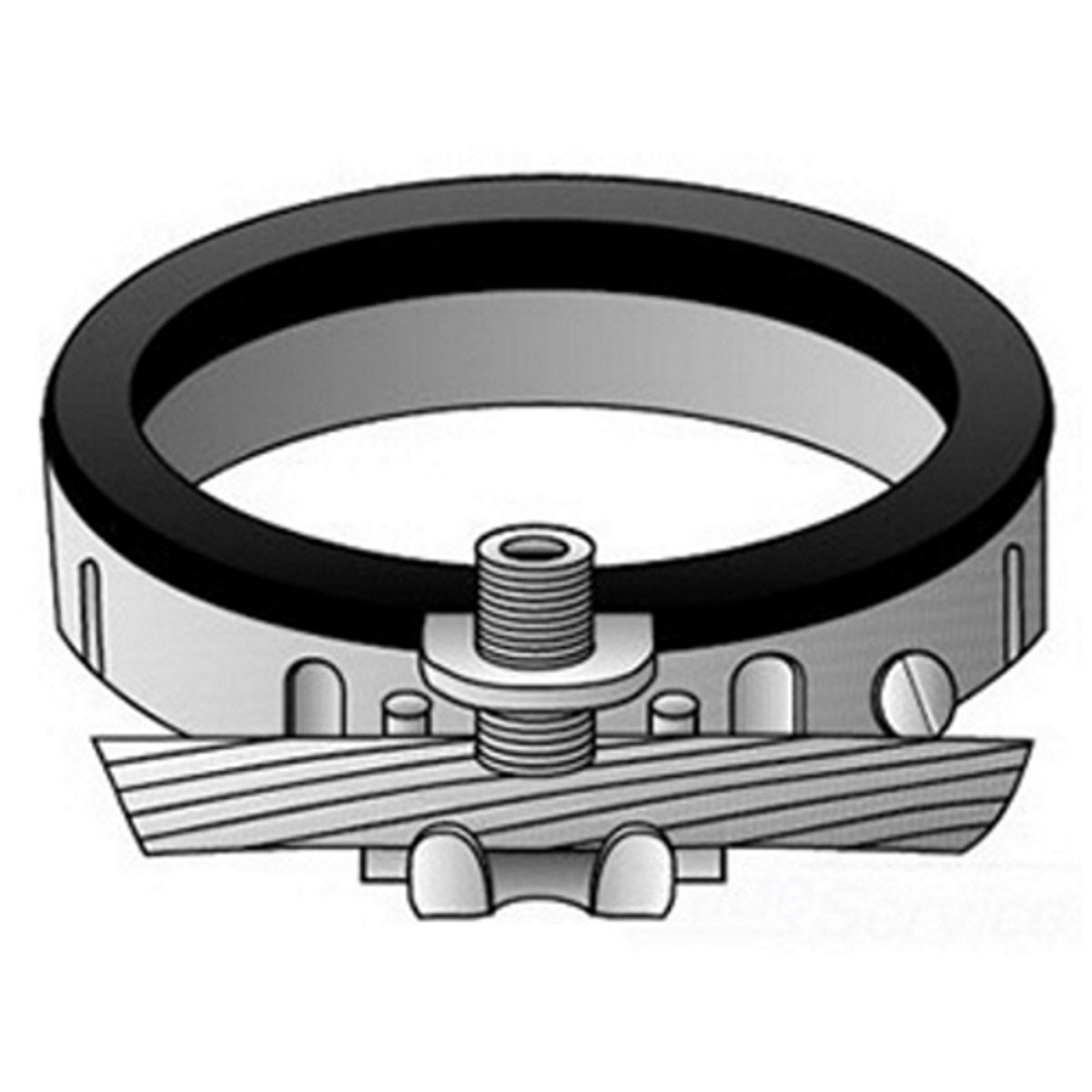

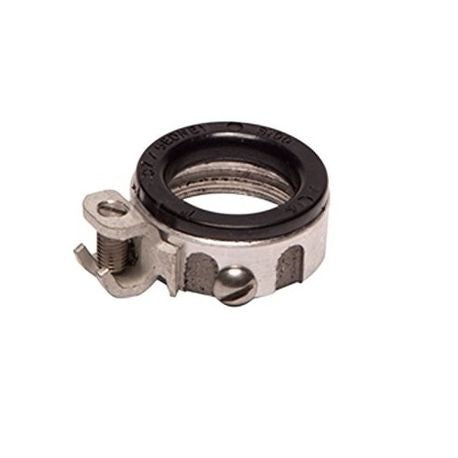

O-Z/Gedney ABLG-2004 OZG ABLG-2004 2 IN Insulated Grounding Bushing Replacement MPN

Product Description

O-Z/Gedney ABLG-2004 is a two-inch insulated grounding bushing designed for electrical installations. It features a copper-free aluminum body and stainless steel screws. This product is essential for creating a secure ground connection in threaded rigid conduit and intermediate metal conduit (IMC).

• Size: Two inches
• Material: Copper-free aluminum
• Connection Type: Set-screw

Product Highlights

The O-Z/Gedney ABLG-2004 provides effective protection for insulated conductors. It reduces abrasion during wire installation and maintains a safe environment for electrical operations. This bushing allows for the grounding of conduit through its integrated lug.

Product Information

Standard Information

• Catalog Number: ABLG-2004
• Manufacturer: O-Z/Gedney

Technical Specifications

• Size: two inches
• Material: copper-free aluminum
• Temperature Rating: 150 degrees Celsius
• Connection Type: set-screw
• Applications: for threaded rigid conduit and IMC
• Outside Diameter: 2-3/4 inches
• Width: 7/8 inches
• Grounding Wire Size: 14 - 4 AWG
