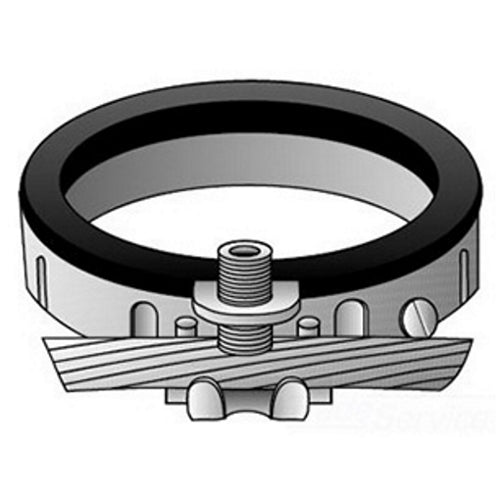

O-Z/Gedney ABLG-1504 1-1/2 IN Insulated Grounding Bushing

Product Description

The O-Z/Gedney ABLG-1504 is a 1-1/2 inch insulated grounding bushing designed specifically for threaded rigid conduit and intermediate metal conduit (IMC). This component features a copper-free aluminum body and stainless steel screws for durability. The connection is made using a set-screw, ensuring a reliable bond. It is rated to handle temperatures up to one hundred fifty degrees Celsius and has an outside diameter of two and one-fourth inches, with a width of three-fourths of an inch.

• Material: Copper-Free Aluminum Body
• Temperature Rating: 150 Degrees Celsius
• Connection Type: Set-Screw

Product Highlights

This grounding bushing provides effective grounding solutions for various electrical installations while maintaining compliance with safety standards.

Product Information

Standard Information

• Manufacturer: OZ-Gedney
• Part Number: ABLG-1504

Technical Specifications

• Material: Copper-Free Aluminum Body; Stainless Steel Screws
• Temperature Rating: 150 Degrees Celsius
• Connection: Set-Screw
• Application: For Threaded Rigid Conduit and IMC
• Weight: 0.1 lbs
• Outside Diameter: 2-1/4 inches
• Width: 3/4 inch
• Grounding Wire Size: 14 - 4 AWG
• Turning Radius: 1-5/8 inches
