O-Z/Gedney ABLG-1122 OZG ABLG-1122 1 IN Insulated Grounding Bushing

Product Description

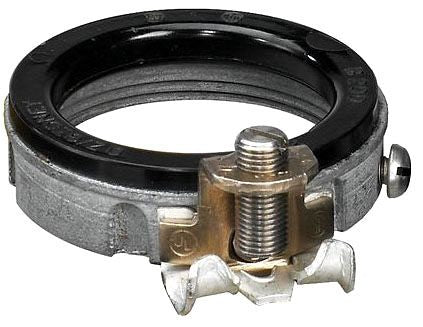

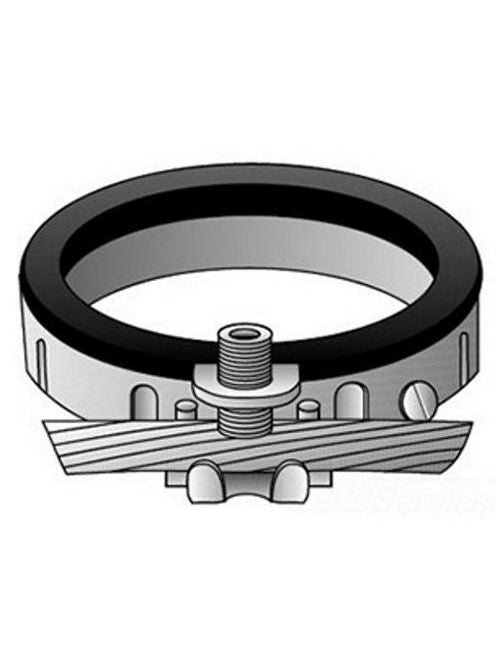

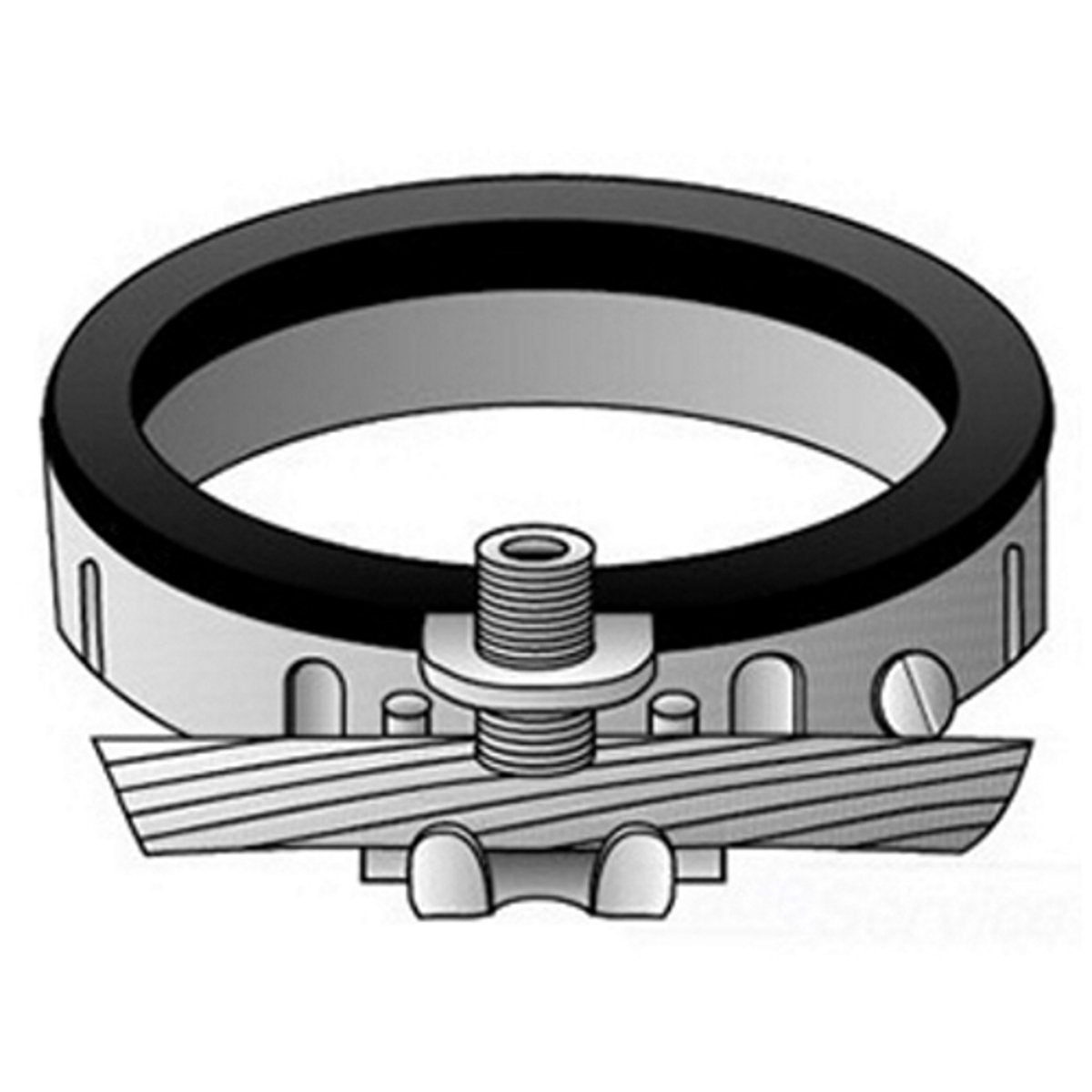

The O-Z/Gedney ABLG-1122 is a 1 inch insulated grounding bushing that provides reliable grounding solutions. This product features a copper-free aluminum body and stainless steel screws. The connection is made via a set-screw method, ensuring strong and secure attachment.

• Size: 1 inch
• Temperature rating: 150 degrees Celsius
• Compatible with 8 to 2/0 AWG grounding wire

Product Highlights

This grounding bushing is designed for threaded rigid conduit and IMC applications. It is suited for installations where reliable grounding is necessary.

Product Information

Standard Information

• Brand: O-Z/Gedney
• Manufacturer: OZ-Gedney Co.

Technical Specifications

• Catalog Number: ABLG-1122
• Material: Copper-free aluminum body, stainless steel screws
• Application: For threaded rigid conduit and IMC
• Connection: Set-screw
• Temperature Rating: 150 degrees Celsius
• Dimensions: 1-5/8 inches outside diameter, 3/4 inch width
• Compatibility: 8 to 2/0 AWG grounding wire
• Special Features: Phenolic insulation rated at 150 degrees Celsius
