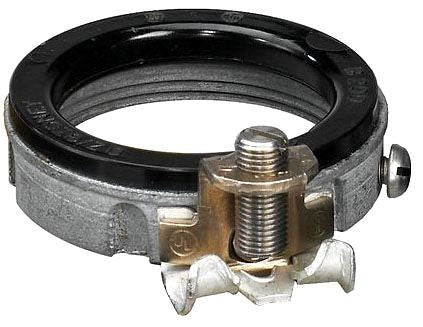

O-Z/Gedney ABLG-0722 3/4 IN Insulated Grounding Bushing

Product Description

The O-Z/Gedney ABLG-0722 is a 3/4 inch insulated grounding bushing designed for threaded rigid conduit and IMC applications. It features a copper-free aluminum body with stainless steel screws. The connection type is set-screw, and the unit can accommodate grounding wires from eight to two aught AWG. Its outer diameter is one and three-eighths inches with a width of five-eighths inches. This product has a temperature rating of one hundred fifty degrees Celsius.

• Type ABLG Insulated Grounding Bushing
• Rated for use with threaded rigid conduit
• UL and CSA certified standards compliance

Product Highlights

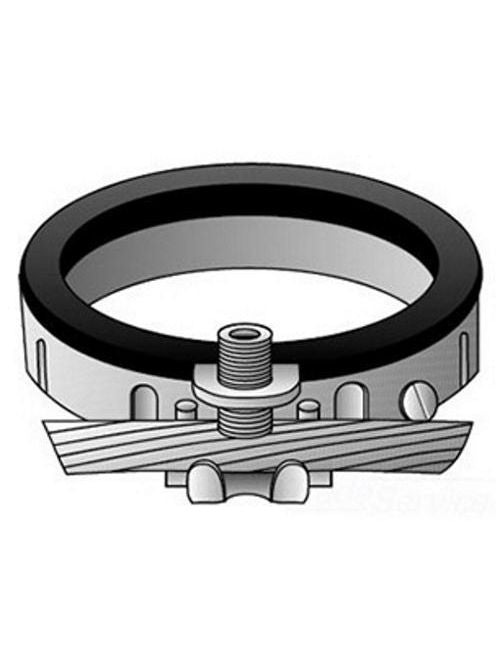

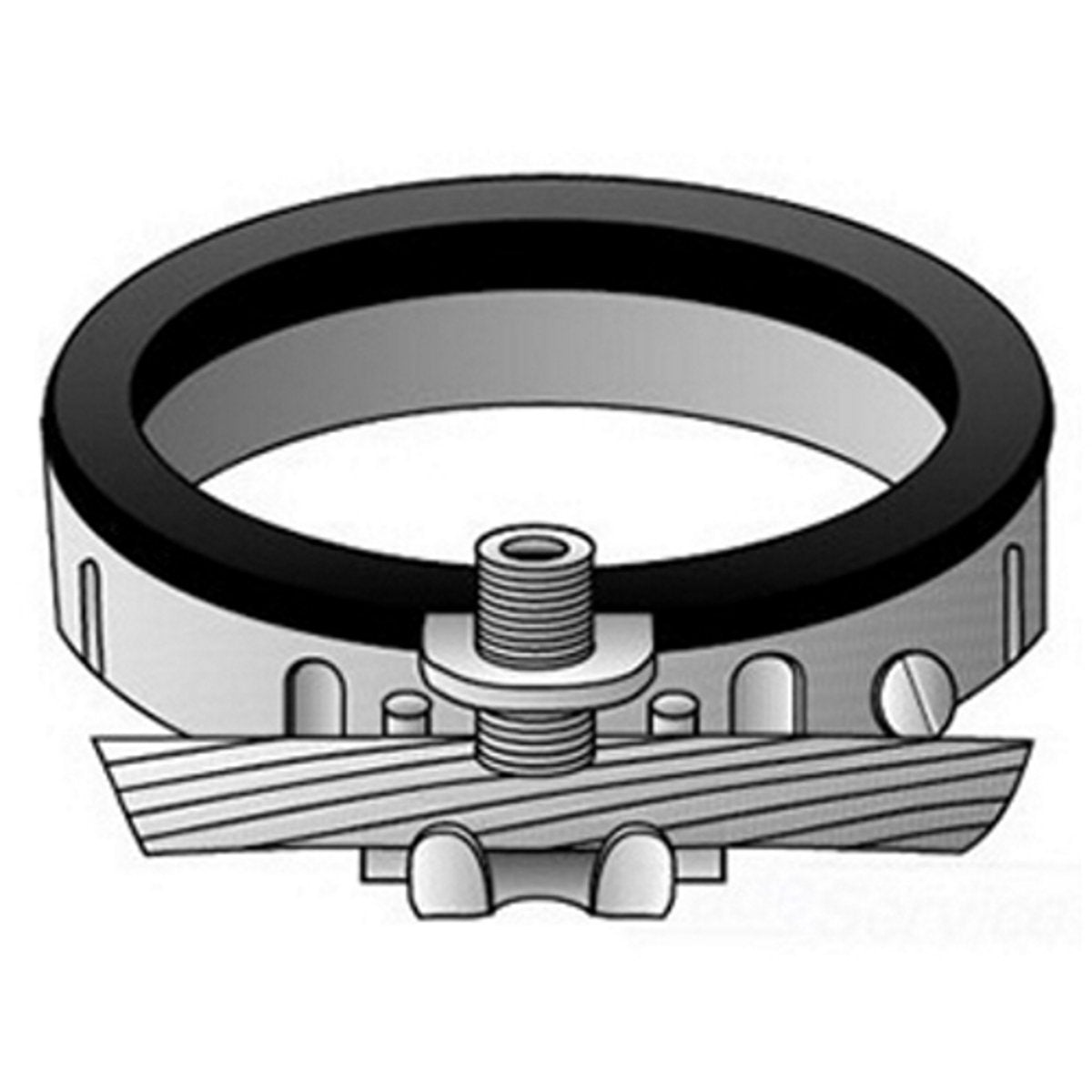

This grounding bushing provides a grounding lug, protecting insulated conductors from abrasion during installation. It maintains positive ground continuity and aligns securely with a set screw mechanism.

Product Information

Standard Information

• Manufacturer: O-Z/Gedney
• Catalog Number: ABLG-0722

Technical Specifications

• Material: Aluminum
• Connection Type: Set-Screw
• Temperature Rating: 150 degrees Celsius
• Applications: For threaded rigid conduit and IMC
• UPC: 783126011234
• GTIN: 00783126011234
• Outside Diameter: 1.38 inches
• Width: 0.625 inches
