O-Z/Gedney ABG-0325 Copper Alloy Ground Connector

Product Description

The O-Z/Gedney ABG-0325 is a copper alloy ground connector designed for effective grounding in electrical systems. This type ABG specification grade connector is suitable for connecting conductors sized two over zero AWG to two hundred fifty KCMIL. The product features a length of two inches and can accommodate ground rods sized five-eighths or three-quarters inches, as well as ground pipe sized three-eighths inches.

• Conductor Size: 2/0 AWG - 250 KCMIL
• Length: 2 inches
• Height: 1-7/8 inches; Width: 2-5/8 inches

Product Highlights

This connector is ideal for establishing a parallel or right-angle cable connection to pipes or rods. The robust copper alloy ensures durability and reliable performance in demanding environments.

Product Information

Standard Information

• Catalog Number: ABG-0325
• Manufacturer: O-Z/Gedney

Technical Specifications

• Type: Type ABG Specification Grade Ground Connector

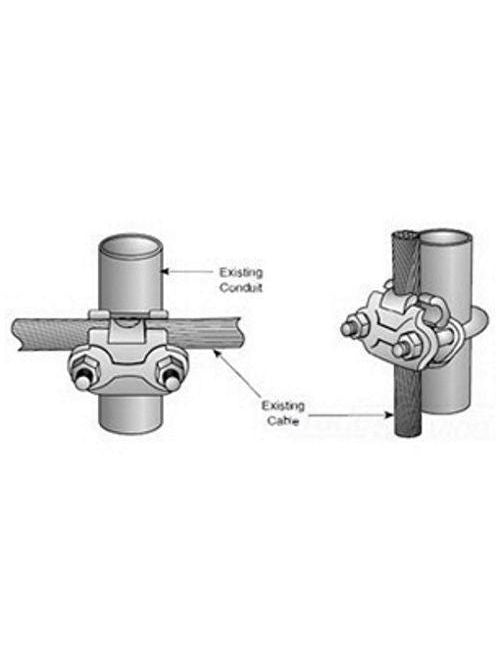

• Applications: For cable connections parallel or at right angles to pipe or rod
• Ground Rod Size: 5/8 inches or 3/4 inches
• Ground Pipe Size: 3/8 inches
• UPC: 783126008128
