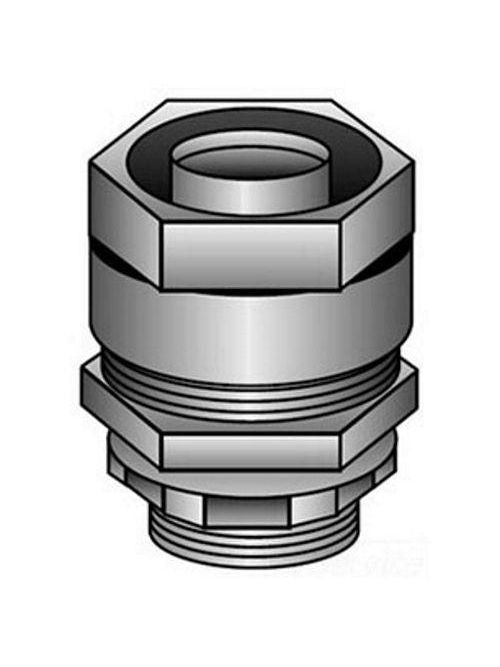

O-Z/Gedney 4Q-100 1 Inch Straight Liquidtight Flexible Conduit Connector

Product Description

The O-Z/Gedney 4Q-100 is a one-inch straight liquidtight flexible conduit connector. This connector features a compression x tapered MNPT hub connection, allowing it to secure and seal liquidtight flexible metal conduit. The body and nut are made of malleable iron, while the ferrule is steel, which ensures durability. It has a zinc electroplated finish to enhance corrosion resistance.

• Rated for NEMA type 4, suitable for wet locations.
• Compact design supports tight bends without risk of pullout.
• Includes locknut and knockout sealing ring for secure installation.

Product Highlights

This connector provides a reliable way to join conduits in environments exposed to moisture and contaminants. It is primarily used with liquidtight flexible metal conduit in various electrical applications.

Product Information

Standard Information

• Brand: O-Z/Gedney
• Manufacturer: Emerson Electric

Technical Specifications

• MPN: 4Q-100
• Trade Size: 1 Inch
• Material: Malleable Iron Body and Nut, Steel Ferrule
• Connection Type: Compression x Tapered MNPT Hub
• Finish: Zinc Electroplated
• NEMA Rating: 4
• Dimensions: 1-7/8 inches Height x 1-3/4 inches Width
• Applications: Used with liquidtight flexible metal conduit
