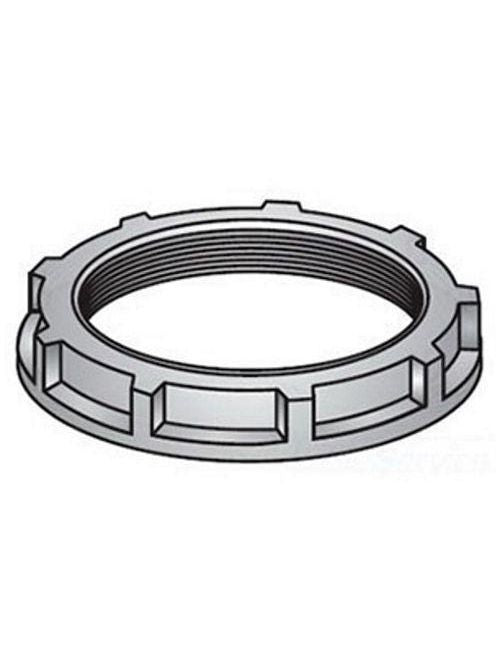

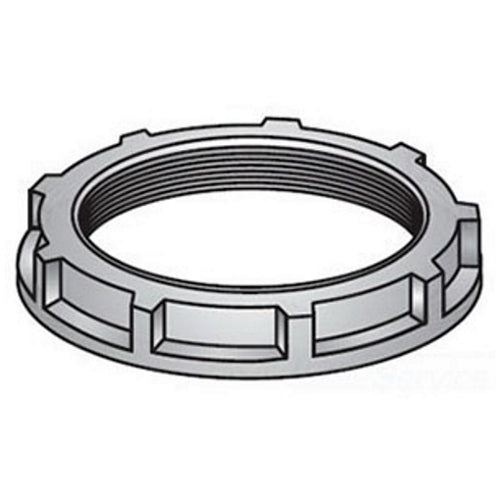

O-Z/Gedney 2-100 1 Inch Conduit Bushing

Product Description

The O-Z/Gedney 2-100 is a one inch conduit bushing designed for use in electrical installations. Made from malleable iron and finished with zinc plating, this bushing is compatible with threaded rigid conduits. It features a threaded NPS connection, allowing for secure installation. This product is certified by UL and CSA bodies, ensuring high safety and quality standards.

• 1 inch trade size
• Zinc plated finish
• UL and CSA certified for reliability

Product Highlights

This bushing assists in protecting wires and cables during entry and exit points of conduits, ideal for protecting electrical installations.

Product Information

Standard Information

• Brand: O-Z/Gedney
• Manufacturer: Emerson Electric

Technical Specifications

• Type: Type 2 Non-Grounding Conduit Bushing
• Material: Malleable Iron
• Finish: Zinc Plated
• Connection: Threaded NPS
• Dimensions: 1-9/16 inches outside diameter, 1/2 inch width
• Applications: For threaded rigid conduit and IMC
• Certifications: UL File Number E-11853, CSA 009795
