nVent WF25LP HOFFMAN WeatherFlo Vented Enclosure 41 in L x 24 in W x 12 in D

Product Description

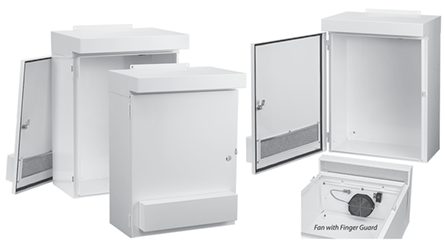

nVent HOFFMAN WeatherFlo Vented Enclosure is designed for managing heat in outdoor applications. The model WF25LP measures forty-one inches in length, twenty-four inches in width, and twelve inches in depth. Its NEMA 3R/IP32 rating makes it suitable for various outdoor environments.

• Active cooling with factory-installed fan
• Hinged/lift-off cover for easy access
• Locking mechanism for added security

Product Highlights

This enclosure is ideal for cooling drives or other high-heat producing equipment in outdoor installations.

Product Information

Standard Information

• Manufacturer: nVent
• MPN: WF25LP

Technical Specifications

• Application: For cooling drives or other high heat producing equipment in outdoor applications
• Color: White
• Cover Type: Hinged/Lift-Off
• Depth: 12 in
• Electrical Ratings: 115 VAC, 160 cfm, 25 hp
• Finish: Polyester Powder Painted
• Length: 41 in
• Lock: Quarter Turn Latch
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 3R/IP32
• Panel Size: 21 in W x 33 in H
• Series: A3RD
• Standards/Approvals: cUL Listed, CSA C22.2 File No. 94, IEC 60529, UL 508A File No. E61997
• Type: Vented
• Width: 24 in
